Part Number # CR20IP2
SKU # 2354236
CR20IP2

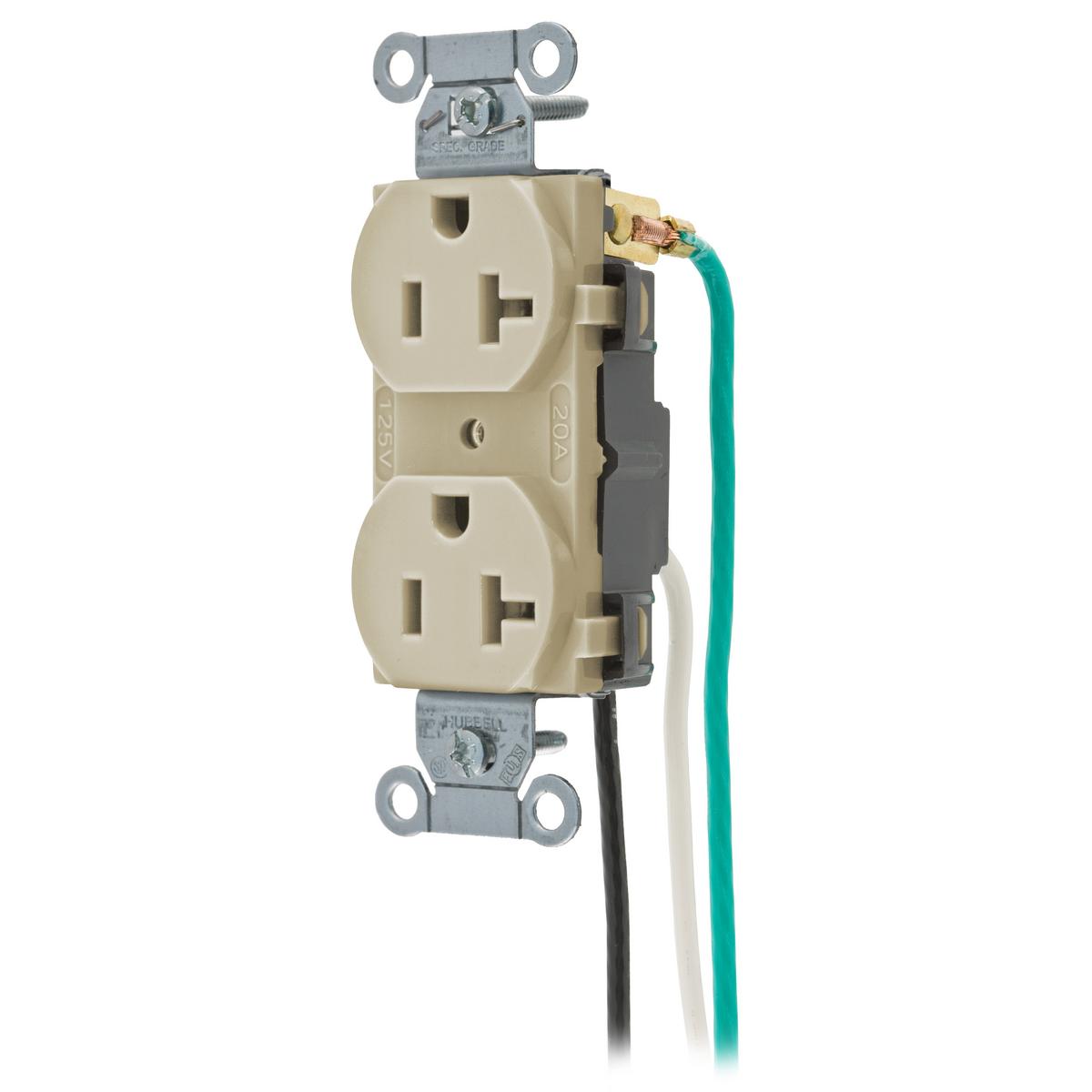

Hubbell CR20IP2 Straight Blade Receptacle
Part Number # CR20IP2
SKU # 2354236
Hubbell CR20IP2 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | CR20IP2 |
| SKU #: | 2354236 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 1.32 x 0.83 x 3.28 in, 3.28 in H x 1.32 in W x 1.09 in D |
| Horsepower: | 1, 1 hp |
| NEMA Rating: | 5-20R, NEMA 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Stranded Wire Lead |
| Type: | 1-Phase Duplex Self-Grounding Standard Traditional Screw Mount, Duplex Self-Grounding Standard Traditional |
| Country of origin: | CN |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585146249 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell CR20IP2 Straight Blade Receptacle
Brand: Hubbell
Part Number: CR20IP2
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Self-Grounding Standard Traditional Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial Grade, -40 to 75 deg C, Stranded Wire Lead Terminal, Nylon, Ivory, 1.32 x 0.83 x 3.28 in
Additional Description: HUBW-CR20IP2 CR20I W/ STRANDED 8" LEADS
Catalog Description: Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Ivory, Single Pack, Pre-Wired 8" Stranded Leads.
CR20IP2 Application
Indoor Dry EnvironmentCR20IP2 Item Features
- Fully insulated design with 8 in stranded wire leads
- Smooth face
- Triple wipe contacts
CR20IP2 Standards
CSA C22.2 No. 42|Federal Specification WC596|NEMA WD1/WD5/WD6|UL 498 File No. E2186|CSA Certified|UL94 V-2 Flammability RatingSKU #2354236Part Number #CR20IP2UNSPSC39121406UPC00783585146249
Image provided may only be a representation of final product and may include optional equipment
