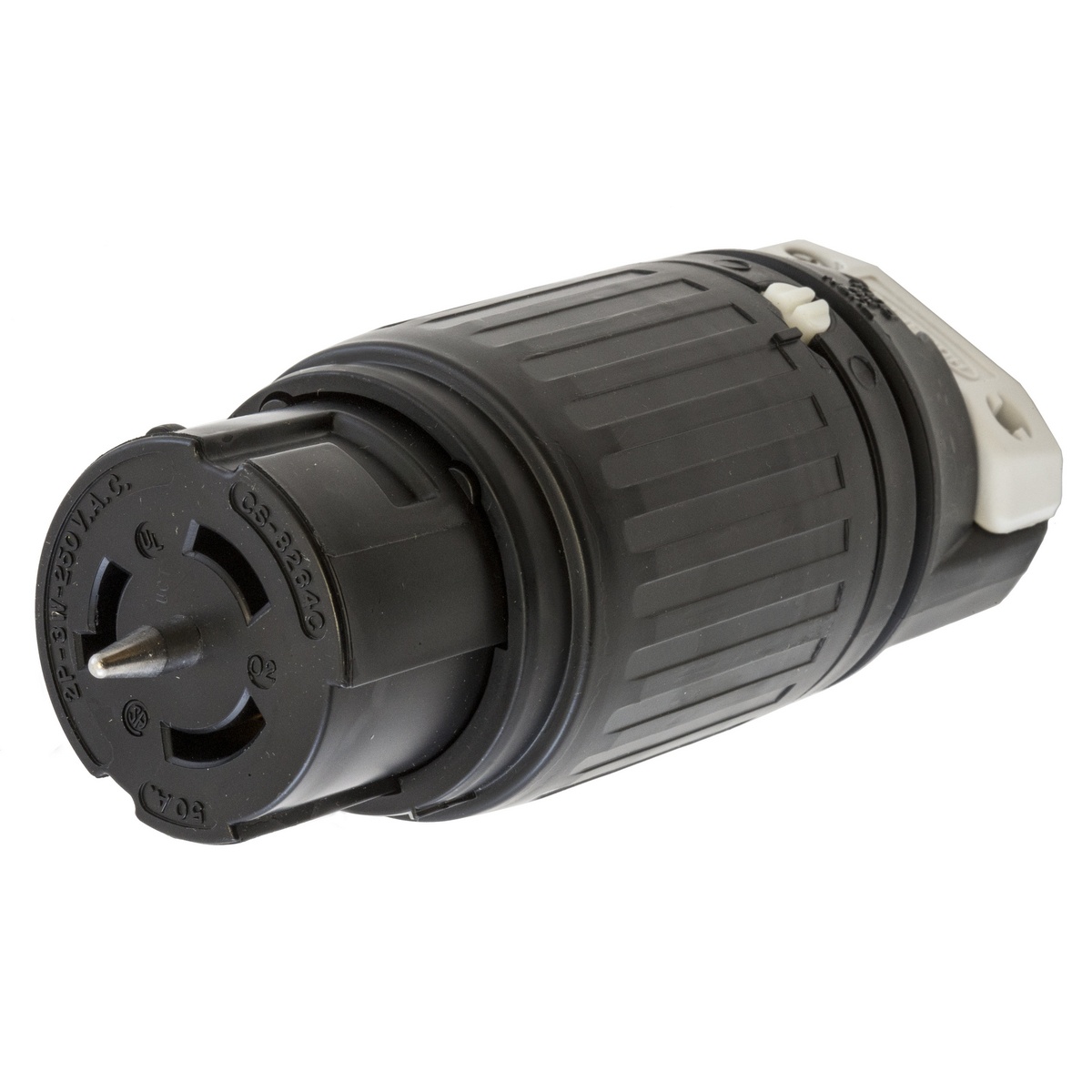

Hubbell CS8264C Locking Connector
Part Number # CS8264C
SKU # 971456
$172.86 / Each
Typical price:$224.00 / Each
Hubbell CS8264C Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | CS8264C |
| SKU #: | 971456 |
| Amperage Rating: | 50, 50 A |
| Cord Diameter: | 3/4 to 1-1/8, 3/4 to 1-1/8 in |
| Dimensions: | 6.34 in L x 2.59 in W, 6.5 x 2.56 x 2.5, 6.5 x 2.56 x 2.5 in |
| Enclosure: | IP20 |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | CS Series |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | Grounding Heavy Duty, Grounding Heavy Duty Cord Mount |
| Color: | Black/White |
| Country of origin: | PR, US |
| Material: | Composite, Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585828466 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$172.86 / Each
Typical price:$224.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems, CS8264C, Locking Connector, Grounding Heavy Duty Cord Mount, Series: CS Series, 250 V AC, 50 A, 2 Pole, 3 Wires, Industrial Grade, IP20 Enclosure, 3/4 to 1-1/8 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 6.5 x 2.56 x 2.5 in Dimensions
CS8264C Item Features
- Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
- Heavy duty two-piece external cord clamp provides maximum strain relief
- Thermoplastic polyester interior provides heat resistance and impact strength
- Oversized contacts minimize operating temperature
- https://youtu.be/1DnPJu3QNw0
CS8264C Standards
UL 498|CSA C22.2 No. 42 Certified|RoHS CompliantSKU #971456Part Number #CS8264CUNSPSC39121421UPC00783585828466
