Part Number # CS8364C
SKU # 112400
Image provided may only be a representation of
final product and may include optional equipment
CS8364C

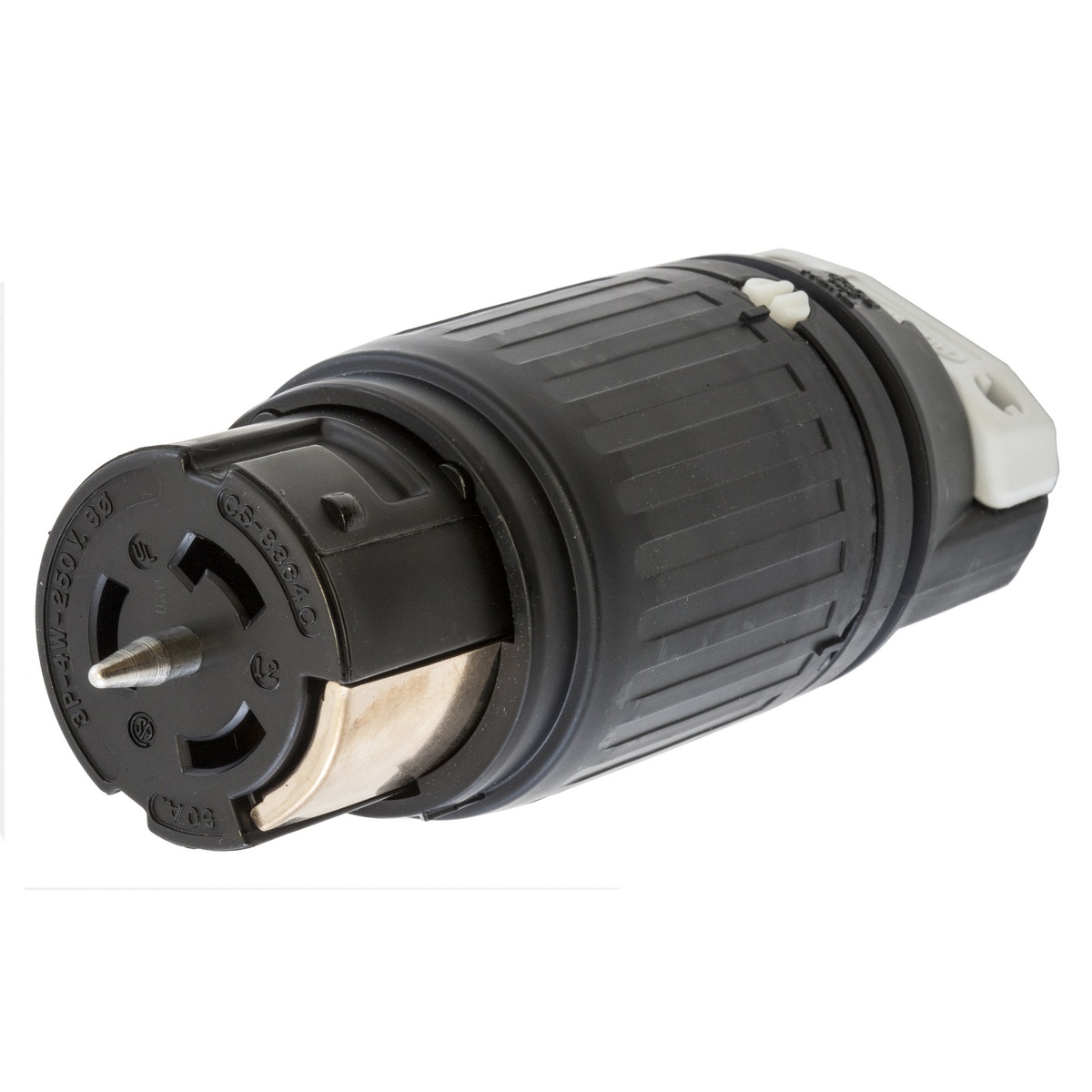

Hubbell CS8364C Locking Connector
Part Number # CS8364C
SKU # 112400
Hubbell CS8364C Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | CS8364C |
| SKU #: | 112400 |
| Amperage Rating: | 50, 50 A |
| Cord Diameter: | 3/4 to 1-1/8, 3/4 to 1-1/8 in |
| Dimensions: | 6.34 in L x 2.59 in W, 6.5 x 2.56 x 2.5 in |
| Enclosure: | IP20 |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | Grounding Heavy Duty, Grounding Heavy Duty Cord Mount |
| Country of origin: | US |
| Material: | Composite, Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585829104 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell CS8364C Locking Connector
Brand: Hubbell
Part Number: CS8364C
Wiring Device-Kellems Twist-Lock Insulgrip Locking Connector, Grounding Heavy Duty Cord Mount, 250 VAC, 50 A, 3 Pole, 4 Wires, Industrial Grade, IP20 Enclosure, 3/4 to 1-1/8 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 6.5 x 2.56 x 2.5 in
Additional Description: HUBW-CS8364C LOCKING CONN, 50A 3PH 250V, 3P4W
Catalog Description: Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 50A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
CS8364C Item Features
- Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
- Heavy duty two-piece external cord clamp provides maximum strain relief
- Thermoplastic polyester interior provides heat resistance and impact strength
- Oversized contacts minimize operating temperature
- https://youtu.be/1DnPJu3QNw0
CS8364C Standards
UL 498|UL 94-V-0 Flammability Rating|CSA C22.2 No. 42SKU #112400Part Number #CS8364CUNSPSC39121421UPC00783585829104
