Brand: Hubbell
CS8365C

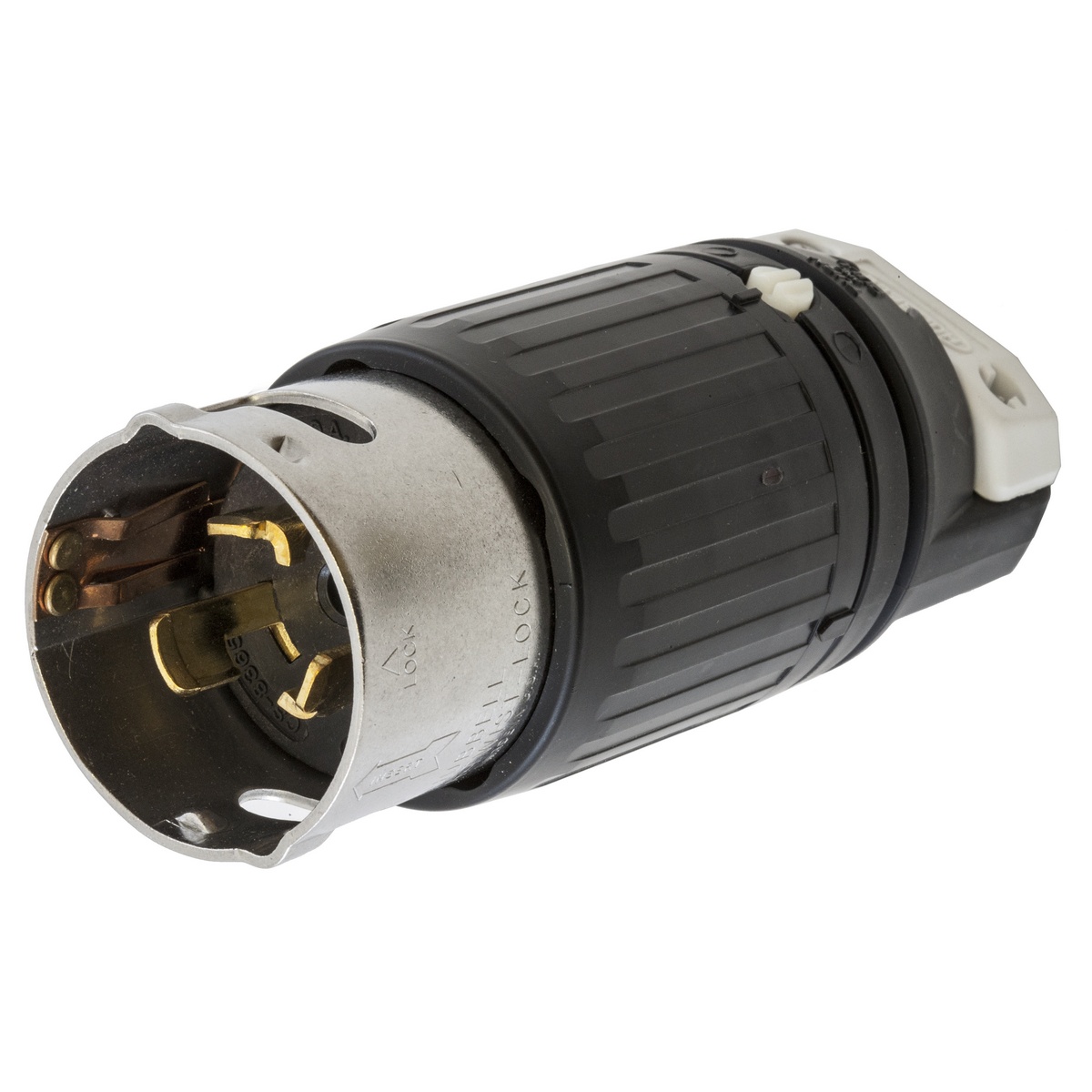

Hubbell CS8365C Locking Plug
Part Number # CS8365C
SKU # 18437
$138.93 / Each
Typical price:$180.00 / Each
Hubbell CS8365C Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | CS8365C |
| SKU #: | 18437 |
| Amperage Rating: | 50, 50 A |
| Cord Diameter: | 3/4 to 1-1/8, 3/4 to 1-1/8 in |
| Dimensions: | 2.563 in Dia x 6.375 in L, 6.37 x 2.56 x 2.56 in |
| Enclosure: | IP20 |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 3-Phase Grounding Cord Mount, Grounding |
| Color: | Black, Black/White |
| Country of origin: | PR, US |
| Material: | Composite, Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585829128 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$138.93 / Each
Typical price:$180.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems Twist-Lock Insulgrip Locking Plug, 3-Phase Grounding Cord Mount, 250 V AC, 50 A, 3 Pole, 4 Wires, Industrial Grade, IP20 Enclosure, 3/4 to 1-1/8 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 6.37 x 2.56 x 2.56 in
CS8365C Application
Power Connection ApplicationsCS8365C Item Features
- Super tough nylon housing offers better impact qualities
- Stainless steel shroud protects contacts and prevents mismating
- Heavy duty two-piece external cord clamp provides maximum strain relief
- Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
- Thermoplastic polyester interior provides heat resistance and impact strength
- https://youtu.be/1DnPJu3QNw0
CS8365C Standards
UL 498|UL 94-V-0 Flammability Rating|CSA C22.2 No. 42 Certified|RoHS CompliantSKU #18437Part Number #CS8365CUNSPSC39121402UPC00783585829128
