Part Number # CS8369L
SKU # 2411466
CS8369L

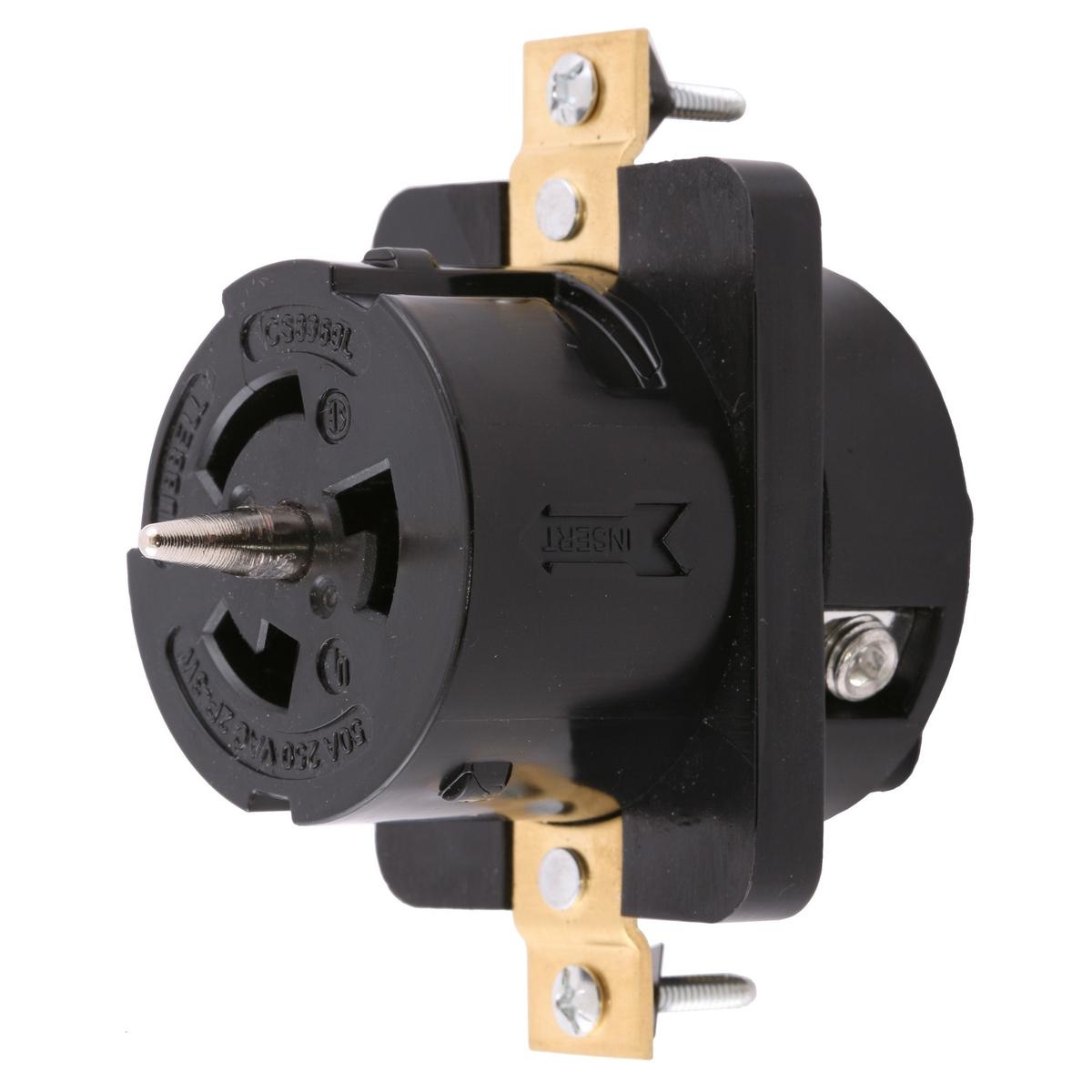

Hubbell CS8369L Wiring Device-Kellems Twist-Lock Locking Receptacle
Part Number # CS8369L
SKU # 2411466
Hubbell CS8369L Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | CS8369L |
| SKU #: | 2411466 |
| Amperage Rating: | 50 A |
| Cord Diameter: | 0.65 to 1.25 in |
| Dimensions: | 3.3 in L x 2.1 in W x 2.4 in H, 3.3 x 2.1 x 2.4 in |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Pressure Screw, Screw |
| Type: | 3-Phase Grounding Heavy Duty Insulated Low Cost Version Single Standard, Heavy Duty Insulated Standard Single Cord Mount |
| Country of origin: | CN |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585320755 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell CS8369L Wiring Device-Kellems Twist-Lock Locking Receptacle
Brand: Hubbell
Part Number: CS8369L
Wiring Device-Kellems Twist-Lock® Locking Receptacle, Heavy Duty Insulated Standard Single, 250 VAC, 50 A, 3 Pole, 4 Wires, Industrial Grade, -40 to 75 deg C, Screw Terminal, Composite, Black
Additional Description: HUBW-CS8369L LKG RCPT, 50A 3P250V, 3P4W, LC
Catalog Description: Hubbell Wiring Device Kellems, Locking Devices, Twist-Lock, Economy,Receptacle, 50A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black
CS8369L Application
Indoor Dry EnvironmentCS8369L Item Features
- Cord mounted
- 6 AWG wire
- Non-NEMA rating
CS8369L Standards
RoHS Compliant|UL 498 Guide No. RTRT|CSA C22.2 No. 182.2 Guide No. 365E1|NEMA WD1/WD6|UL94 V-2 Flammability RatingSKU #2411466Part Number #CS8369LUNSPSC39121421UPC00783585320755
Image provided may only be a representation of final product and may include optional equipment
