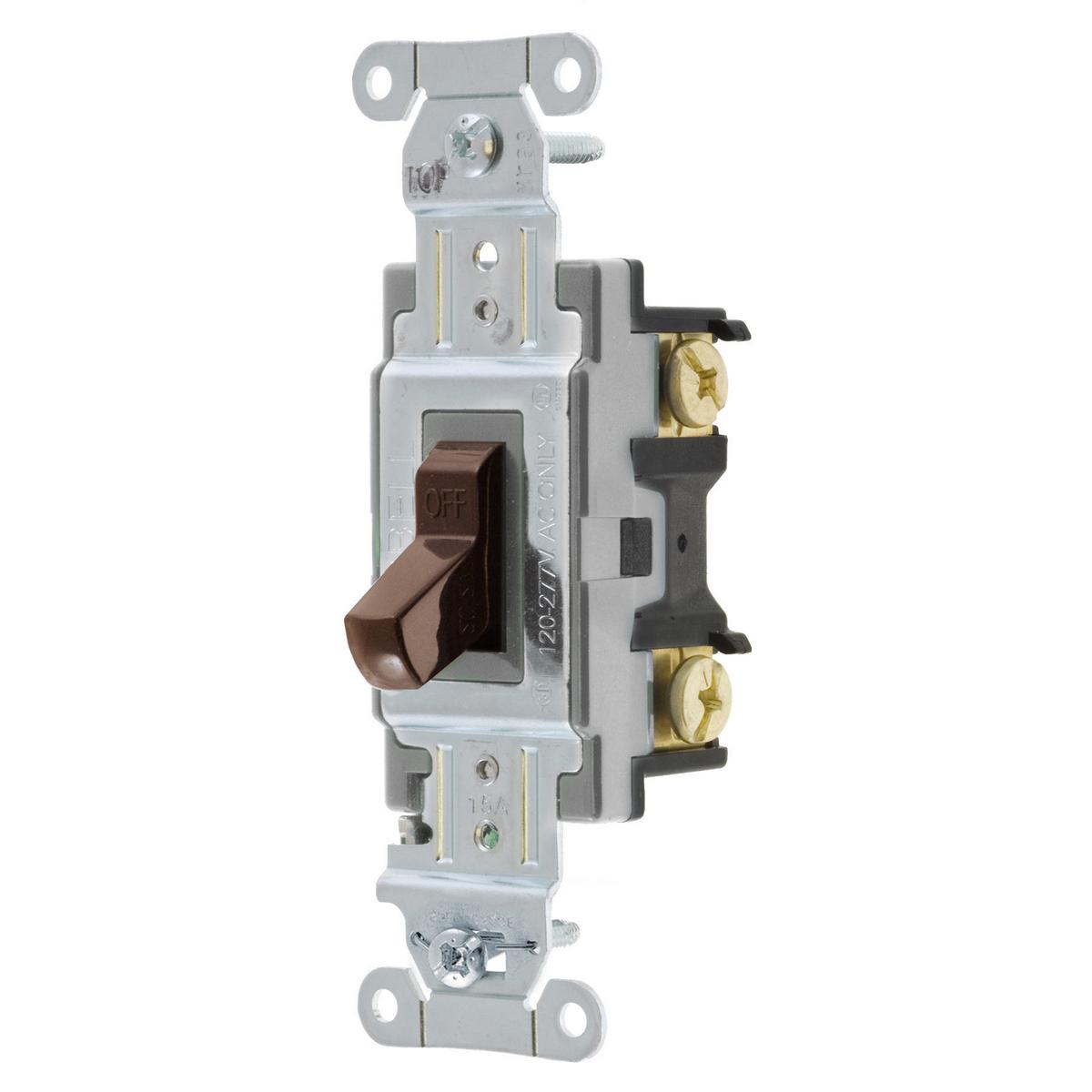

Hubbell CSB115 Toggle Switch
Hubbell CSB115 Toggle Switch
Part #:CSB115
SKU #: 2229999
Key Features
Part #:CSB115
SKU #: 2229999
Brand: Hubbell
Actuator: Toggle
Amperage Rating: 15, 15 A
Contact Configuration: 2-Position
Dimensions: 4.18 in H x 1.49 in W x 1.83 in D, 4.18 x 1.49 x 1.83, 4.18 x 1.49 x 1.83 in
Environmental Conditions: -40 to 75, -40 to 75 deg C, -40 to 75 deg C Temperature
- Engineered thermoplastic housing is impact resistant for heavy duty commercial environments
- Heavy duty nylon toggle resists abuse and chemical attack making it suitable for use in the toughest environments
- Elastomer rocker assures quiet operation and precise timing
- Permanently lubricated assembly provides long life and trouble free operation
- Copper alloy spring contact arm and terminal plate assures proper contact alignment reducing heat rise
- Silver alloy contacts reduce contact erosion and prevent welding, providing long life
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
- Indoor Dry unless protected by additional means
- Stainless steel automatic grounding staple assures grounding continuity between mounting strap and metal wall box
- 14 - 10 AWG
- UL 94-V2 flammability
- Positive snap action
- One piece bridge with integral grounding terminal with #8 brass screw allows compliance to NEC
Hubbell CSB115 Toggle Switch
Wiring Device-Kellems Toggle Switch, 2-Position Specification/Commercial Grade Standard, 120 to 277 VAC, 15 A, 4155 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Nylon, Brown, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in
Additional Description: HUBW-CSB115 SWITCH, SPEC, SP, 15A 120/277V, B+S, BR
Catalog Description: Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, Back and Side Wired, Brown
