Brand: Hubbell

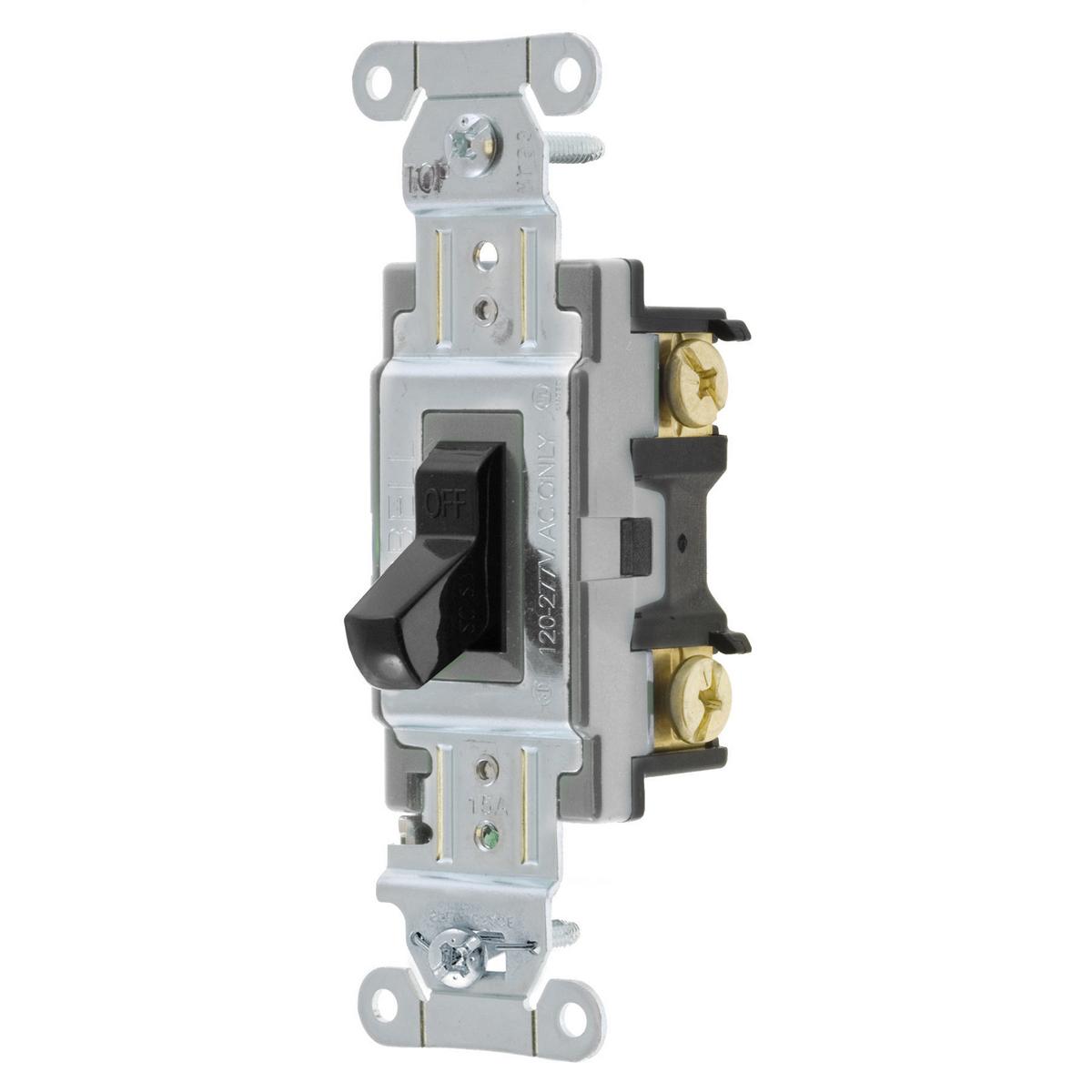

Hubbell CSB115BK AC Toggle Switch
Image Disclaimers Message
Brand: Hubbell
Hubbell CSB115BK AC Toggle Switch
Brand: Hubbell
Hubbell CSB115BK AC Toggle Switch
Part #:CSB115BK
SKU #: 2317794
$6.21/EA
Key Features
Part #:CSB115BK
SKU #: 2317794
Brand: Hubbell
Actuator: Toggle
Amperage Rating: 15, 15 A
Contact Configuration: 2-Position
Dimensions: 4.18 in H x 1.49 in W x 1.75 in D, 4.18 x 1.49 x 1.83 in
Enclosure: NEMA WD-1
$6.21/EA
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
- Steel, zinc plated bridge is corrosion resistant
- Indoor dry unless protected by additional means
- 14 to 10 AWG
- 1/2 hp at 120 VAC, 1-1/2 hp at 208 VAC, 2 hp at 240/277 VAC
- Positive snap action
Specifications
Brand: Hubbell
Actuator: Toggle
Amperage Rating: 15, 15 A
Contact Configuration: 2-Position
Dimensions: 4.18 in H x 1.49 in W x 1.75 in D, 4.18 x 1.49 x 1.83 in
Enclosure: NEMA WD-1
Environmental Conditions: -40 to 75 deg C, -40 to 75 deg C Temperature
Mounting: Threaded
Number of Poles: 1
Operating Cycles: 50000, 50000 cycles
Power Rating: 2 hp, 4155 W, 4155 W
Series: CSB
Terminal Type: Back/Side Wire, Back/Side Wired
Type: Specification Grade, Standard Specification Grade
Voltage Rating: 120 to 277 VAC, 120/277
Color: Black
Country of origin: CN
Material: Nylon, Thermoset
Manufacturer Name: Hubbell
UNSPSC: 39122211
UPC: 00783585154619
Item FeaturesCommercial and General Purpose Applications
Item Features
Item FeaturesRoHS Compliant|CSA Certified|Federal Specification WS896|UL 20 Listed|UL94 V-2 Flammability Rating|NEMA WD1
