Part Number # CSB115GY
SKU # 2320768
Image Disclaimers Message
CSB115GY

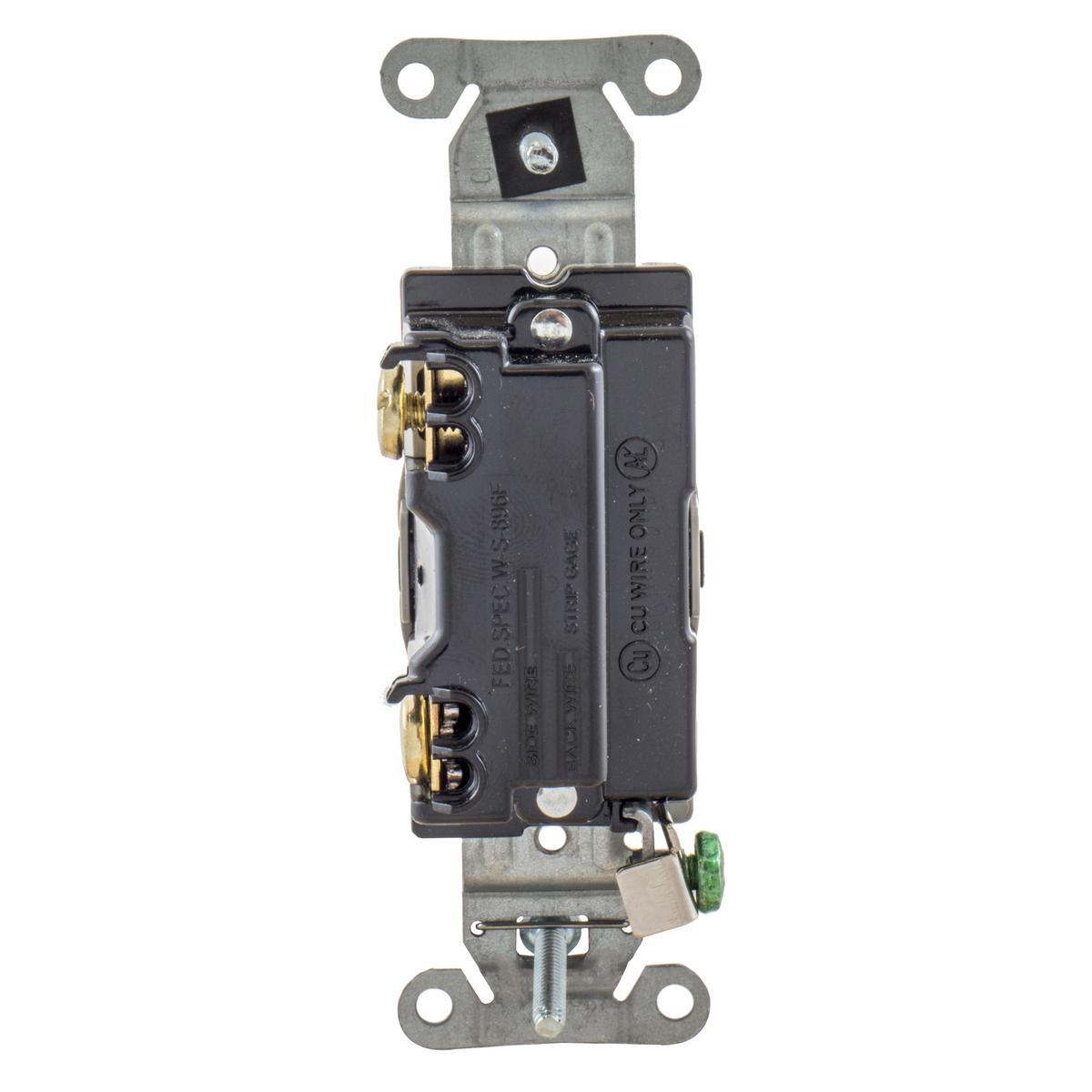

Hubbell CSB115GY Toggle Switch
Part Number # CSB115GY
SKU # 2320768
$6.86 / Each
Typical price:$8.90 / Each
Hubbell CSB115GY Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | CSB115GY |
| SKU #: | 2320768 |
| Actuator: | Toggle |
| Amperage Rating: | 15, 15 A |
| Contact Configuration: | 2-Position |
| Dimensions: | 4.18 in H x 1.49 in W x 1.83 in D, 4.18 x 1.49 x 1.83, 4.18 x 1.49 x 1.83 in |
| Environmental Conditions: | -40 to 75, -40 to 75 deg C, -40 to 75 deg C Temperature |
| Mounting: | Threaded |
| Number of Poles: | 1 |
| Operating Cycles: | 50000, 50000 cycles |
| Terminal Type: | Back/Side Wire, Back/Side Wired |
| Type: | 2-Position Specification/Commercial Grade Standard |
| Color: | Gray |
| Country of origin: | CN |
| Material: | Nylon, Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39122211 |
| UPC: | 00783585153773 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6.86 / Each
Typical price:$8.90 / Each
Quantity:
- Hubbell Wiring Device-Kellems, CSB115GY, Toggle Switch, 2-Position Specification/Commercial Grade Standard, 120 to 277 VAC, 15 A, 4155 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Nylon, Gray, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in Dimensions
CSB115GY Application
General Purpose AC and Indoor ApplicationsCSB115GY Item Features
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
CSB115GY Standards
RoHS Compliant|CSA Certified|Federal Specification WS896|NEMA WD1|UL 20|UL94 V-2 Flammability RatingSKU #2320768Part Number #CSB115GYUNSPSC39122211UPC00783585153773
