Part #:CSB120
SKU #: 2167341
Key Features
Part #:CSB120
SKU #: 2167341
Brand: Hubbell
Actuator: Toggle
Amperage Rating: 20, 20 A
Contact Configuration: 2-Position
Dimensions: 4.18 in L x 1.49 in W x 1.83 in H, 4.18 x 1.49 x 1.83, 4.18 x 1.49 x 1.83 in
Environmental Conditions: -40 to 75, -40 to 75 deg C, -40 to 75 deg C Operating Temperature
- Thread cleaning captive mounting screw
- 14 - 10 AWG
- 1 hp at 120 VAC, 2 hp at 208/240/277 VAC
- UL 94-V2 flammability
- Back and side wire connection
- 5540 W power
- Positive snap action
- General purpose
- Abuse-resistant nylon toggle
- Steel, zinc plated bridge is corrosion-resistant
- 2 position
- Indoor Dry unless protected by additional means
- Specification grade

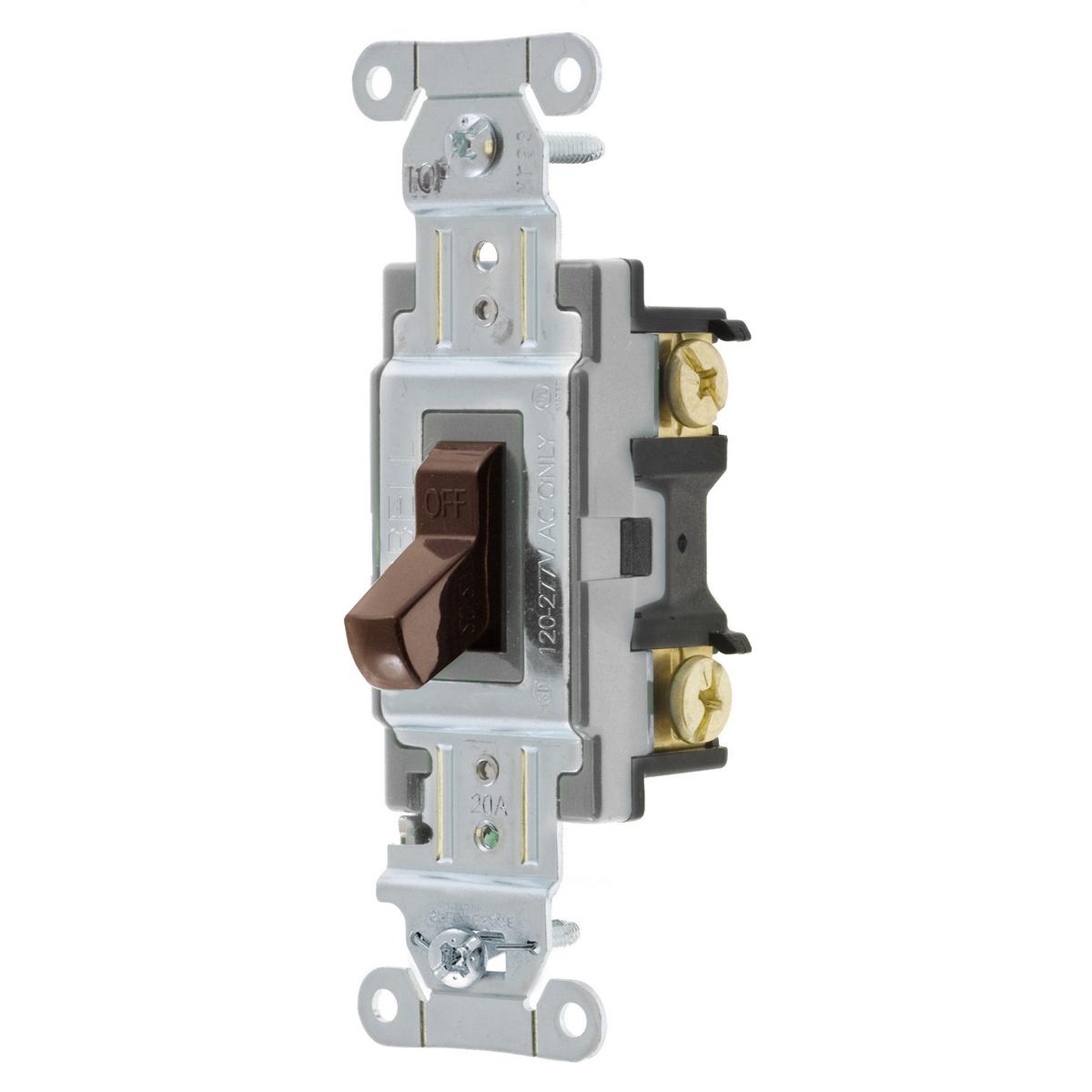

Hubbell CSB120 Toggle Switch
Wiring Device-Kellems Toggle Switch, 2-Position Standard, 120 to 277 VAC, 20 A, 5540 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Nylon, Brown, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in
Additional Description: HUBW-CSB120 SWITCH, SPEC, SP, 20A 120/277V, B+S, BR
Catalog Description: Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 20A 120/277V AC, Back and Side Wired, Brown
