Part Number # CSB120BK
SKU # 2250647
Image Disclaimers Message
CSB120BK

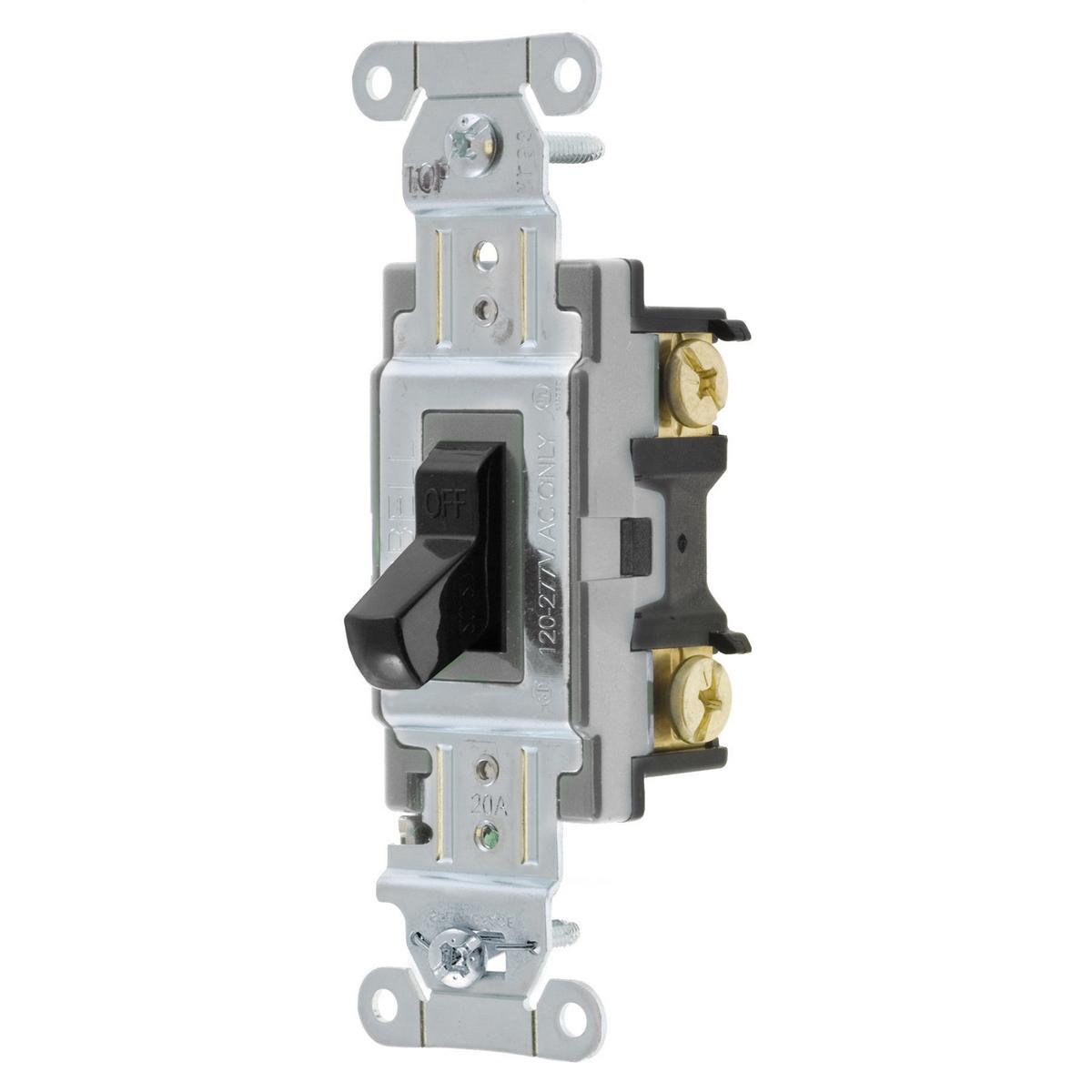

Hubbell CSB120BK Toggle Switch
Part Number # CSB120BK
SKU # 2250647
$8.21 / Each
Typical price:$10.65 / Each
Hubbell CSB120BK Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | CSB120BK |
| SKU #: | 2250647 |
| Actuator: | Toggle |
| Amperage Rating: | 20, 20 A |
| Contact Configuration: | 2-Position |
| Dimensions: | 4.18 in L x 1.49 in W x 1.83 in H, 4.18 x 1.49 x 1.83 in |
| Environmental Conditions: | -40 to 75 deg C, -40 to 75 deg C Operating Temperature |
| Mounting: | Threaded |
| Number of Poles: | 1 |
| Operating Cycles: | 50000, 50000 cycles |
| Terminal Type: | Back/Side Wire, Back/Side Wired |
| Type: | 2-Position Standard |
| Color: | Black |
| Country of origin: | CN |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39122211 |
| UPC: | 00783585154084 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8.21 / Each
Typical price:$10.65 / Each
Quantity:
- Hubbell Wiring Device-Kellems, CSB120BK, Toggle Switch, 2-Position Standard, 120 to 277 V AC, 20 A, 5540 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Nylon, Black, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in Dimensions
CSB120BK Application
Commercial and General Purpose ApplicationsCSB120BK Item Features
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
CSB120BK Standards
RoHS Compliant|UL 20|UL94 V-2 Flammability Rating|CSA Certified|Federal Specification WS896|NEMA WD1SKU #2250647Part Number #CSB120BKUNSPSC39122211UPC00783585154084
