Part Number # CSB320BK
SKU # 2312680
Image Disclaimers Message
Brand: Hubbell
CSB320BK

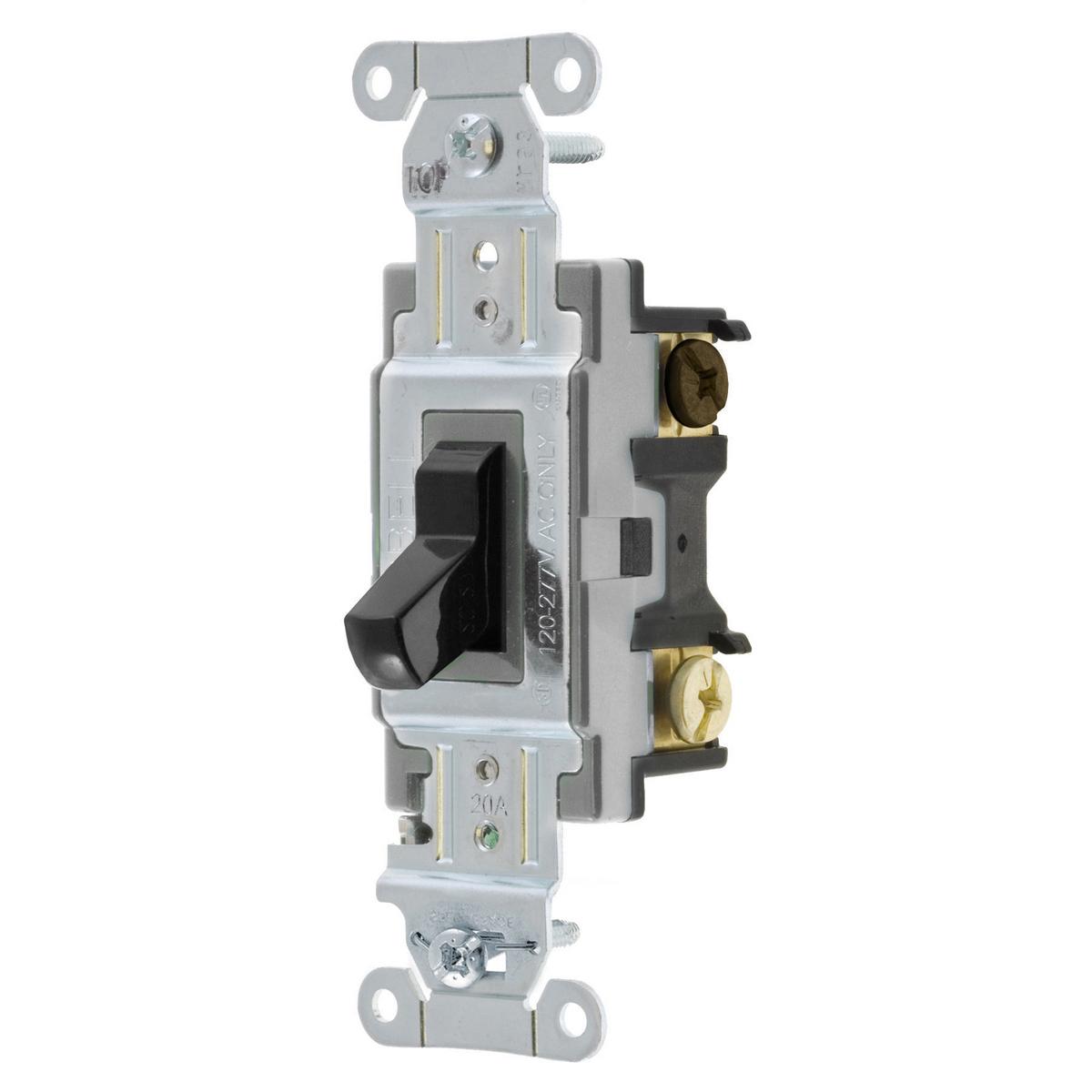

Hubbell CSB320BK Toggle Switch
Part Number # CSB320BK
SKU # 2312680
$10.21 / Each
Typical price:$13.20 / Each
Hubbell CSB320BK Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | CSB320BK |
| SKU #: | 2312680 |
| Actuator: | Toggle |
| Amperage Rating: | 20, 20 A |
| Contact Configuration: | 2-Position |
| Dimensions: | 4.18 in H x 1.49 in W x 1.83 in D, 4.18 x 1.49 x 1.83 in |
| Environmental Conditions: | -40 to 75 deg C, -40 to 75 deg C Temperature |
| Mounting: | Threaded |
| Number of Poles: | 1 |
| Operating Cycles: | 50000, 50000 cycles |
| Terminal Type: | Back/Side Wire, Back/Side Wired |
| Type: | 3-Way 2-Position Specification/Commercial Grade Standard |
| Color: | Black |
| Country of origin: | CN |
| Material: | Nylon, Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39122211 |
| UPC: | 00783585154268 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$10.21 / Each
Typical price:$13.20 / Each
Quantity:
- Hubbell Wiring Device-Kellems, CSB320BK, Toggle Switch, 3-Way 2-Position Specification/Commercial Grade Standard, 120 to 277 V AC, 20 A, 5540 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Nylon, Black, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in Dimensions
CSB320BK Application
General Purpose AC and Indoor ApplicationsCSB320BK Item Features
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
CSB320BK Standards
RoHS Compliant|CSA Certified|Federal Specification WS896|NEMA WD1|UL 20|UL94 V-2 Flammability RatingSKU #2312680Part Number #CSB320BKUNSPSC39122211UPC00783585154268
