Brand: Hubbell
CU300A

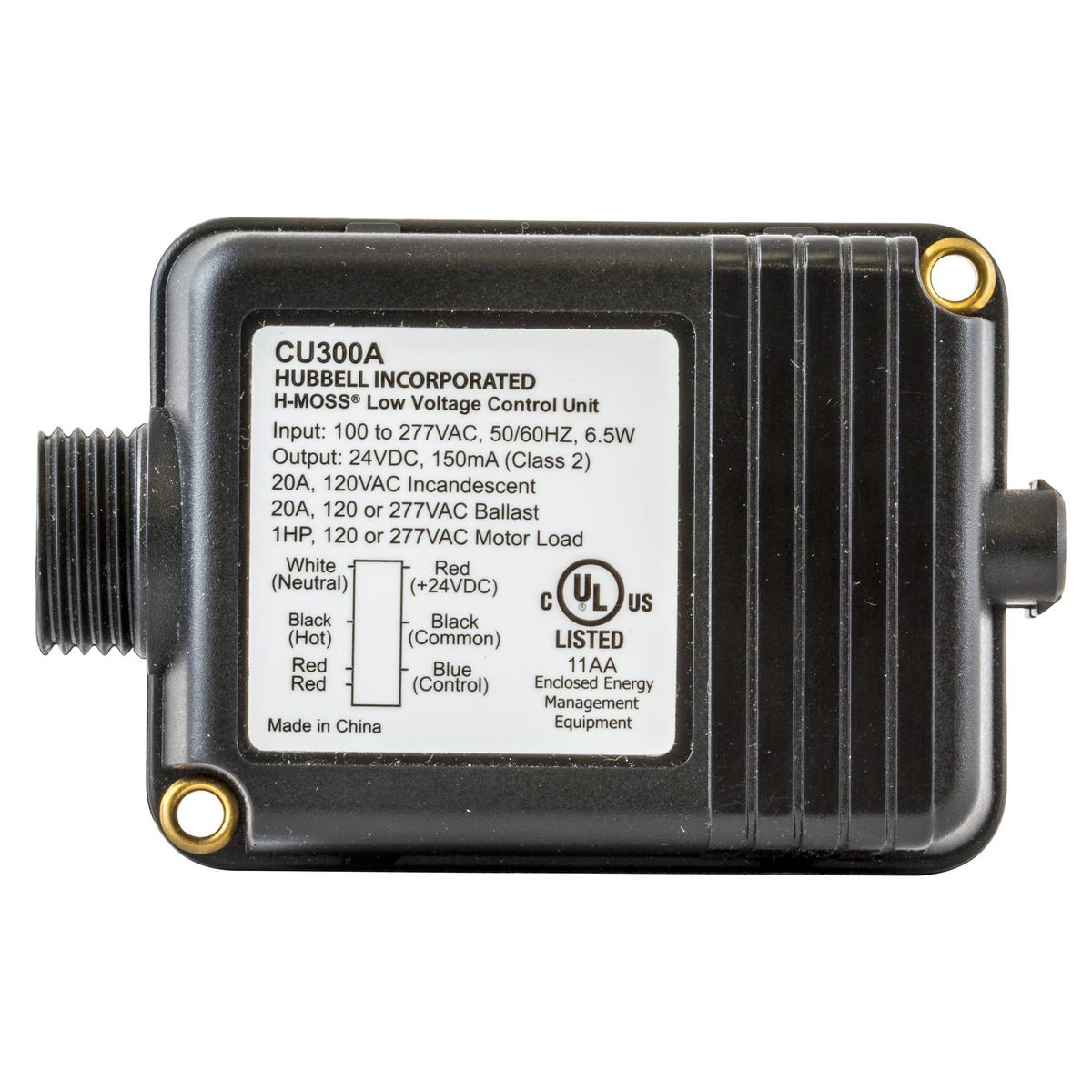

Hubbell CU300A Occupancy Sensor Control Unit
Part Number # CU300A
SKU # 2198199
$84.64 / Each
Typical price:$110.00 / Each
Hubbell CU300A Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | CU300A |
| SKU #: | 2198199 |
| Amperage Rating: | 150 mA |
| Control Output: | 24 VDC, 24 VDC/150 mA |
| Humidity: | 0 to 95% Non-Condensing Relative |
| Sensor Type: | ATD/ATU/ATP |
| Series: | CU300 |
| Size: | 3.69 in L x 2.33 in W x 1.36 in H |
| Temperature Rating (Degrees F): | 0 to 40 deg C, 32 to 104 |
| Type: | Universal |
| Color: | Black |
| Country of origin: | CN |
| Material: | Thermoplastic |
| Mounting type: | Threaded |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39122236 |
| UPC: | 00783585181004 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$84.64 / Each
Typical price:$110.00 / Each
Quantity:
- Hubbell Occupancy Sensor Control Unit, Universal, Series: CU300, 120/277 VAC, 150 mA, 0 to 1800 W, 3.69 in L x 2.33 in W x 1.36 in H, ATD/ATU/ATP Sensor, 50/60 Hz Response, 24 VDC Control Output, 0 to 40 deg C, 0 to 95% Non-Condensing Relative, Thermoplastic, Black
CU300A Application
For 1 to 4 ATD, ATU and ATP Series Ceiling/Wall Mount SensorsCU300A Item Features
- Automatic ON operation
- Automatic Voltage Detection eliminates the need for specialized wiring
- Zero Arc Point Switching Minimizes relay contact
- Easily mounts inside or outside a junction box or inside a fluorescent fixture ballast cavity
- Plenum rated
CU300A Standards
UL Listed|cULus CertifiedSKU #2198199Part Number #CU300AUNSPSC39122236UPC00783585181004
