Part Number # DR15WHI
SKU # 2287028
Image Disclaimers Message
Brand: Hubbell
DR15WHI

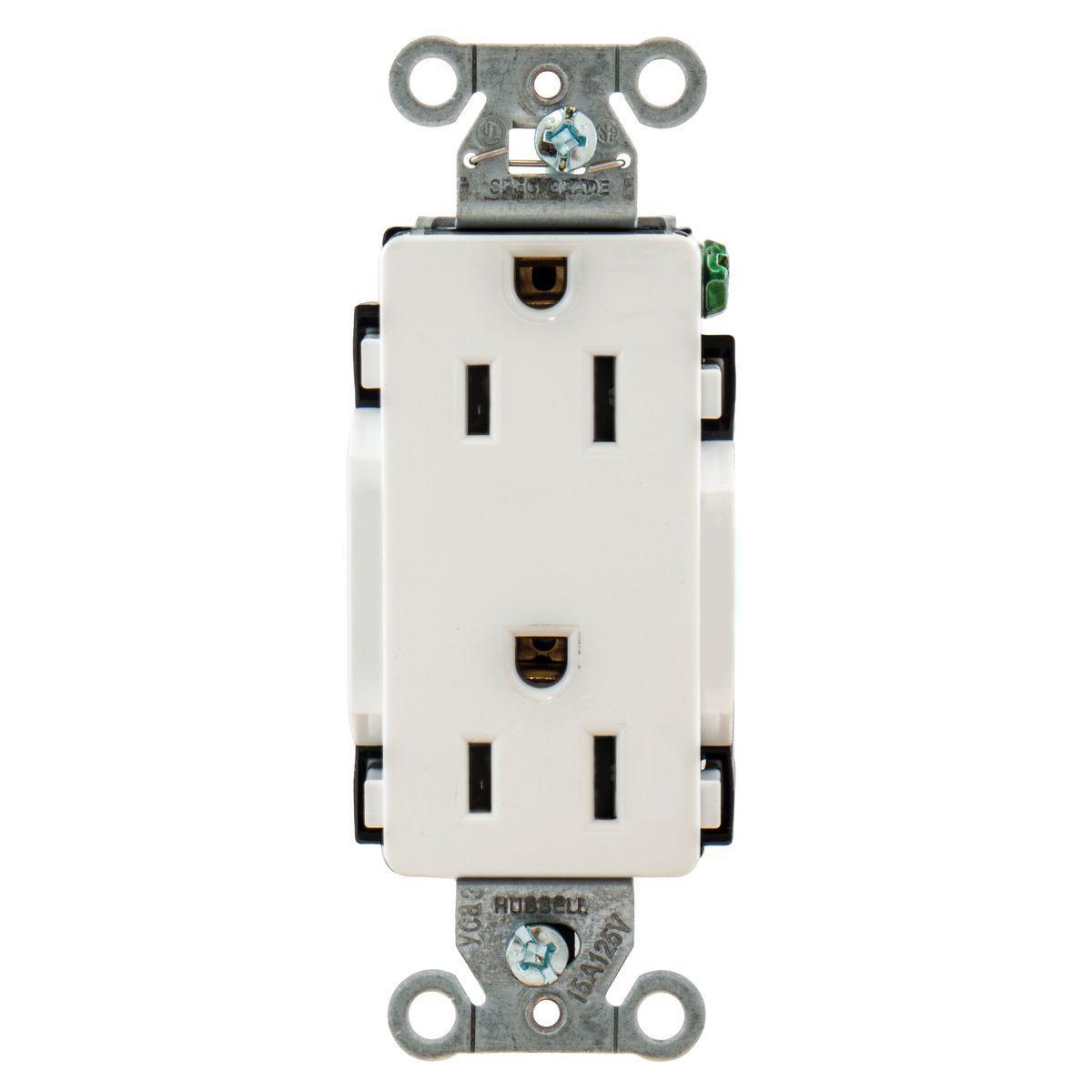

Hubbell DR15WHI Straight Blade Receptacle
Part Number # DR15WHI
SKU # 2287028
$6.93 / Each
Typical price:$8.95 / Each
Hubbell DR15WHI Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | DR15WHI |
| SKU #: | 2287028 |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 1.29 x 1.06 x 3.28, 1.29 x 1.06 x 3.28 in, 3.281 in H x 1.295 in W x 1.067 in D |
| Horsepower: | 1/2, 1/2 hp |
| NEMA Rating: | 5-15R, NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | Decorator |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Back and Side Wired, Back/Side Wired, Side Wired |
| Type: | 1-Phase Duplex Self-Grounding Screw Mount, Duplex Self-Grounding |
| Color: | White |
| Country of origin: | CN |
| Material: | Composite/Thermoplastic, Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585127828 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6.93 / Each
Typical price:$8.95 / Each
Quantity:
- Hubbell Wiring Device-Kellems Style Line Straight Blade Receptacle, 1-Phase Duplex Self-Grounding Screw Mount, Series: Decorator, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, White, 1.29 x 1.06 x 3.28 in
DR15WHI Item Features
- Smooth face
- Triple wipe contacts
- https://youtu.be/6vsZAR79ASo
DR15WHI Standards
UL 498, File No. E2186 Listed|UL 94-V-2 Flammability Rating|CSA C22.2 No. 42|NEMA WD1/WD5|RoHS CompliantSKU #2287028Part Number #DR15WHIUNSPSC39121406UPC00783585127828
