DR20BLK

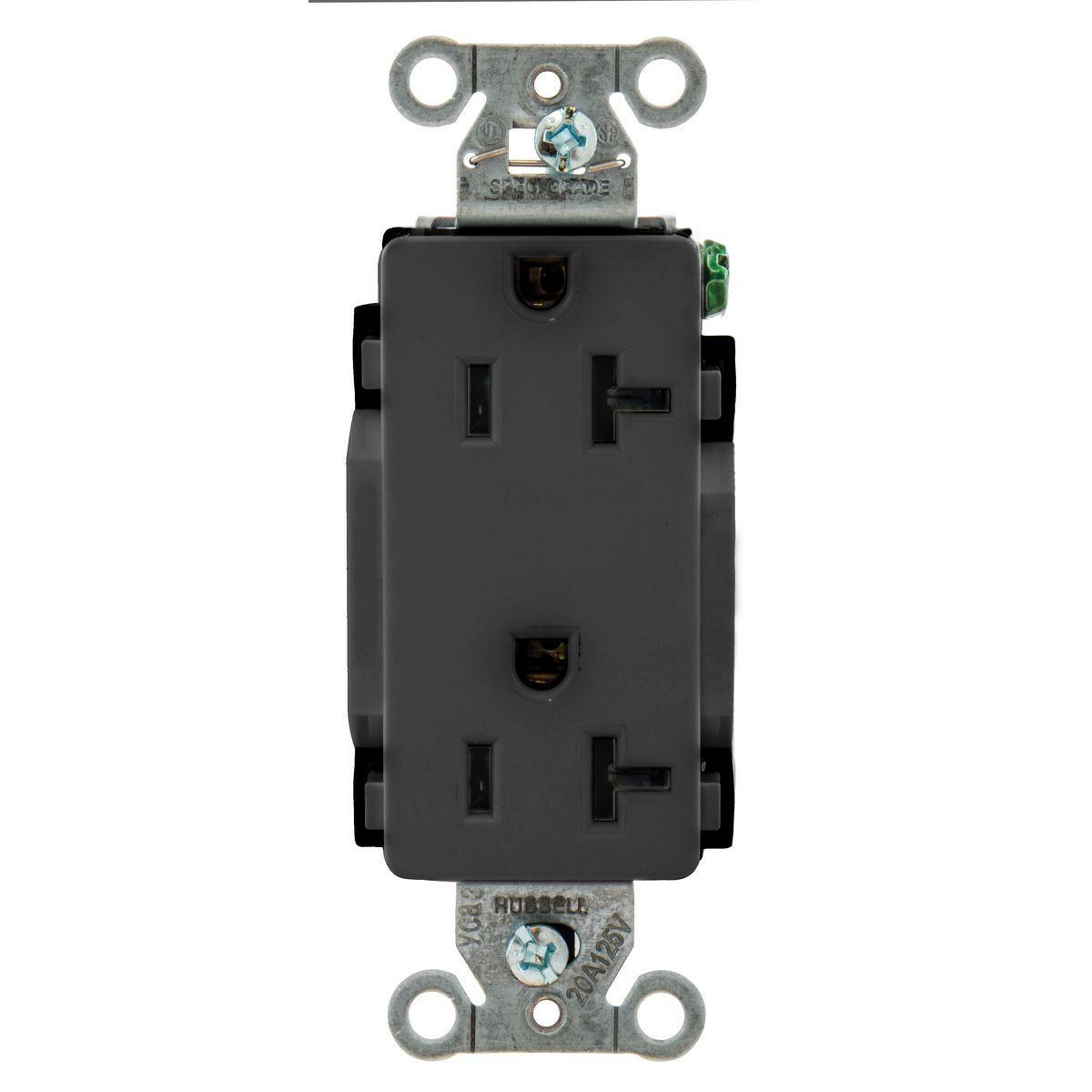

Hubbell DR20BLK Straight Blade Receptacle
Part Number # DR20BLK
SKU # 2157257
$8.21 / Each
Typical price:$10.65 / Each
Hubbell DR20BLK Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | DR20BLK |
| SKU #: | 2157257 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 3.28 x 1.06 x 1.29 in, 3.281 in H x 1.295 in W x 1.067 in D |
| Horsepower: | 1, 1 hp |
| NEMA Rating: | 5-20R, NEMA 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | Decorator |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Back/Side Wired, Side Wired |
| Type: | 1-Phase Duplex Self-Grounding Screw Mount, Duplex Self-Grounding |
| Color: | Black |
| Country of origin: | CN |
| Material: | Composite/Thermoplastic, Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585127910 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8.21 / Each
Typical price:$10.65 / Each
Quantity:
- Hubbell Wiring Device-Kellems Style Line Straight Blade Receptacle, 1-Phase Duplex Self-Grounding Screw Mount, Series: Decorator, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Black, 3.28 x 1.06 x 1.29 in
DR20BLK Item Features
- Smooth face
- Triple wipe contacts
DR20BLK Standards
UL 498, File No. E2186 Listed|UL 94-V-2 Flammability Rating|CSA C22.2, No. 42|Federal Specification W-C-596|NEMA WD1/WD5/WD6 Compliant|RoHS CompliantSKU #2157257Part Number #DR20BLKUNSPSC39121406UPC00783585127910
