- Traditional face shape
- Withstands 2000 VAC dielectric voltage
- 14 to 12 AWG solid or stranded copper conductor terminal accommodation
- Smooth face
- Aesthetic Style Line decorator design
- Triple wipe contacts
- Nylon base, 0.03 in brass power contacts
- Brass ground contacts
- 0.062 in nickel plated steel wire clamp
- Plated steel terminal screws
- 0.04 in galvanized steel mounting strap
- Stainless steel automatic self-grounding staple
- Galvanized steel mounting screws
- Certified for current interrupting at full rated current
- Indoor dry unless protected by additional means
Specifications
Brand: Hubbell
Amperage Rating: 20 A
Dimensions: 3.28 x 1.06 x 1.29 in
Horsepower: 1 hp
NEMA Rating: 5-20R
Number of Poles: 2
Number of Wires: 3
Series: Decorator
Temperature Rating (Degrees F): -40 to 75 deg C
Terminal Type: Side Wired
Type: 1-Phase Duplex Self-Grounding Screw Mount
Voltage Rating: 125 VAC
Color: White
Country of origin: CN
Material: Nylon
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585127903

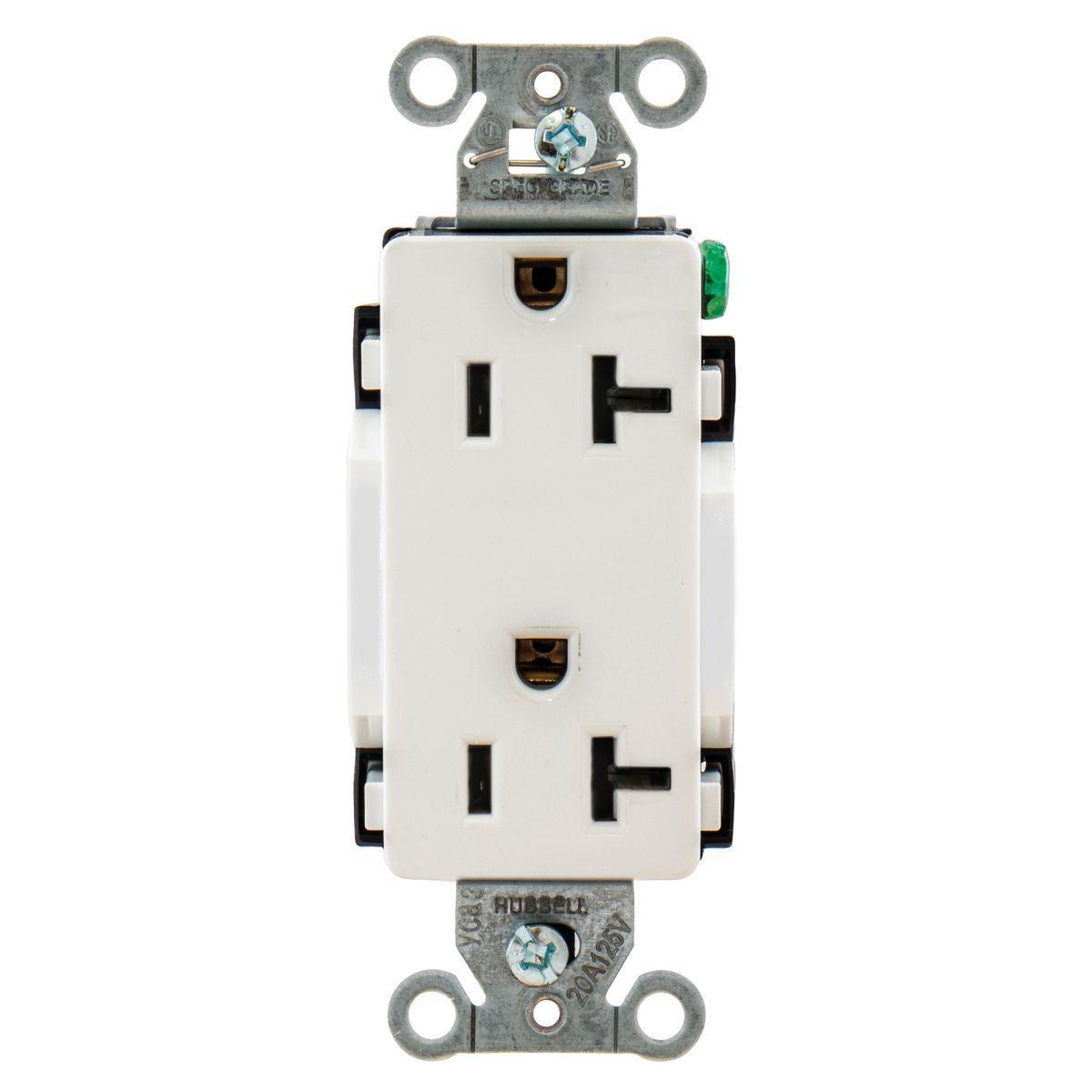

Hubbell DR20WHI Style Line Straight Blade Receptacle
Wiring Device-Kellems StyleLine® Straight Blade Receptacle, Duplex Self-Grounding, Series: Decorator, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Back/Side Wire Terminal, Composite/Thermoplastic, White, 3.281 in H x 1.295 in W x 1.067 in D Dimensions
Additional Description: HUBW-DR20WHI DECO RCPT, COMM GRD, 20A 125V, 5-20R, WH
Catalog Description: Straight Blade Devices, Receptacles, Duplex, Decorator, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, White, Single Pack.
Item Features
Item FeaturesUL 498, File No. E2186 Listed|UL 94-V-2 Flammability Rating|CSA C22.2, No. 42|NEMA WD1/WD5/WD6 Compliant|RoHS Compliant
