Brand: Hubbell

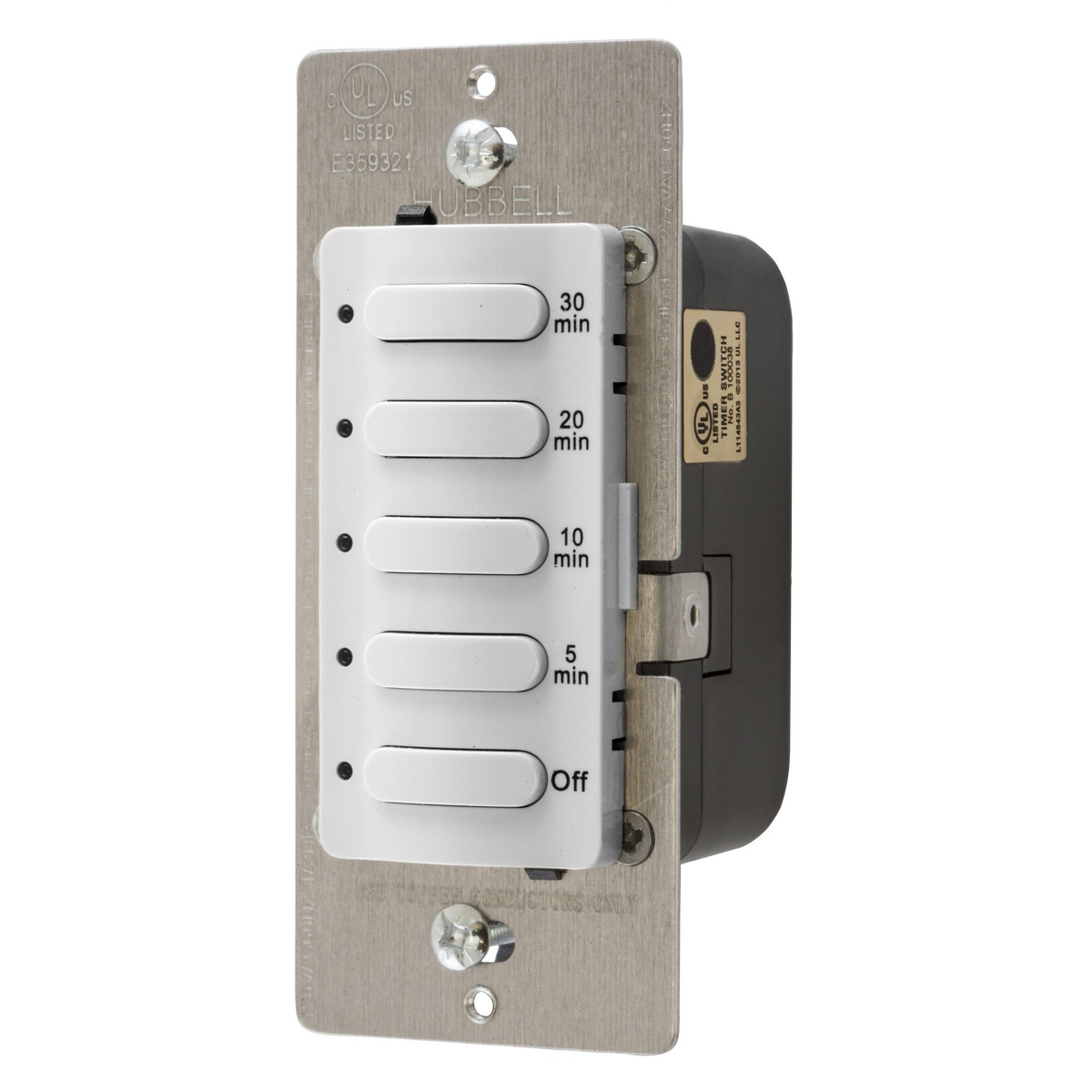

Hubbell DT5030W Bryant Electric H-Moss Timer Switch
Image Disclaimers Message
Brand: Hubbell
Hubbell DT5030W Bryant Electric H-Moss Timer Switch
Brand: Hubbell
Hubbell DT5030W Bryant Electric H-Moss Timer Switch
Part #:DT5030W
SKU #: 2386727
$47.93/EA
Key Features
Part #:DT5030W
SKU #: 2386727
Brand: Hubbell
Amperage Rating: 8.3, 8.3 A
Dimensions: 1.75 in W x 2.27 in H x 3.81 in L, 3.81 in L x 1.75 in W x 2.27 in H
Display Type: Digital, Red LED
Electrical Connections: Screw Terminal
Horsepower: 1/6 hp
$47.93/EA
- Pre set 5 button selection with permanent time markings
- Manual override to OFF
- Alert to OFF function red LED will flash during the final 30 s
- Designed for use on 120 or 277 VAC circuits
Specifications
Brand: Hubbell
Amperage Rating: 8.3, 8.3 A
Dimensions: 1.75 in W x 2.27 in H x 3.81 in L, 3.81 in L x 1.75 in W x 2.27 in H
Display Type: Digital, Red LED
Electrical Connections: Screw Terminal
Horsepower: 1/6 hp
Number of Poles: 1
Temperature Rating (Degrees F): 32 to 104, 32 to 122 deg F
Time Setting: 30 min Delay, OFF, 5, 10,20, 30 min
Type: Countdown Fixed Standard
Voltage Rating: 120/277, 120/277 VAC
Mounting type: Threaded, Wall
UNSPSC: 39122208
UPC: 00783585256412
Hubbell DT5030W Bryant Electric H-Moss Timer Switch
Bryant Electric H-MOSS Timer Switch, 120/277 VAC, 8.3 A, 1/6 hp, 1 Pole, 30 min Delay Time Setting, Red LED Display, 32 to 122 deg F, Wall Mounting, 3.81 in L x 1.75 in W x 2.27 in H Dimensions
Additional Description: HUBW-DT5030W TIMER 30MIN, 8.3A 120/277V , WHITE
Catalog Description: Hubbell Wiring Device Kellems, Timer Switches, Single Pole, 8.3A120/277VAC, 30 Minute Delay Time Out, White
