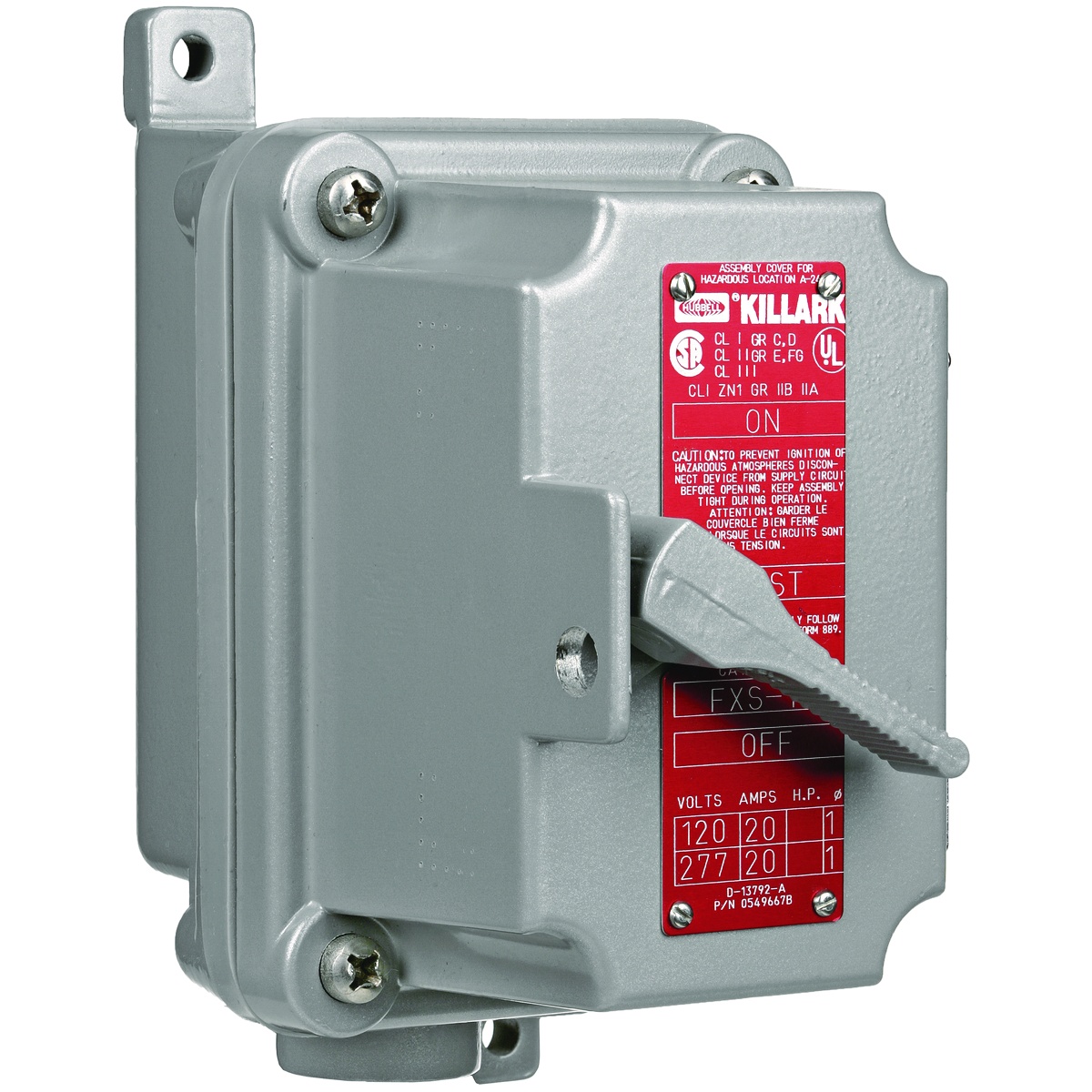

Hubbell FXSX52 Manual Motor Starting Switch
Part Number # FXSX52
SKU # 2312585
$735.00 / Each
Hubbell FXSX52 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | FXSX52 |
| SKU #: | 2312585 |
| Dimensions: | 6-13/16 in H x 3-11/16 in W x 5-11/32 in D |
| Enclosure Type: | NEMA 3 |
| Frequency Rating: | 60, 60 Hz |
| Motor Power: | 2 hp at 115 VAC, 2 hp at 200 to 230 VAC, 3 hp at 460 to 575 VAC |
| Number of Poles: | 2 |
| Phase: | 1 |
| Reset Type: | Lever |
| Series: | FXSX |
| Type: | 1-Gang Type K Feed-Through Factory Sealed |
| Country of origin: | US |
| Material: | Copper-Free Aluminum |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121521 |
| UPC: | 00783936198095 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$735.00 / Each
Quantity:
- Killark Manual Motor Starting Switch, 1-Gang Type K Feed-Through Factory Sealed, Series: FXSX, 600 V AC, 60 Hz Frequency, 2 hp at 115 VAC, 2 hp at 200 to 230 VAC, 3 hp at 460 to 575 VAC Motor, 2 Pole, Lever Reset, 1 ph, NEMA 3 Enclosure, Copper-Free Aluminum, 6-13/16 in H x 3-11/16 in W x 5-11/32 in D Dimensions
FXSX52 Application
Provides manual starting and stopping of small AC or DC motors, motor running protection when overload heaters are used, ideally suited for across-the-line applications where a positive disconnect means is requiredFXSX52 Item Features
- FXSX Series requires no external seals (factory sealed) and are NEMA 3 (raintight) rated
- Enclosures are cast copper-free aluminum alloy
- Operating shaft is stainless steel
- Ground flange joint between bolted cover and box provide required flame path
- Provisions for padlocking switch in either "ON" or "OFF" position is standard
- Without overload protection
FXSX52 Standards
CSA File No. LR11714|FM File No. 25219|UL File No. E53360/E12379|Class I, Divisions 1 and 2, Groups C, D|Class I, Zones 1 and 2, Groups IIB, IIA|Class II, Divisions 1 and 2, Groups E, F, G|Class III, Divisions 1 and 2|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.SKU #2312585Part Number #FXSX52UNSPSC39121521UPC00783936198095
