Brand: Hubbell
GF15I

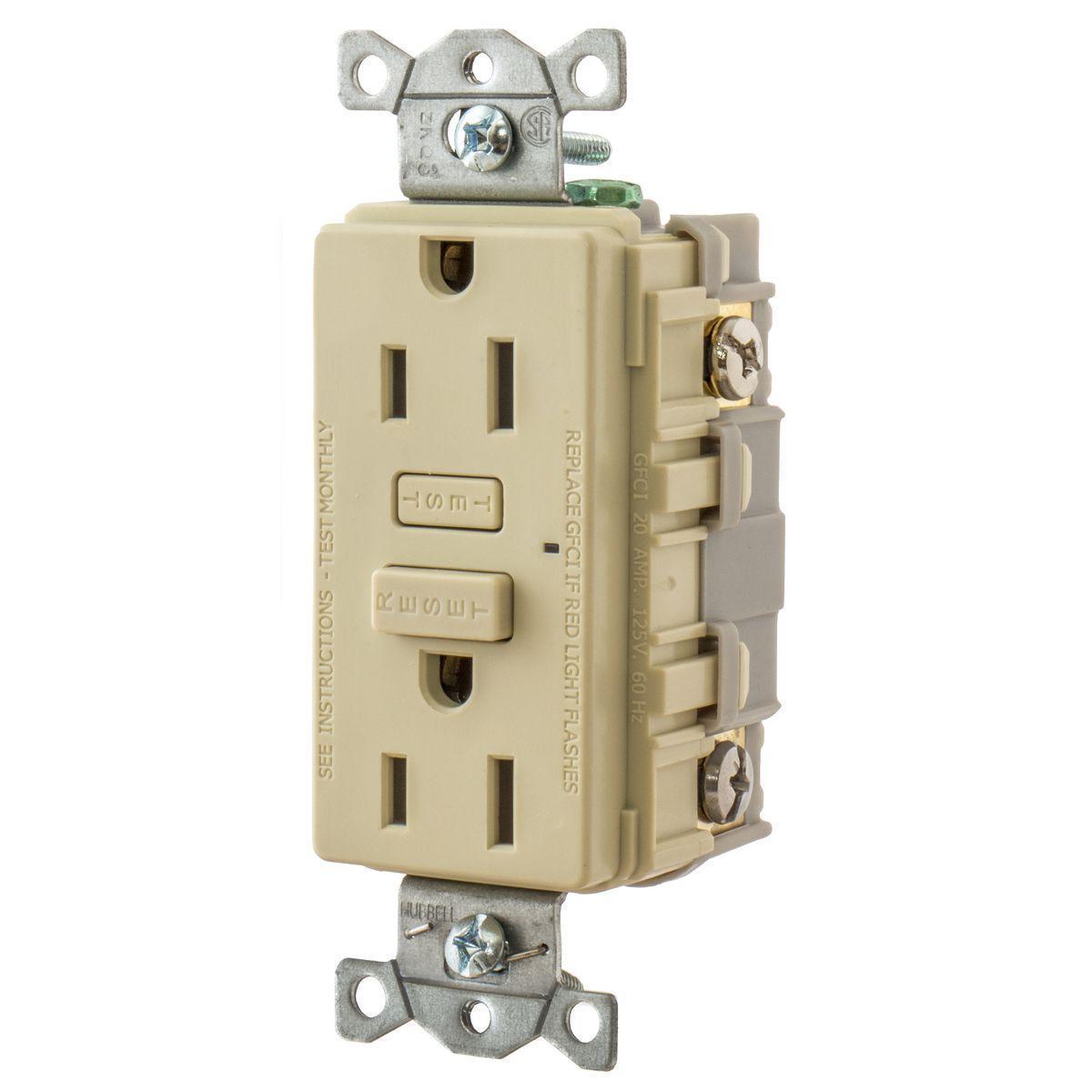

Hubbell GF15I Bryant Electric Circuitpro Gfci Receptacle
Part Number # GF15I
SKU # 2419879
$16.79 / Each
Typical price:$35.00 / Each
Hubbell GF15I Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | GF15I |
| SKU #: | 2419879 |
| Amperage Rating: | 15 A |
| Dimensions: | 1.75 in W x 1.47 in D x 4.12 in H, 3.75 in H x 1.75 in W x 1.47 in D |
| Frequency Rating: | 60 Hz |
| Horsepower: | 1 hp, 1/2 hp |
| NEMA Rating: | 5-20R, NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -30 to 150 deg F |
| Terminal Type: | Back Wire/Clamp/Screw, Screw |
| Type: | 1-Phase Duplex Grounding Heavy Duty Self-Test Standard, 1-Phase Duplex Grounding Standard Straight Blade Screw Mount |
| Color: | Ivory |
| Country of origin: | CN |
| Material: | Composite/Thermoplastic, Thermoplastic/Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00883778450518 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$16.79 / Each
Typical price:$35.00 / Each
Quantity:
- Bryant Electric Hubbell-Pro CIRCUITPRO GFCI Receptacle, 1-Phase Duplex Grounding Heavy Duty Self-Test Standard, 125 V AC, 15 A, 1/2 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -30 to 150 deg F, Back Wire/Clamp/Screw Terminal, Composite/Thermoplastic, Ivory, 3.75 in H x 1.75 in W x 1.47 in D Dimensions
GF15I Application
Kitchens, Bathrooms, Garages, Basements, Laundry Areas, Workshops, Wet or Damp Locations, Outdoor Porches, Deck Applications and Indoor Dry EnvironmentGF15I Item Features
- Patented CIRCUITPRO self-test technology includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost
- Internal back wiring clamp and guide for quick and secure termination
- High impact and ultraviolet-resistant construction provides resilience in harsh environments
- Protection against line and load reversal - no power to the face or downstream receptacles if device is miswired
- Installation ease, lower labor cost with auto-grounding clip, captive mounting screws and single tab breakoff ears and full breakoff for OEM raised covers
GF15I Standards
ANSI C73|UL 498|UL943|UL File No. E41978|UL94 V-2 Flammability Rating|CSA C22.2 No. 42/M-012A|NEMA WD1/WD5 WD6|NOM CertifiedSKU #2419879Part Number #GF15IUNSPSC39121406UPC00883778450518
