Brand: Hubbell

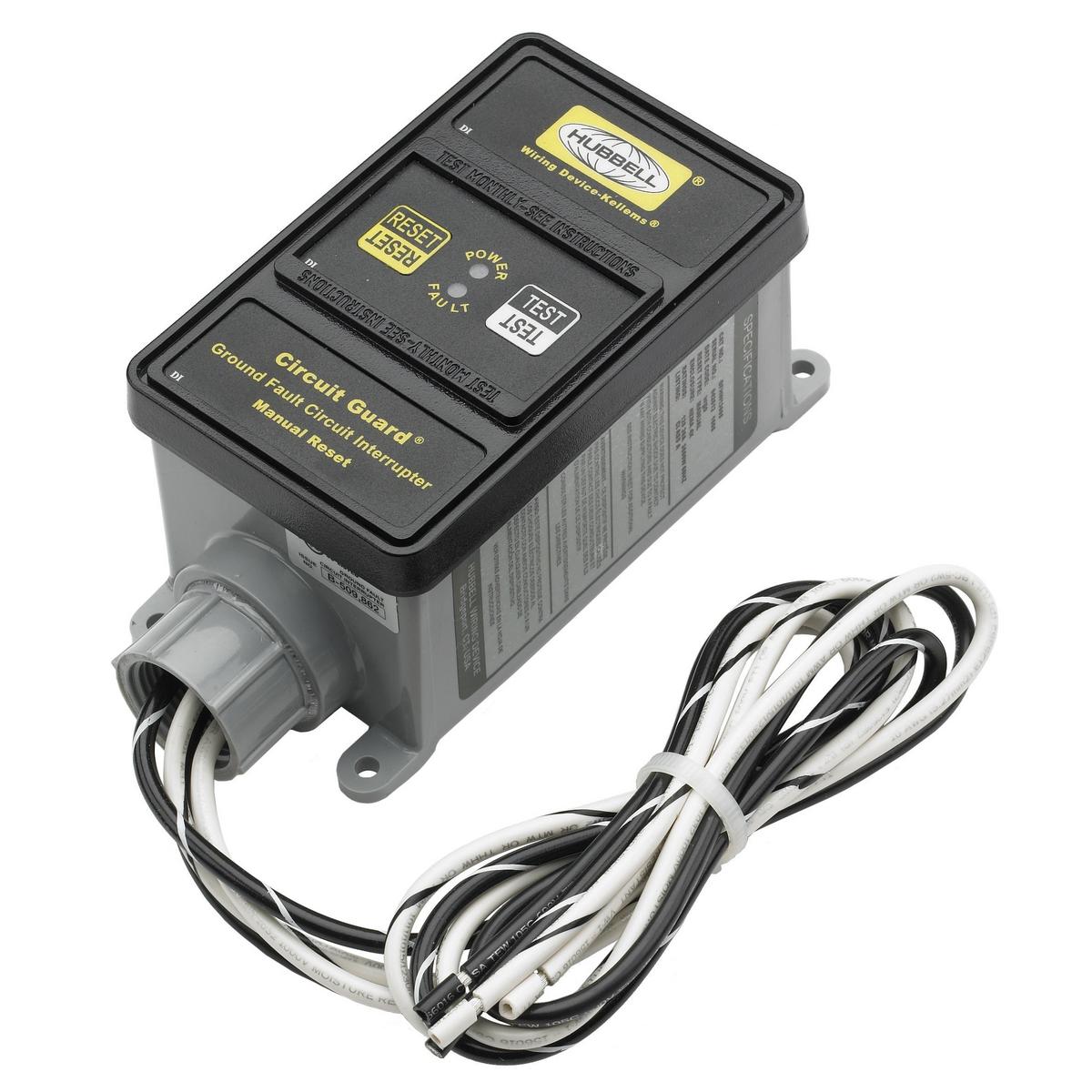

Hubbell GFHW33015 Hard Wired GFCI
Image Disclaimers Message
Brand: Hubbell
Hubbell GFHW33015 Hard Wired GFCI
Brand: Hubbell
Hubbell GFHW33015 Hard Wired GFCI
Part #:GFHW33015
SKU #: 2281835
$512.86/EA
Key Features
Part #:GFHW33015
SKU #: 2281835
Brand: Hubbell
Amperage Rating: 30, 30 A
Dimensions: 24 in L
Enclosure: NEMA 4X
Frequency Rating: 60 Hz
Power Rating: 7200, 7200 W
$512.86/EA
- Requires the GFCI to be manually reset for use by pressing the reset button after the loss of primary power
- Must be also manually reset after a ground fault condition
- Manual reset is ideal for applications where operator injury might occur if equipment were to restart after a power failure
- Offers a 4 to 6 mA trip level
- The alarm alerts you if a ground fault has occurred and the GFCI has tripped
- The alarm may be disabled or wired into a switch so that the customer has the choice of use or non-use
- Red light begins blinking when a ground fault is detected and the output power is interrupted
- Thermoplastic insulation
- 10 AWG, 24 in L wire lead
- Copper conductor
- Electromagnetic Latching Mechanism
- Trips if ground and neutral touch at load side
- Red blinking light plus optional audible alarm
- Open neutral protection Trips upon loss of neutral
Specifications
Brand: Hubbell
Amperage Rating: 30, 30 A
Dimensions: 24 in L
Enclosure: NEMA 4X
Frequency Rating: 60 Hz
Power Rating: 7200, 7200 W
Response Time: 0.025 s
Temperature Rating (Degrees F): -30 to 150, -30 to 150 deg F
Type: 1-Phase Corrosion Resistant Grounding Male Standard Cord Mount, 4-Wire Manual Multi-Strand, 4-Wire Manual Multi-Strand Fabricated
Voltage Rating: 125/250, 125/250 VAC, 28 VDC
Color: Black, Black/Yellow, Yellow
Country of origin: US
Material: Composite, Thermoplastic
Manufacturer Name: Hubbell
UNSPSC: 26121536
UPC: 00783585005287
Hubbell GFHW33015 Hard Wired GFCI
Wiring Device-Kellems Circuit Guard Hard Wired GFCI, 4-Wire Manual Multi-Strand Fabricated, 125/250 VAC, 30 A, 7200 W Power, -30 to 150 deg F, NEMA 4X Enclosure, Thermoplastic, Black, 24 in L
Additional Description: HUBW-GFHW33015 HW GFCI, 30A 120/240V, MAN, W/ENUN
Catalog Description: Power Protection Products, Hard Wired GFCI, Industrial/Commercial, Audible Alarm, 30A 120/240V AC, 4-6 mA Trip Level, Black.
Item FeaturesIndustrial, Commercial and Wire into Circuit Applications
Item FeaturesFoam Gasket, Mounting Template and Detailed Instructions
Item Features
Item FeaturescULus Listed|UL 943
