Part Number # GO25-2A3F
SKU # 2334236
Image provided may only be a representation of
final product and may include optional equipment
GO25-2A3F

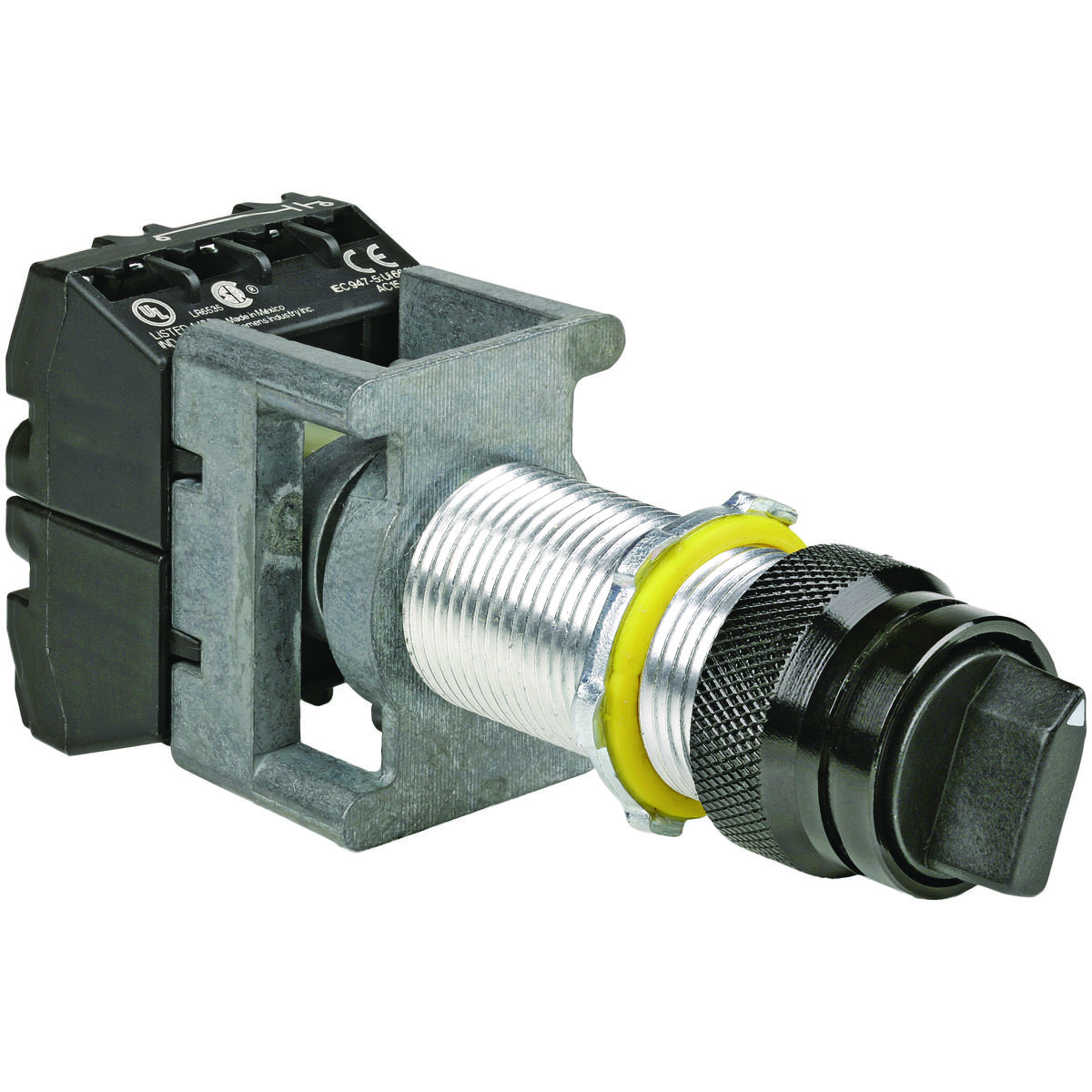

Hubbell GO25-2A3F Selector Switch
Part Number # GO25-2A3F
SKU # 2334236
Hubbell GO25-2A3F Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | GO25-2A3F |
| SKU #: | 2334236 |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Contact Rating: | 12/1.2/10 A at 600 V AC, 12/1.2/10 A at 600 VAC |
| Enclosure Type: | NEMA 3/4/4X/7B/7C/7D/9E/9F/9G, NEMA 3/4/4X/7BCD/9EFG |
| Environmental Conditions: | -25 to 40 deg C Ambient |
| Indicator Type: | LED |
| Legend: | Off/On |
| Number of Positions: | 2 |
| Operator Type: | Knob |
| Series: | G Series |
| Size: | 3-3/4 in L x 1-1/4 in W x 1-1/4 in H |
| Terminal Type: | Finger Safe Screw |
| Throw: | Left to Right |
| Type: | 1-Pole Short Rotary |
| Country of origin: | US |
| Material: | Aluminum |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39122216 |
| UPC: | 00783936223049 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell GO25-2A3F Selector Switch
Brand: Hubbell
Part Number: GO25-2A3F
Killark Selector Switch, 1-Pole Short Rotary, Series: G Series, 3-3/4 in L x 1-1/4 in W x 1-1/4 in H Size, 1NC-1NO Contact Configuration, SPST Contact, Maintained Contact Mode, 12/1.2/10 A at 600 VAC Contact, Knob Operator, 2 Positions, Left to Right Throw, Legend: OFF/ON, Finger Safe Screw Terminal, LED Indicator, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G Enclosure, Aluminum, Black, Environmental Conditions: -25 to 40 deg C Ambient
Additional Description: KILL-GO25-2A3F SWITCH, 2POS SEL MAINT 1NO/1NC SHORT
Catalog Description: Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.
GO25-2A3F Application
For use in hazardous locations when installed in enclosures such as B7E, EXB, XJB, DB, SWB, GCS series boxes, B7, Y7 starter enclosures and indoor/outdoor applicationGO25-2A3F Item Features
- Operators are all aluminum except for certain movable parts which are stainless steel
- Threaded bodies are all 3/4 in-14 NPSM thread
- Control stations can be grouped into a single assembly thus reducing installation time and cost
GO25-2A3F Standards
UL File No. E12379|CSA File No. LR11714|Class I Divisions 1 and 2 Groups B, C, D, IIB, IIA, Zone 1 and 2|Class III|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|ATEX CertifiedSKU #2334236Part Number #GO25-2A3FUNSPSC39122216UPC00783936223049
