Part Number # H12591
SKU # 2275248
H12591

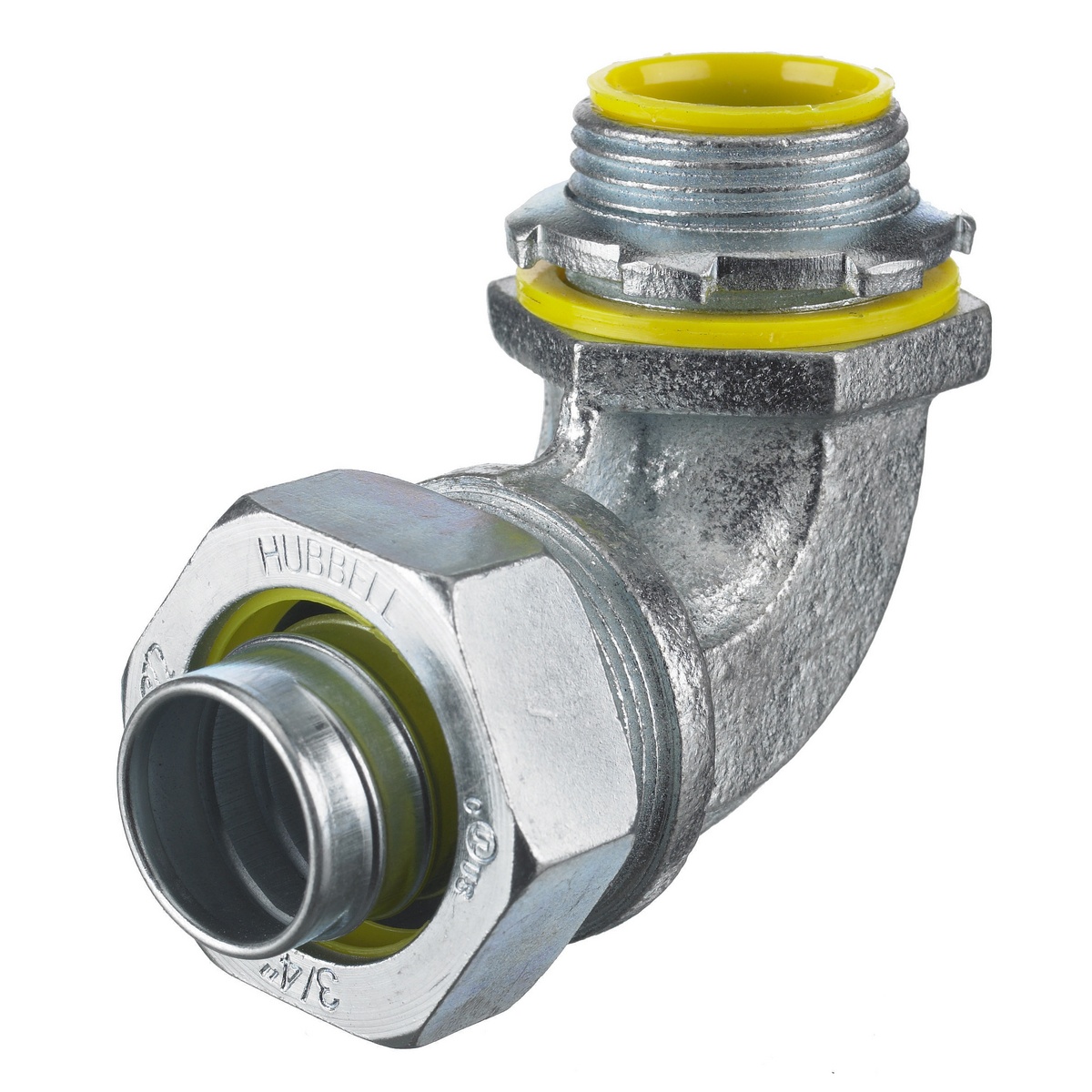

Hubbell H12591 Liquidtight Conduit Connector
Part Number # H12591
SKU # 2275248
Hubbell H12591 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | H12591 |
| SKU #: | 2275248 |
| Type: | Insulated Male Metallic |
| UNSPSC: | 39121420 |
| UPC: | 00783585035451 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell H12591 Liquidtight Conduit Connector
Brand: Hubbell
Part Number: H12591
Hubbell Wiring Device-Kellems, H12591, Liquidtight Connector, Insulated Male Metallic, 1-1/4 in Trade, 90 deg Angle, 1.36 in Throat, For Use With: PolyTuff I Non-Metallic and Liquidtight Metal Conduit, Threaded Mounting, Zinc Plated, 1.97 in L x 2.39 in W x 2.5 in H Dimensions
Additional Description: HUBW-H12591 90 DEG MALE L/T CONN, 1 1/4", STEEL, INS INS""
Catalog Description: Kellems Wire Management, Liquidtight System, 90 Degree Male Liquid Tight Connector, 1 1/4", Steel, Insulated
H12591 Application
Used in wet locations when a listed sealing ring is used between box and fittingH12591 Includes
LocknutH12591 Item Features
- Nylon gasket provides liquidtight seal at hub
- Hexagonal nut compresses gland-ring onto conduit
- https://youtu.be/6SdOpBP_CJk
H12591 Standards
UL 898D/899D|Class II Div 2 NEC 502-4b2|Class III Div 2 NEC 503-3b Hazardous Location|CSA Certified|Hazardous Location per, Class I, Division 2, Class II, Division 1/2, Class III, Division 1/2|UL 514BH12591 Warranty
LimitedSKU #2275248Part Number #H12591UNSPSC39121420UPC00783585035451
Image provided may only be a representation of final product and may include optional equipment
