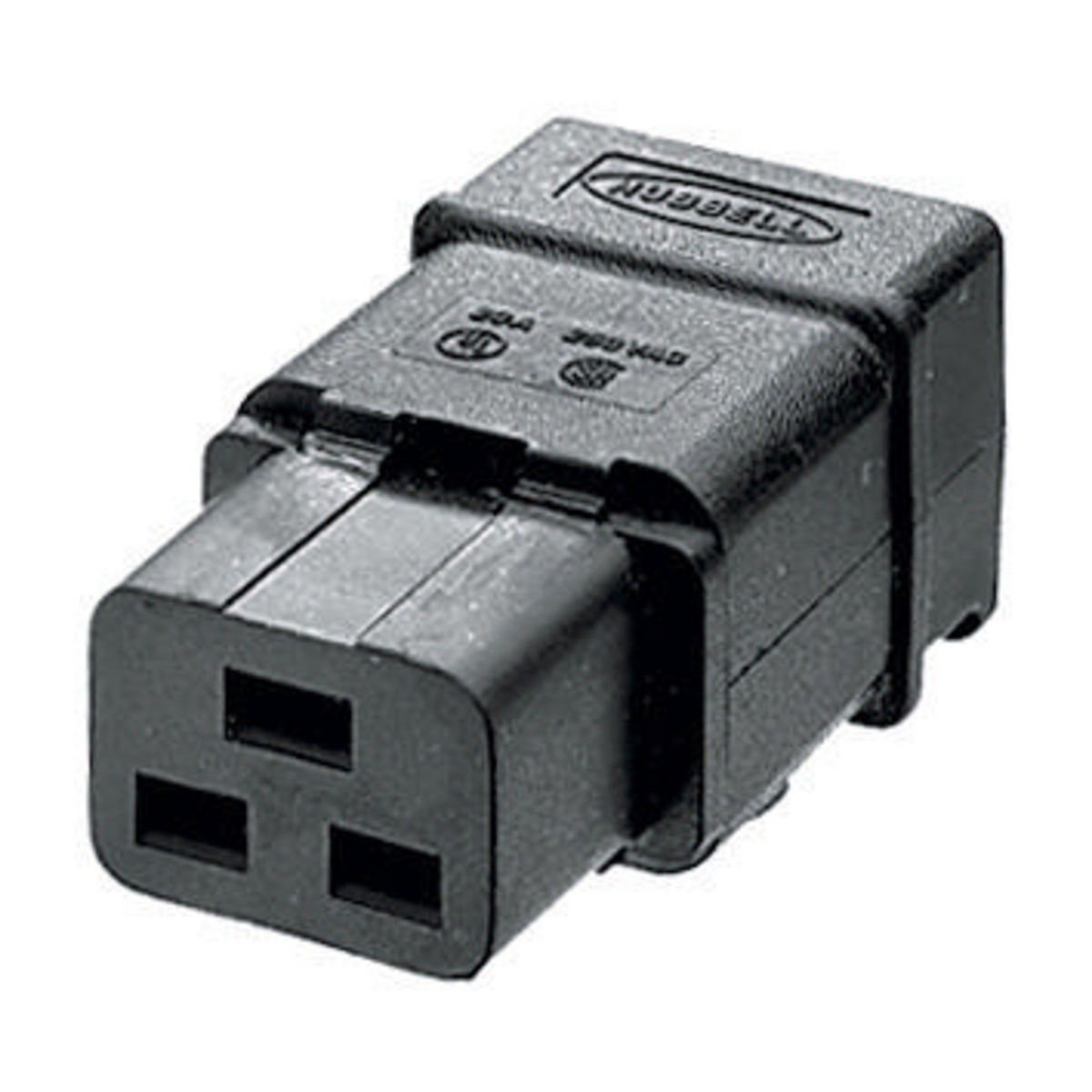

Hubbell H320C Straight Blade Connector
Hubbell H320C Straight Blade Connector
Part #:H320C
SKU #: 2132672
Key Features
Part #:H320C
SKU #: 2132672
Brand: Hubbell
Amperage Rating: 20, 20 A
Cord Diameter: 0.275 to 0.475, 0.275 to 0.475 in
Dimensions: 2.74 x 1.42 x 1.36 in, 2.75 in H x 1.42 in W
Enclosure: IP20
Number of Poles: 2
- Hinged one-piece body design for easy assembly
- Two captive multiple drive assembly screws
- Nylon-black housing material, retainer material and cord clamp material
- 0.04 in brass contact blades material
- #8-32 steel, (green finish) ground screw material
- Nylon base
- 0.032 in brass power contact material
- Withstands 2000 VAC minimum dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Terminals identified in accordance with UL498 (brass, white, green) terminal identification
- 16 to 12 AWG solid or stranded copper conductor terminal accommodation
- Ratings are a permanent part of the device
- -40 to 75 deg C operating temperature
Hubbell H320C Straight Blade Connector
Wiring Device-Kellems Straight Blade Connector, Female Grounding Insulated Cord Mount, 250 VAC, 20 A, 2 Pole, 3 Wires, Commercial Grade, IP20 Enclosure, 0.275 to 0.475 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 2.74 x 1.42 x 1.36 in
Additional Description: HUBW-H320C IEC320 FEMALE CONN, 20/16A 250V
Catalog Description: Straight Blade Devices, IEC 320 Devices, Female Connector, 16A 250V, International Rated, Pressure Screw Terminal, Black, Single Pack.
