Brand: Hubbell
HBL1201

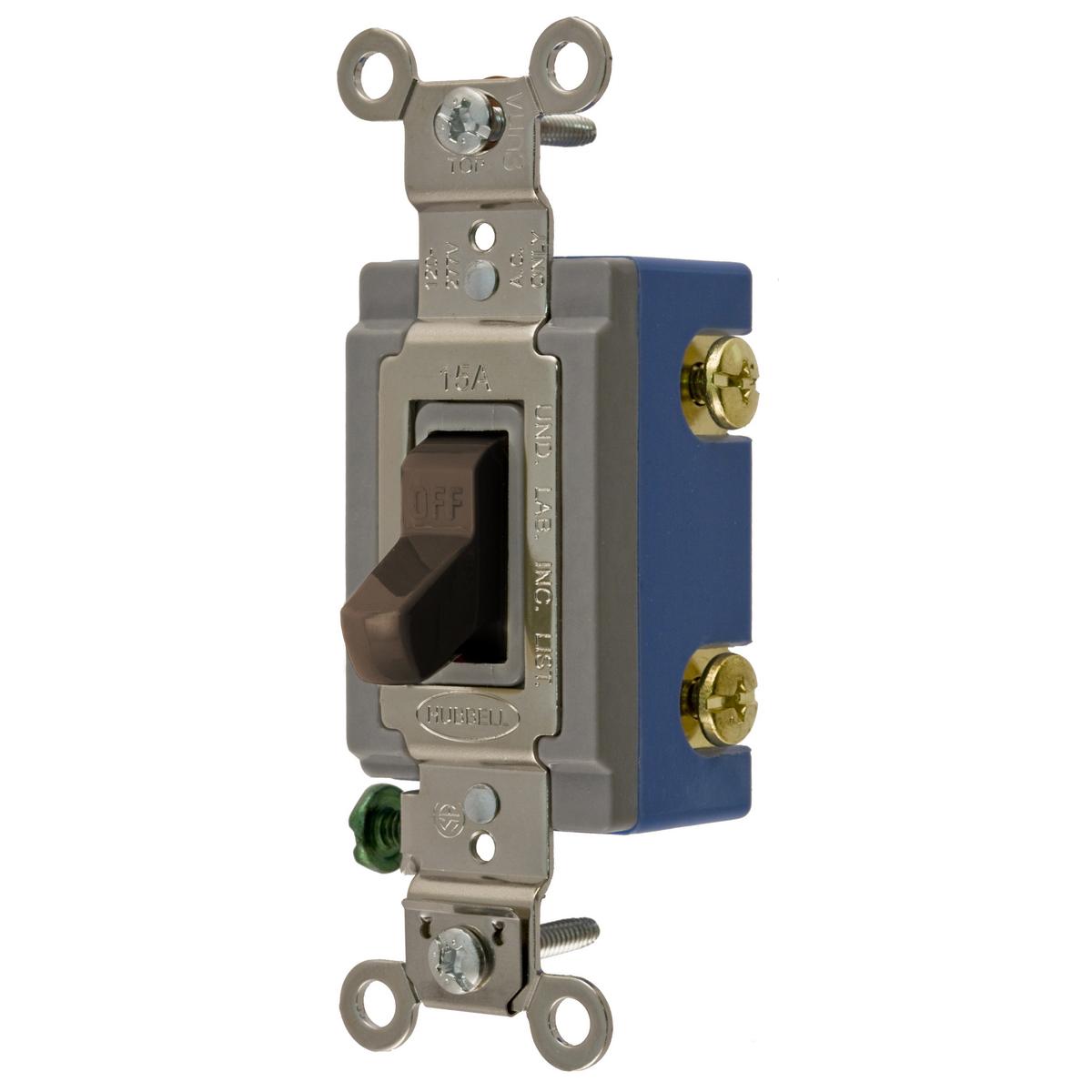

Hubbell HBL1201 Toggle Switch
Part Number # HBL1201
SKU # 18490
$20.29 / Each
Typical price:$26.20 / Each
Hubbell HBL1201 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL1201 |
| SKU #: | 18490 |
| Actuator: | Toggle |
| Amperage Rating: | 15, 15 A |
| Contact Configuration: | 2-Position |
| Dimensions: | 4.06 in L x 1.31 in W x 1.87 in H, 4.06 x 1.31 x 1.87, 4.06 x 1.31 x 1.87 in |
| Environmental Conditions: | -40 to 75, -40 to 75 deg C, -40 to 75 deg C Operating Temperature |
| Mounting: | Threaded |
| Number of Poles: | 1 |
| Operating Cycles: | 50000, 50000 cycles |
| Series: | HBL |
| Terminal Type: | Back/Side Wire, Back/Side Wired |
| Type: | Extra Heavy Duty General Purpose Standard |
| Color: | Brown |
| Country of origin: | CN |
| Material: | Thermoset |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39122211 |
| UPC: | 00783585430003 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$20.29 / Each
Typical price:$26.20 / Each
Quantity:
- Hubbell Wiring Device-Kellems, HBL1201, Toggle Switch, Extra Heavy Duty General Purpose Standard, Series: HBL, 120 to 277 V AC, 15 A, 4155 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Thermoset, Brown, Environmental Conditions: -40 to 75 deg C, 4.06 x 1.31 x 1.87 in Dimensions
HBL1201 Application
Industrial Applications and Indoor Dry EnvironmentHBL1201 Item Features
- Large brass binding head screws with deep slots
- Abuse resistant nylon toggle
- Strip gauge for accurate wiring
HBL1201 Standards
RoHS Compliant|CSA Certified|UL94 V-2 Flammability Rating|UL 20|Federal Specification W-S-896|NEMA WD1SKU #18490Part Number #HBL1201UNSPSC39122211UPC00783585430003
