HBL13R22

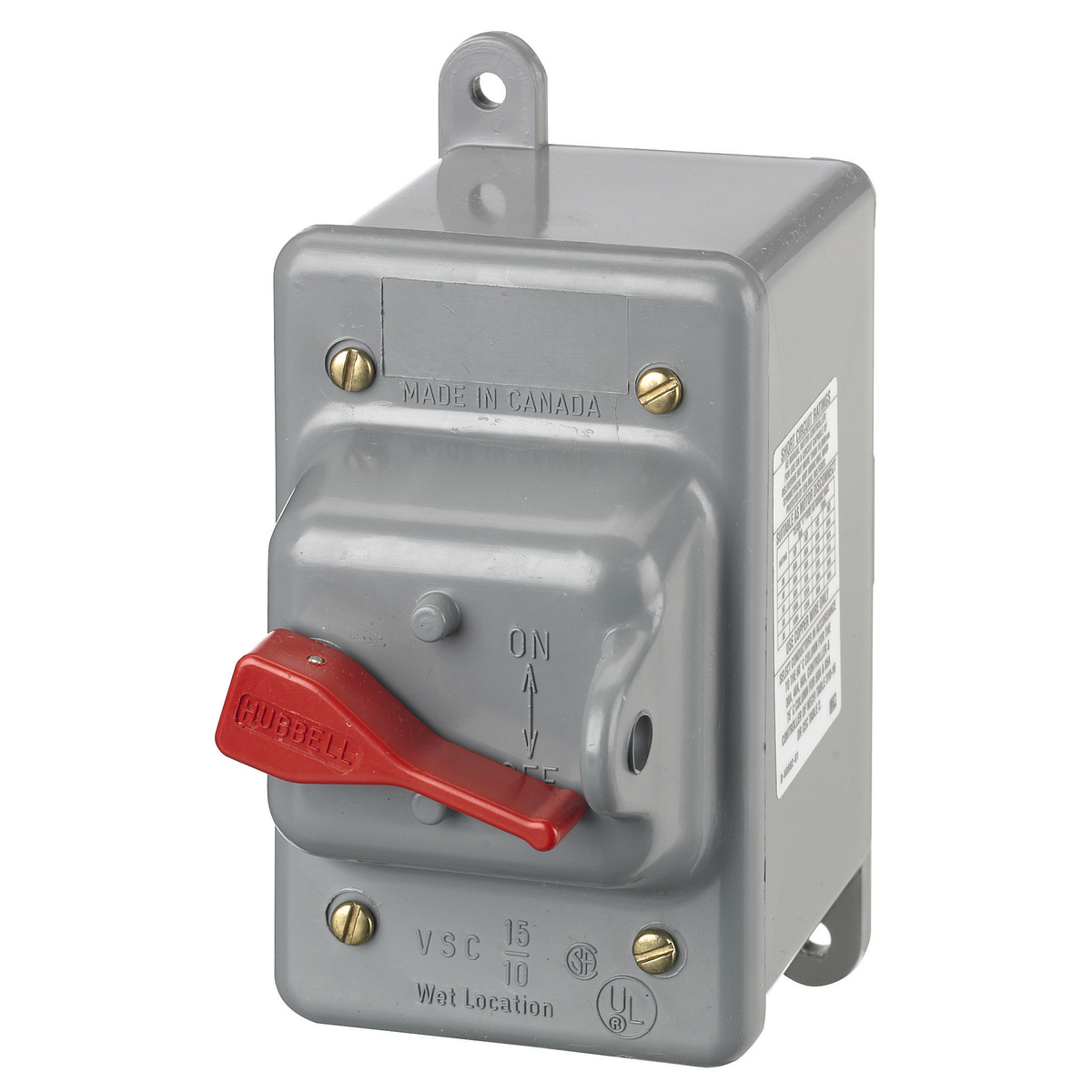

Hubbell HBL13R22 HBL Switched Disconnects and Enclosures, 600 VAC, 30 A, 15 hp, 2 Poles
Part Number # HBL13R22
SKU # 2410396
$115.50 / Each
Typical price:$177.00 / Each
Hubbell HBL13R22 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL13R22 |
| SKU #: | 2410396 |
| Amperage Rating: | 30 A |
| Dimensions: | 4.55 in H x 2.99 in W x 5.42 in L |
| Enclosure Type: | NEMA 3/3R |
| Horsepower: | 15 hp |
| Number of Poles: | 2 |
| Phase: | 1 |
| Series: | HBL |
| Short Circuit Current Rating (kA): | 60 A |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | Disconnect Switch |
| Color: | Gray |
| Country of origin: | CN, US |
| Mounting type: | Screw |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121521 |
| UPC: | 00783585680958 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$115.50 / Each
Typical price:$177.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems, HBL13R22, Switched Disconnects and Enclosures, Series: HBL, 600 V AC, 30 A, 15 hp, 1 ph, 2 Pole, 60 A Short Circuit, NEMA 3/3R Enclosure, Pressure Screw Terminal, -40 to 75 deg C, 4.55 in H x 2.99 in W x 5.42 in L Dimensions, Gray
HBL13R22 Application
For Red HandleHBL13R22 Item Features
- Non-metallic enclosure
- Thermoset body provides resistance to electrical arc tracking
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
HBL13R22 Standards
CSA-C22.2 No.14|Industrial Control File LR-46186|UL 508|Industrial Control File E70402SKU #2410396Part Number #HBL13R22UNSPSC39121521UPC00783585680958
