Part Number # HBL13S33D
SKU # 2152021

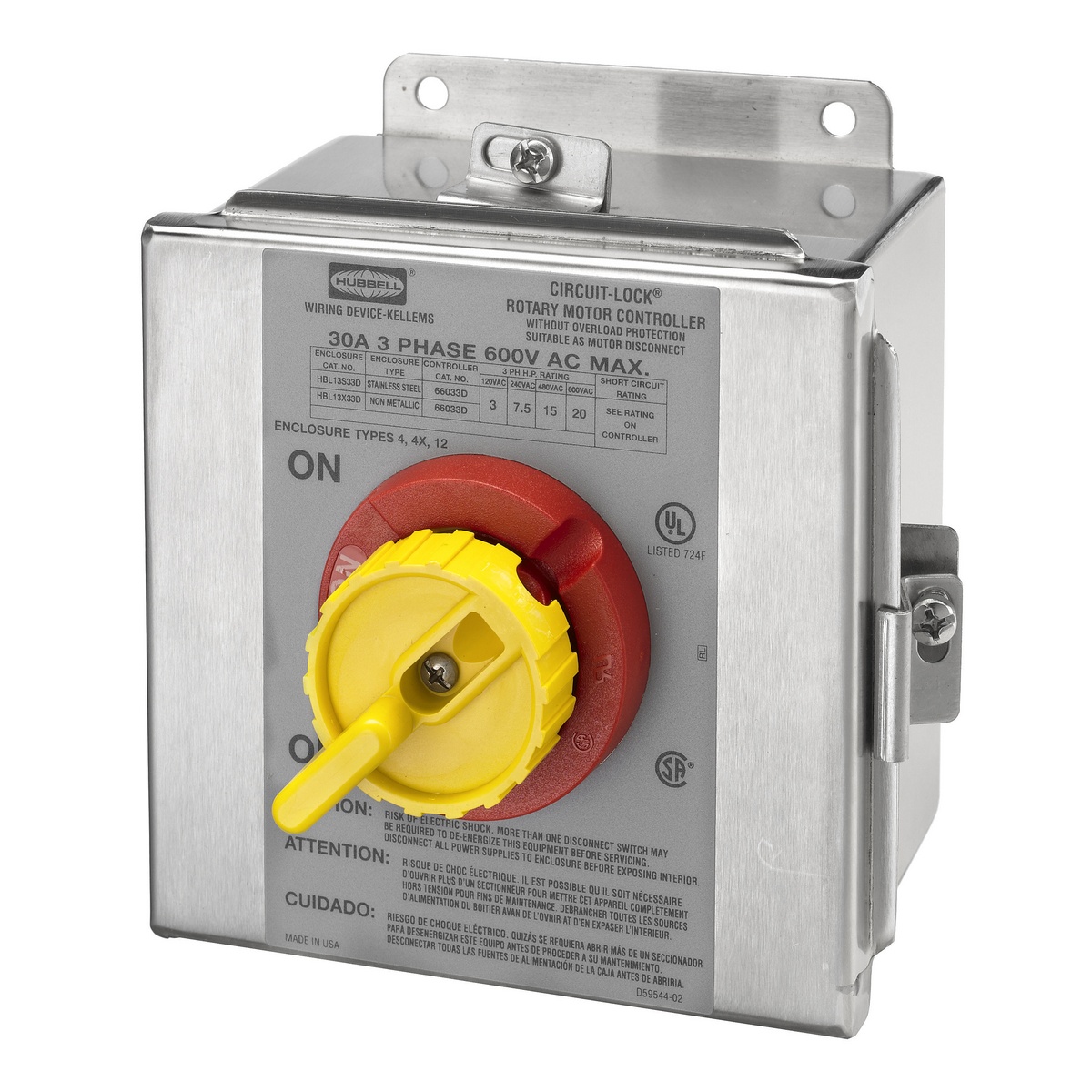

Image provided may only be a representation of
final product and may include optional equipment
HBL13S33D
Hubbell HBL13S33D Disconnect Switch
Part Number # HBL13S33D
SKU # 2152021
Hubbell HBL13S33D Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL13S33D |
| SKU #: | 2152021 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 6.75 in L x 6.96 in W x 4 in H, 6.75 x 6.96 x 4 in |
| Enclosure Type: | NEMA 4X |
| Horsepower: | 20, 20 hp |
| Number of Poles: | 3 |
| Phase: | 3, 3 ph |
| Temperature Rating (Degrees F): | -40 deg C, -40 to 75 |
| Terminal Type: | Pressure Screw, Screw |
| Type: | Back/Side Wired Enclosed Industrial Grade Non-Fused Standard |
| Country of origin: | PR, US |
| Material: | Stainless Steel |
| Mounting type: | Threaded |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121521 |
| UPC: | 00783585202723 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL13S33D Disconnect Switch
Brand: Hubbell
Part Number: HBL13S33D
Wiring Device-Kellems Circuit-Lock Disconnect Switch, Back/Side Wired Enclosed Industrial Grade Non-Fused Standard, 600 V, 30 A, 20 hp, 3 ph, 3 Pole, NEMA 4X Enclosure, Threaded Mounting, Screw Terminal, -40 deg C, 6.75 x 6.96 x 4 in, Stainless Steel
Additional Description: HUBW-HBL13S33D 30A 600V 3P RTRY DISC SW 4X SS
Catalog Description: Switches and Lighting Controls, Industrial Grade, Rotary Switches, Motor Disconnects, Three Pole, 30A 600V AC, Back and Side Wired, Stainless, NEMA 4X Enclosure with Switch
HBL13S33D Application
Wash Down Environments like Food Processing, Laboratories, Motor Starting without Overload Protection, Indoor and Outdoor ApplicationsHBL13S33D Item Features
- Hinged Cover with removable continuous pin
- Stainless steel enclosure for chemical and corrosion resistant
HBL13S33D Standards
UL508 File No. E70402|CSA C22.2 No.14 File No. LR46186SKU #2152021Part Number #HBL13S33DUNSPSC39121521UPC00783585202723
