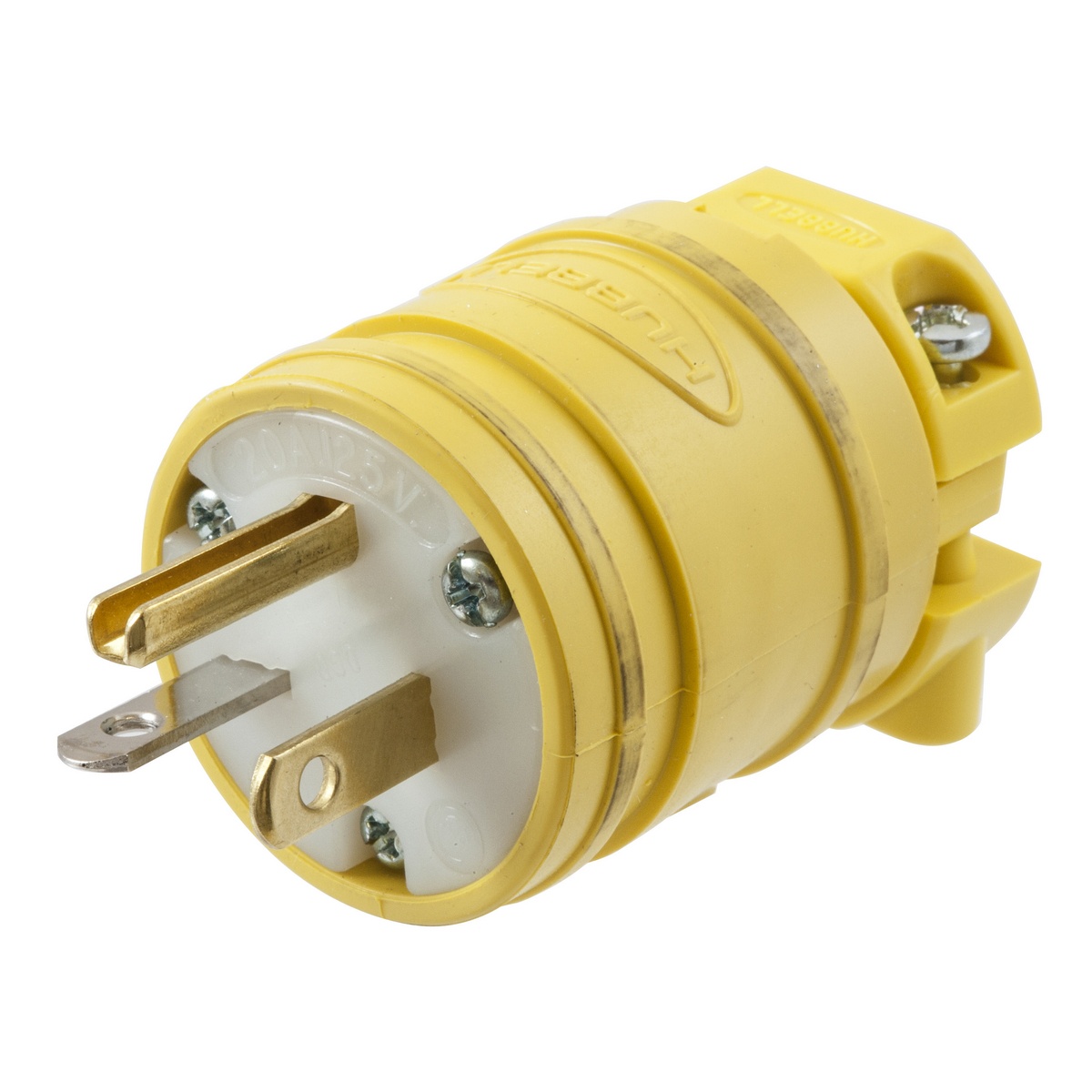

Hubbell HBL1433 Straight Blade Plug
Image Disclaimers Message
Hubbell HBL1433 Straight Blade Plug
Hubbell HBL1433 Straight Blade Plug
Part #:HBL1433
SKU #: 2238979
Key Features
Part #:HBL1433
SKU #: 2238979
Brand: Hubbell
Amperage Rating: 20, 20 A
Cord Diameter: 0.3 to 0.655, 0.3 to 0.655 in
Dimensions: 1.55 in Dia x 2.19 in L, 2.19 x 2.19 x 1.55 in
Enclosure: IP20
Horsepower: 1/2 hp
- Thermoplastic elastomer housing
- Nylon yellow cord clamp
- 0.04 in copper alloy ground contact blade
- #8-32 brass nickel plated for neutral terminal screw
- #8-32 brass, multiple drive (green) ground screw
- Withstands 2000 VAC minimum dielectric voltage
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
- Dust and moisture seal around cord
- All portable cord
- Indoor dry unless protected by additional mean environmental conditions
- Cord mounted
- Nylon natural blade holder
- Polycarbonate clear retainer
Hubbell HBL1433 Straight Blade Plug
Wiring Device-Kellems Elastogrip Straight Blade Plug, 1-Phase Dusttight Grounding Male Cord Mount, 125 VAC, 20 A, 2 Pole, 3 Wires, 5-20P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.3 to 0.655 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Yellow, 2.19 x 2.19 x 1.55 in
Additional Description: HUBW-HBL1433 ELASTOGRIP PLUG, 20A 125V, 5-20P
Catalog Description: Straight Blade Devices, Male Plug, Elasto-Grip Dust Tight, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 20A 125V, 5-20P, Yellow, Single Pack.
