Part #:HBL14W33
SKU #: 143636
Key Features
Part #:HBL14W33
SKU #: 143636
Brand: Hubbell
Amperage Rating: 20, 20 A
Cord Diameter: 0.3 to 0.655, 0.3 to 0.655 in
Dimensions: 2.63 in L x 1.56 in W, 2.67 x 1.55 x 2.67 in
Enclosure: IP55
Horsepower: 1/2, 1/2 hp
- Withstands 2000 VAC dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Terminals identified in accordance with UL 498 (brass, white, green)
- 14 to 10 AWG solid or stranded copper conductor terminal accommodation
- UL 94-HB or better flammability rating
- 0.06 in brass contact blades, 0.04 in copper alloy blades
- #8-32 brass/nickel plated for neutral terminal screw, #8-32 brass multiple drive (green) ground screw
- Integral weatherproofing shroud seals connection between plug and connector
- Yellow PVC housing, natural nylon blade holder, clear polycarbonate retainer, yellow nylon cord clamp

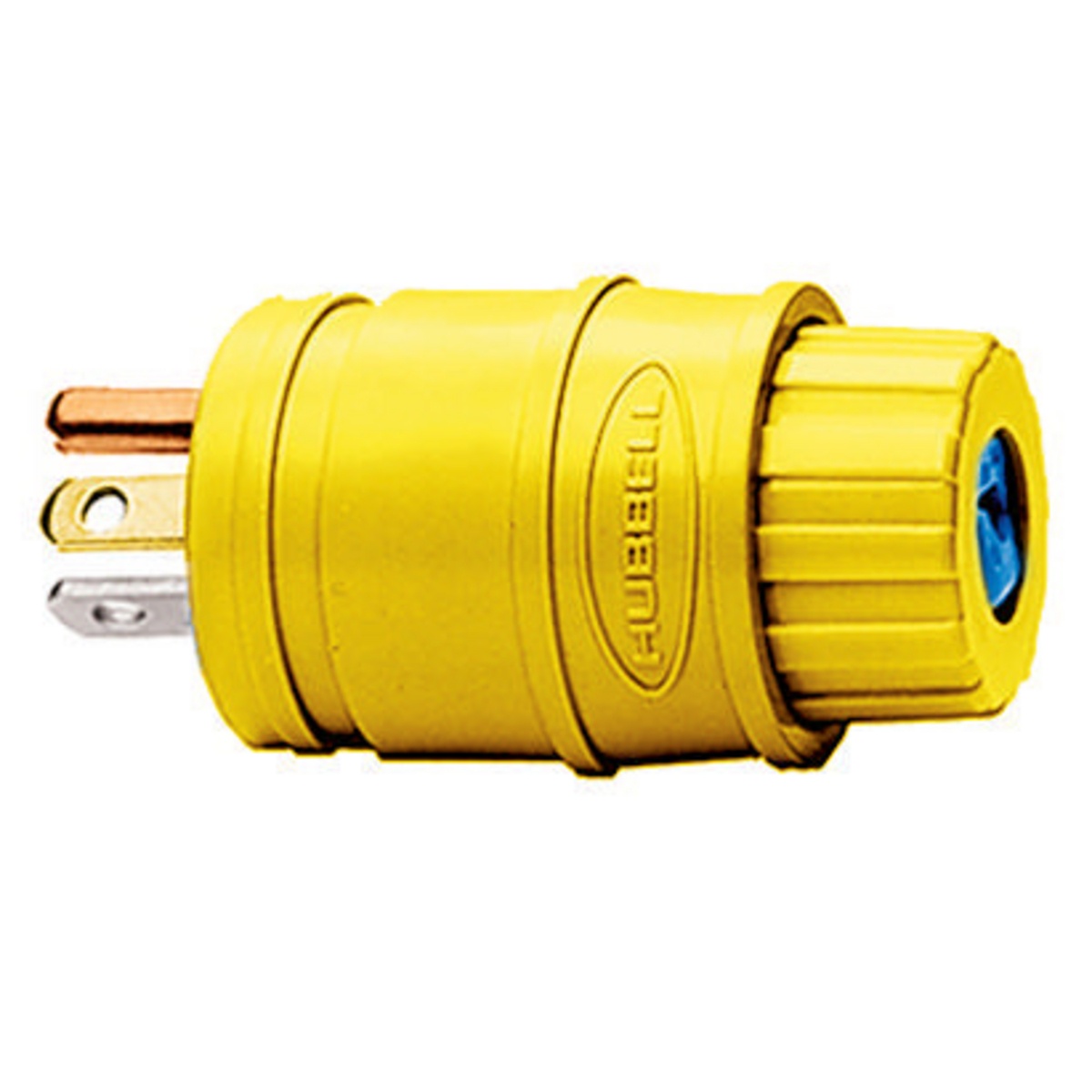

Hubbell HBL14W33 Straight Blade Plug
Wiring Device-Kellems Elastogrip Straight Blade Plug, 1-Phase Grounding Watertight Standard Cord Mount Weather Resistant, 125 VAC, 20 A, 1/2 hp, 2 Pole, 3 Wires, 5-20P NEMA Rating, Commercial/Industrial Grade, IP55 Enclosure, 0.3 to 0.655 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Yellow, 2.67 x 1.55 x 2.67 in
Additional Description: HUBW-HBL14W33 ELASTOGRIP W/T PLUG, 20A 125V, 5-20P PLUG
Catalog Description: Straight Blade Male Plug, Elasto-Grip Watertight, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 20A 125V, 5-20P
