Brand: Hubbell
HBL15MRW

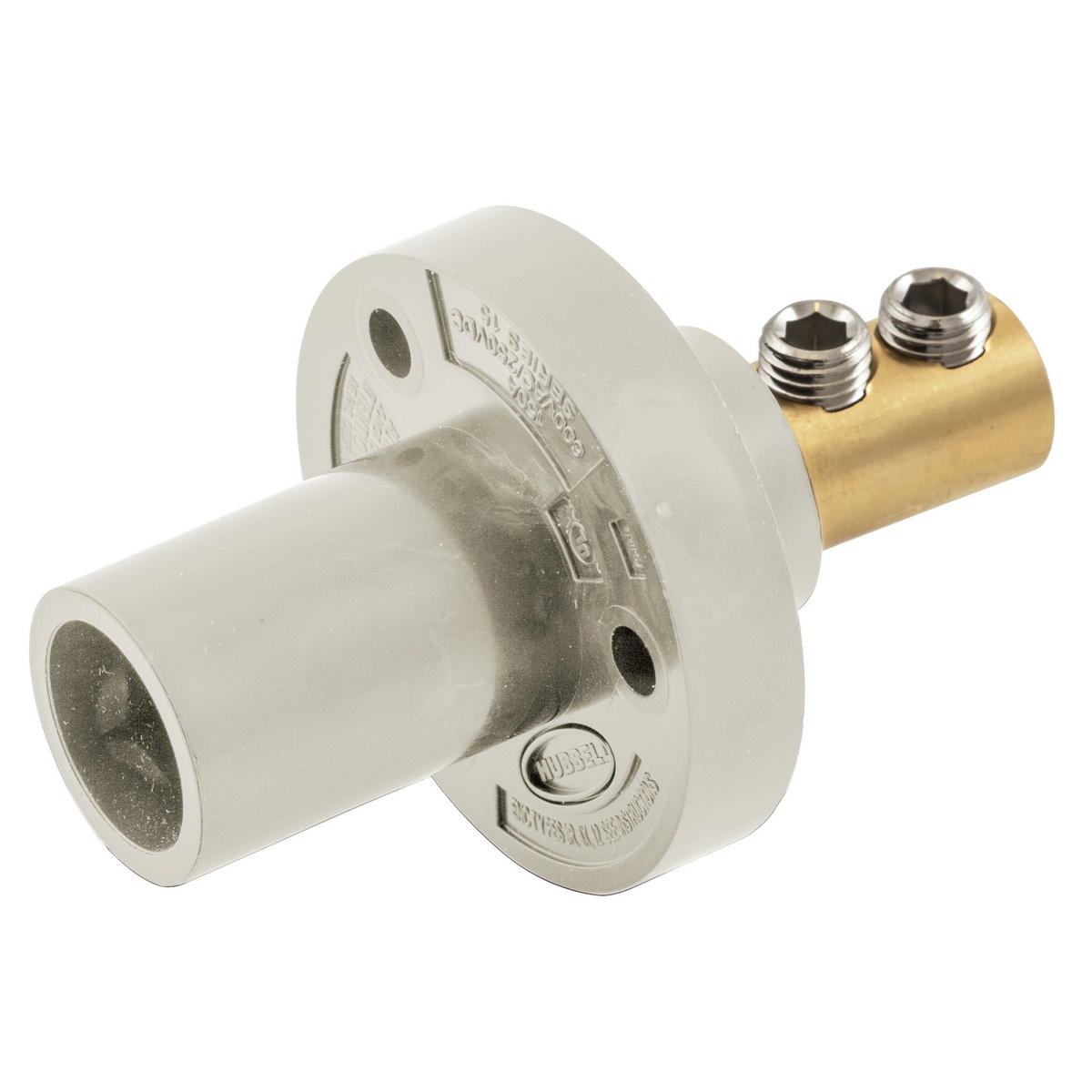

Hubbell HBL15MRW Bryant Electric Wiring Device-Kellems Single Pole Receptacle
Part Number # HBL15MRW
SKU # 2387673
$36.93 / Each
Typical price:$47.70 / Each
Hubbell HBL15MRW Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL15MRW |
| SKU #: | 2387673 |
| Amperage Rating: | 150, 150 A |
| Dimensions: | 1.86 in Dia x 2.9 in L |
| NEMA Rating: | NEMA 3R/4X/12 |
| Series: | 15 Series |
| Specifications: | 1 ph, (3) 0.2 in Mounting Hole, (2) 5/32 Socket Head Set Screws, 90000 W, Nylon Retaining Screw, 1 ph, 1-Pin, 90000 W |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Type: | 1-Pole Extra Heavy Duty Male Standard, Cam Type Extra Heavy Duty Industrial |
| Wire Size: | 4, 8 to 2 AWG, 4 to 4/0 AWG |
| Color: | White |
| Connection type: | Double Set Screw, Male/Double Set Screw |
| Contact material: | Brass |
| Country of origin: | US |
| Housing material: | Thermoplastic, Thermoplastic Elastomer |
| Mounting type: | Panel/Through Hole, SC/PPC/Threaded |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585458137 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$36.93 / Each
Typical price:$47.70 / Each
Quantity:
- Bryant Electric Wiring Device-Kellems Single Pole Receptacle, Cam Type Extra Heavy Duty Industrial, Series: 15 Series, 600 VAC/VDC, 250 VDC, 150 A, 8 to 2 AWG, 4 to 4/0 AWG Wire, Male/Double Set Screw Connection, Brass Contact, Thermoplastic Elastomer Housing Material, NEMA 3R/4X/12 NEMA Rating, Panel/Through Hole Mounting, Specifications: 1 ph, (3) 0.2 in Mounting Hole, (2) 5/32 Socket Head Set Screws, 90000 W, Nylon Retaining Screw, -40 to 60 deg C, White, 1.86 in Dia x 2.9 in L Dimensions
HBL15MRW Standards
UL Listed|cULus Listed|NEC Certified|ANSI/NFPA 70|UL94 Flammability Rating|CSA 22.2. 0.17SKU #2387673Part Number #HBL15MRWUNSPSC39121406UPC00783585458137
