Brand: Hubbell

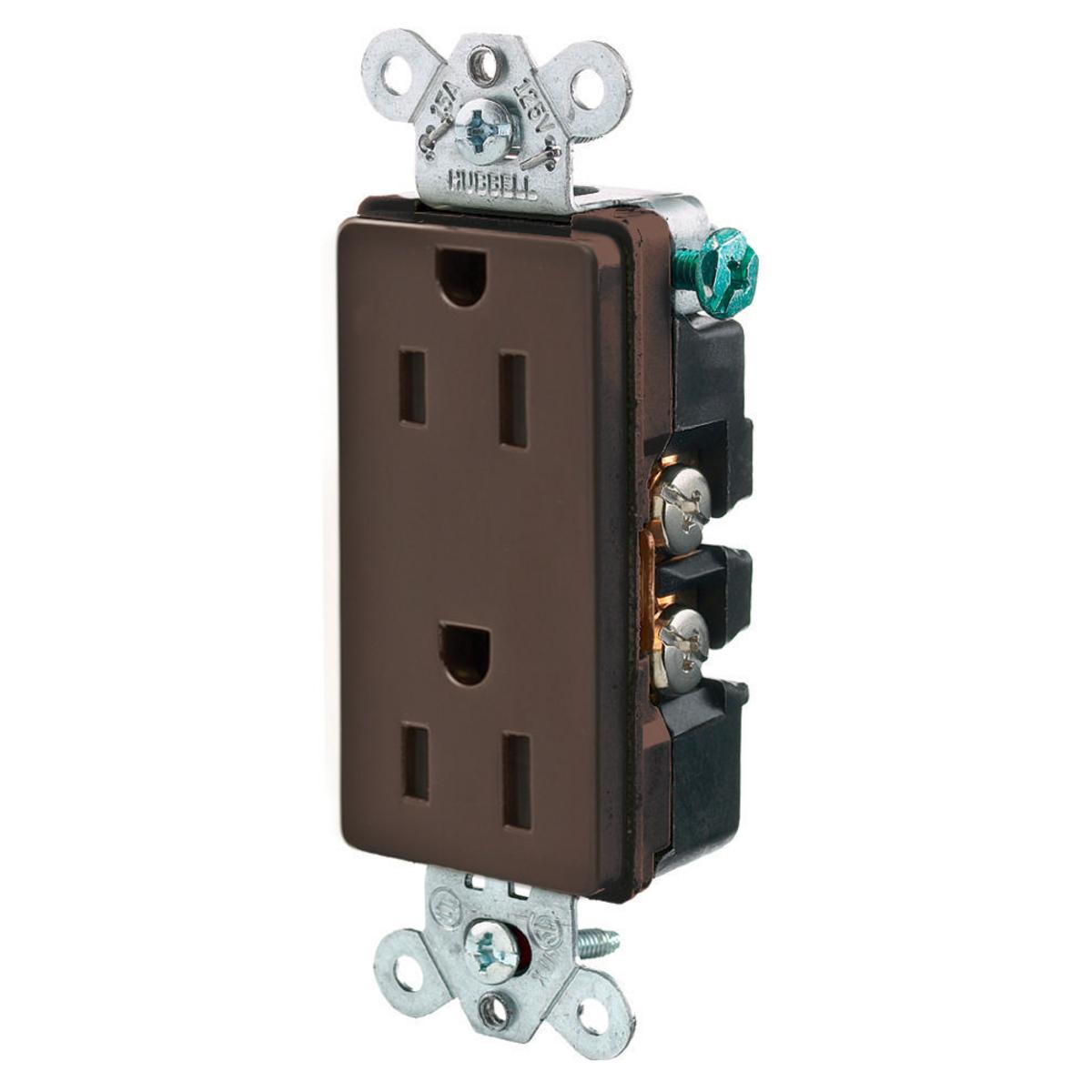

Hubbell HBL2152 Straight Blade Receptacle
Image Disclaimers Message
Brand: Hubbell
Hubbell HBL2152 Straight Blade Receptacle
Brand: Hubbell
Hubbell HBL2152 Straight Blade Receptacle
Part #:HBL2152
SKU #: 2232237
$16.57/EA
Key Features
Part #:HBL2152
SKU #: 2232237
Brand: Hubbell
Amperage Rating: 15, 15 A
Dimensions: 3.28 in H x 1.36 in W x 1.03 in D, 3.28 x 1.36 x 1.03 in
Horsepower: 1/2, 1/2 hp
NEMA Rating: 5-15R, NEMA 5-15R
Number of Poles: 2
$16.57/EA
- HBL extra heavy duty compact receptacle
- Aesthetic Style Line decorator design
- Triple wipe contact design
- Nylon face and PBT base
- Brass contacts and terminal screws, plated brass wire clamp, brass ground contact, galvanized steel mounting strap, stainless steel automatic self-grounding clip
- Certified for current interrupting at full rated current
- Withstands 2000 VAC minimum dielectric voltage
- Terminals identified in accordance with UL 498 and CSA certified
Specifications
Brand: Hubbell
Amperage Rating: 15, 15 A
Dimensions: 3.28 in H x 1.36 in W x 1.03 in D, 3.28 x 1.36 x 1.03 in
Horsepower: 1/2, 1/2 hp
NEMA Rating: 5-15R, NEMA 5-15R
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Back and Side Wire/Screw, Back/Side Wired Screw
Type: 1-Phase Decorator Duplex Heavy Duty Self-Grounding Standard, 1-Phase Decorator Duplex Heavy Duty Self-Grounding Standard Screw Mount
Voltage Rating: 125, 125 VAC
Color: Brown
Country of origin: PR, US
Material: Composite/Thermoplastic, Thermoplastic/Composite
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585060309
Item FeaturesIndoor Dry Environment
Item Features
Item FeaturesRoHS Compliant|NEMA WD1/WD5|UL94 V-2 Flammability Rating|UL 498 File No. E2186|CSA C22.2 No. 42 File No. 285|Federal Specification W-C-596
