Brand: Hubbell

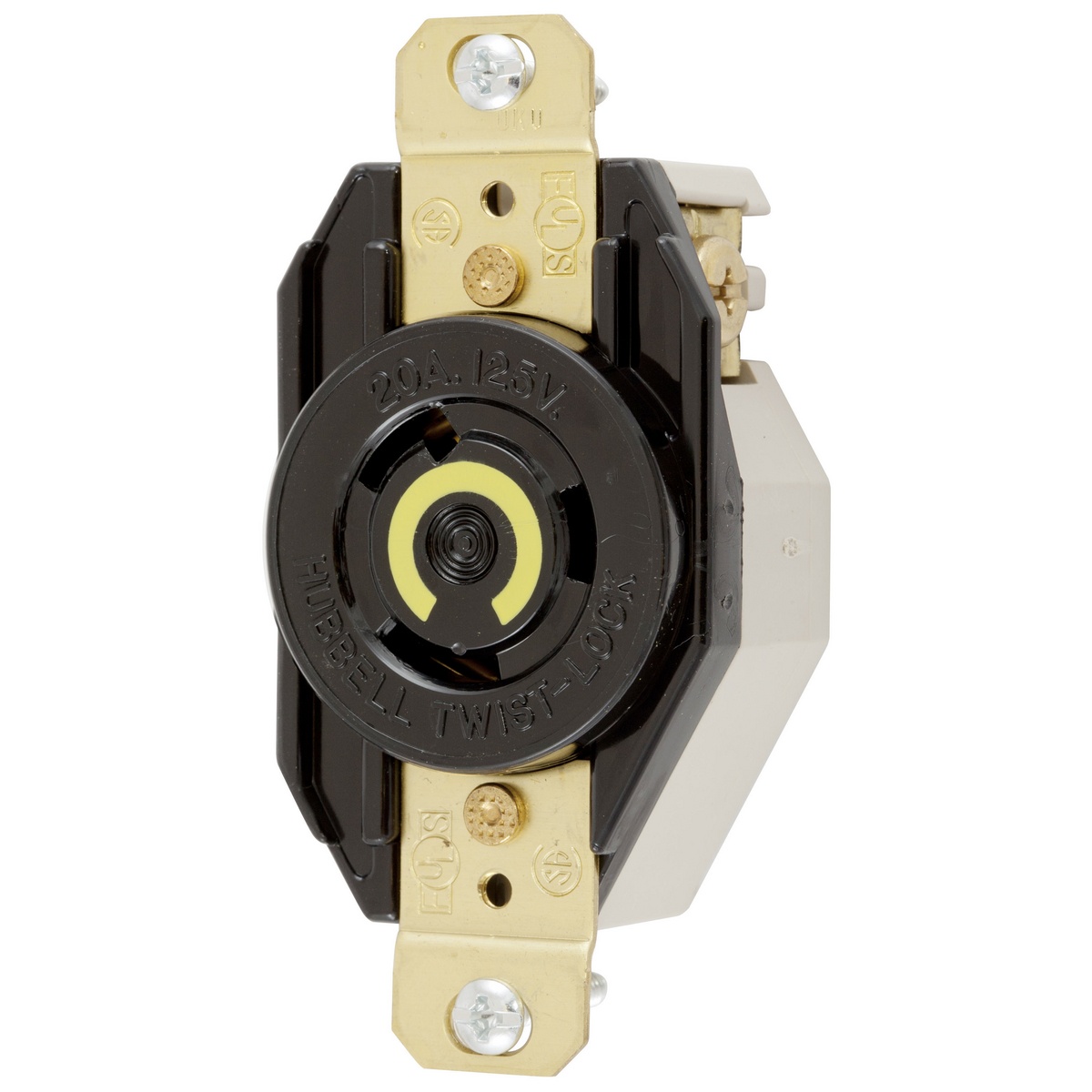

Hubbell HBL2310 Locking Receptacle
Part Number # HBL2310
SKU # 1946811
$31.83 / Each
406 In Stock
Ships in 1 Business Day
Hubbell HBL2310 Key Features
Brand: Hubbell
Part Number # HBL2310
SKU #1946811
Amperage Rating: 20, 20 A
Dimensions: 3.28 in H x 1.7 in W x 1.23 in D, 3.28 x 1.7 x 1.23 in
Enclosure: NEMA 4/4X/12/IP20
Horsepower: 1, 1 hp
NEMA Rating: L5-20R, NEMA L5-20R
Number of Poles: 2
Number of Wires: 3
Series: HBL
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Screw
Type: 1-Phase Flush Mount Grounding Heavy Duty Single Screw Mount, Flush Mount Grounding Heavy Duty Single
Voltage Rating: 125, 125 VAC
Color: Black, Blue
Country of origin: US
Material: Composite/Thermoplastic, Nylon
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585235509
$31.83 / Each
- Wiring Device-Kellems, HBL2310, Locking Receptacle, 1-Phase Flush Mount Grounding Heavy Duty Single Screw Mount, Series: HBL, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, L5-20R NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, Blue, 3.28 x 1.7 x 1.23 in Dimensions
HBL2310 Item Features
- High-impact, abuse-resistant nylon face
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- https://youtu.be/1DnPJu3QNw0
HBL2310 Standards
UL 498|Federal Specification W-C-596|CSA C22.2 No. 42 Certified|NEMA WD1, WD5 Compliant|RoHS Compliant|UL94 Flammability RatingSKU #1946811Part Number #HBL2310UNSPSC39121406UPC00783585235509
