HBL2310M1

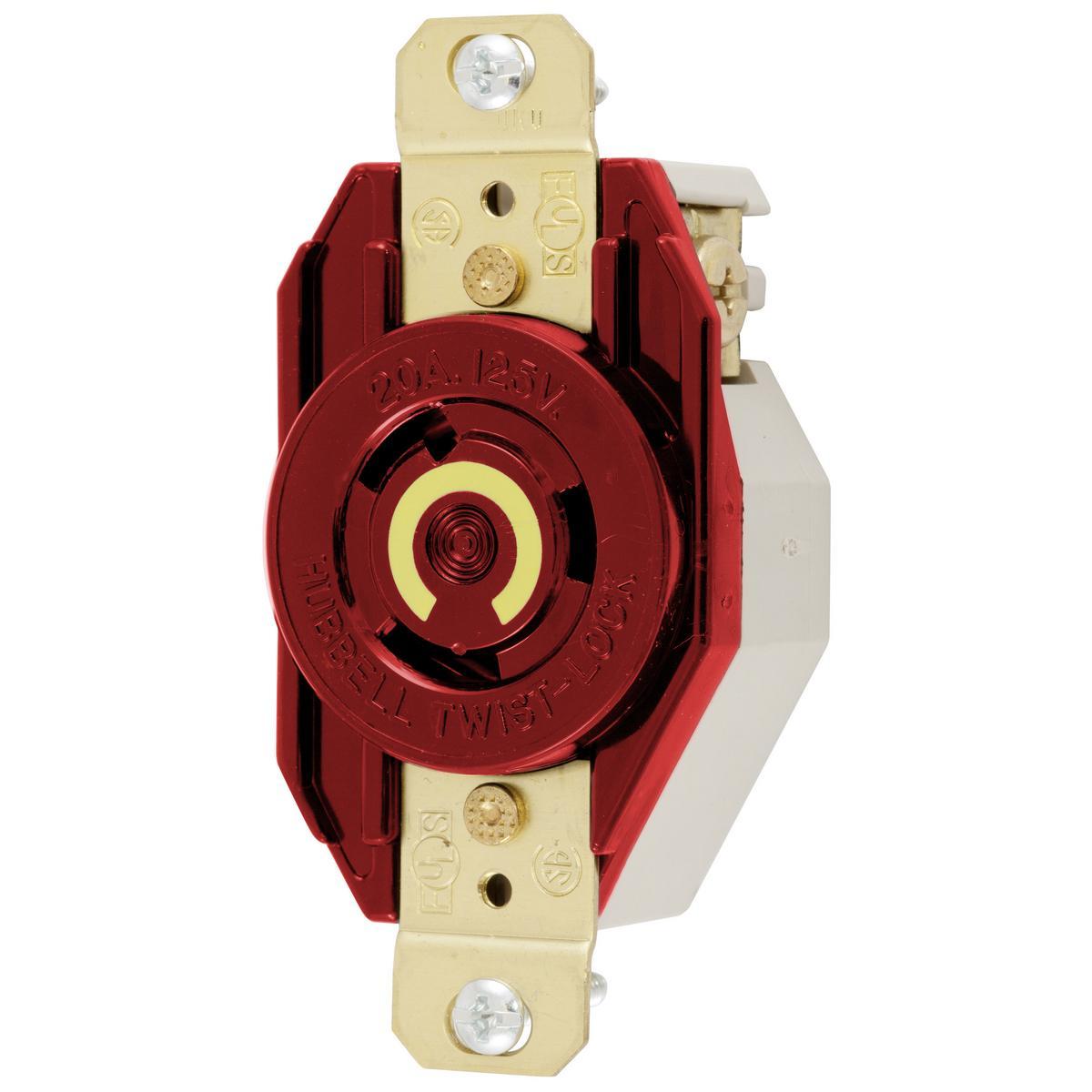

Hubbell HBL2310M1 Hubbell Straight Blade Receptacle
Part Number # HBL2310M1
SKU # 2298540
$33.86 / Each
Typical price:$43.75 / Each
Hubbell HBL2310M1 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2310M1 |
| SKU #: | 2298540 |
| Amperage Rating: | 20 A |
| Horsepower: | 1 hp |
| NEMA Rating: | NEMA L5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Terminal Type: | Screw |
| Type: | Flush Mount Heavy Duty Grounding Standard Single |
| Country of origin: | US |
| Material: | Composite/Thermoplastic, Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585238579 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$33.86 / Each
Typical price:$43.75 / Each
Quantity:
Hubbell HBL2310M1 Hubbell Straight Blade Receptacle
Brand: Hubbell
Part Number: HBL2310M1
Additional Description: HUBW-HBL2310M1 CAT#HBL2310, COLOR MOD, RED
Catalog Description: Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, Screw Terminal, Red
HBL2310M1 Application
Dry Locations and Indoor ApplicationsHBL2310M1 Item Features
- High-impact, abuse-resistant nylon face
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
HBL2310M1 Standards
NEMA WD1/WD5|UL 498SKU #2298540Part Number #HBL2310M1UNSPSC39121406UPC00783585238579
