HBL2310SR2

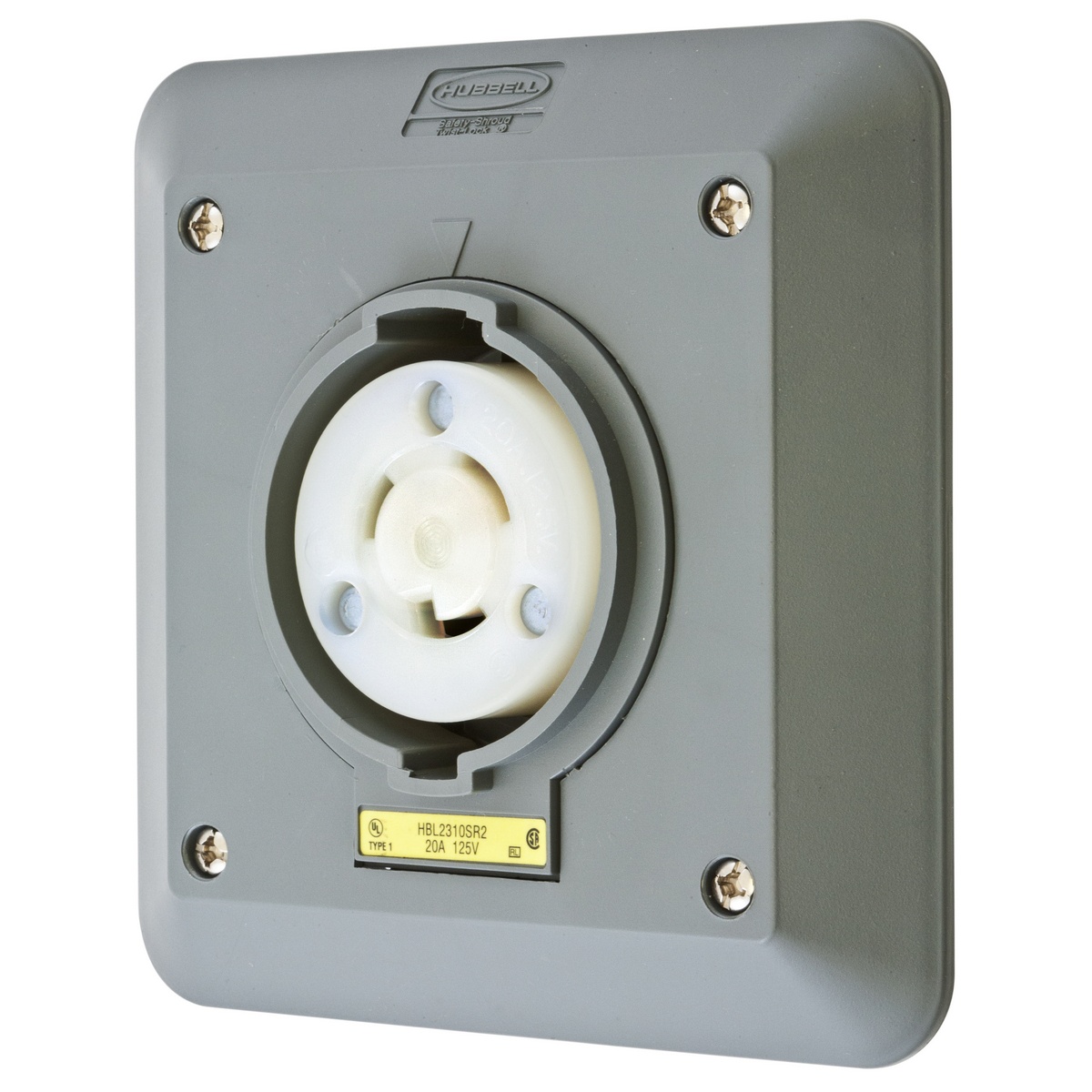

Hubbell HBL2310SR2 Safety-Shroud Twist-Lock Locking Receptacle
Part Number # HBL2310SR2
SKU # 2429051
$37.79 / Each
Typical price:$48.80 / Each
Hubbell HBL2310SR2 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2310SR2 |
| SKU #: | 2429051 |
| Amperage Rating: | 20 A |
| Dimensions: | 5.12 x 5.12 x 2.22 in |
| Enclosure: | IP20 |
| Horsepower: | 1 hp |
| NEMA Rating: | L5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase 2-Gang Heavy Duty Grounding Standard Single Semi-Flush Surface Mount |
| Color: | Gray/White |
| Country of origin: | PR |
| Material: | Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585234045 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$37.79 / Each
Typical price:$48.80 / Each
Quantity:
- Hubbell Wiring Device-Kellems Safety-Shroud Twist-Lock Locking Receptacle, 1-Phase 2-Gang Heavy Duty Grounding Standard Single Semi-Flush Surface Mount, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, L5-20R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Thermoplastic, Gray/White, 5.12 x 5.12 x 2.22 in
HBL2310SR2 Application
Dry Locations and Indoor ApplicationsHBL2310SR2 Item Features
- Accepts Hubbell shrouded and standard NEMA locking plugs
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
- https://youtu.be/1DnPJu3QNw0
HBL2310SR2 Standards
RoHS Compliant|UL 498|CSA C22.2 No. 42/0.17|UL94 Flammability Rating|Federal Specification W-C-596|NEMA WD1/WD5SKU #2429051Part Number #HBL2310SR2UNSPSC39121406UPC00783585234045
