Part Number # HBL2310SW
SKU # 2117726
Image Disclaimers Message
Brand: Hubbell
HBL2310SW

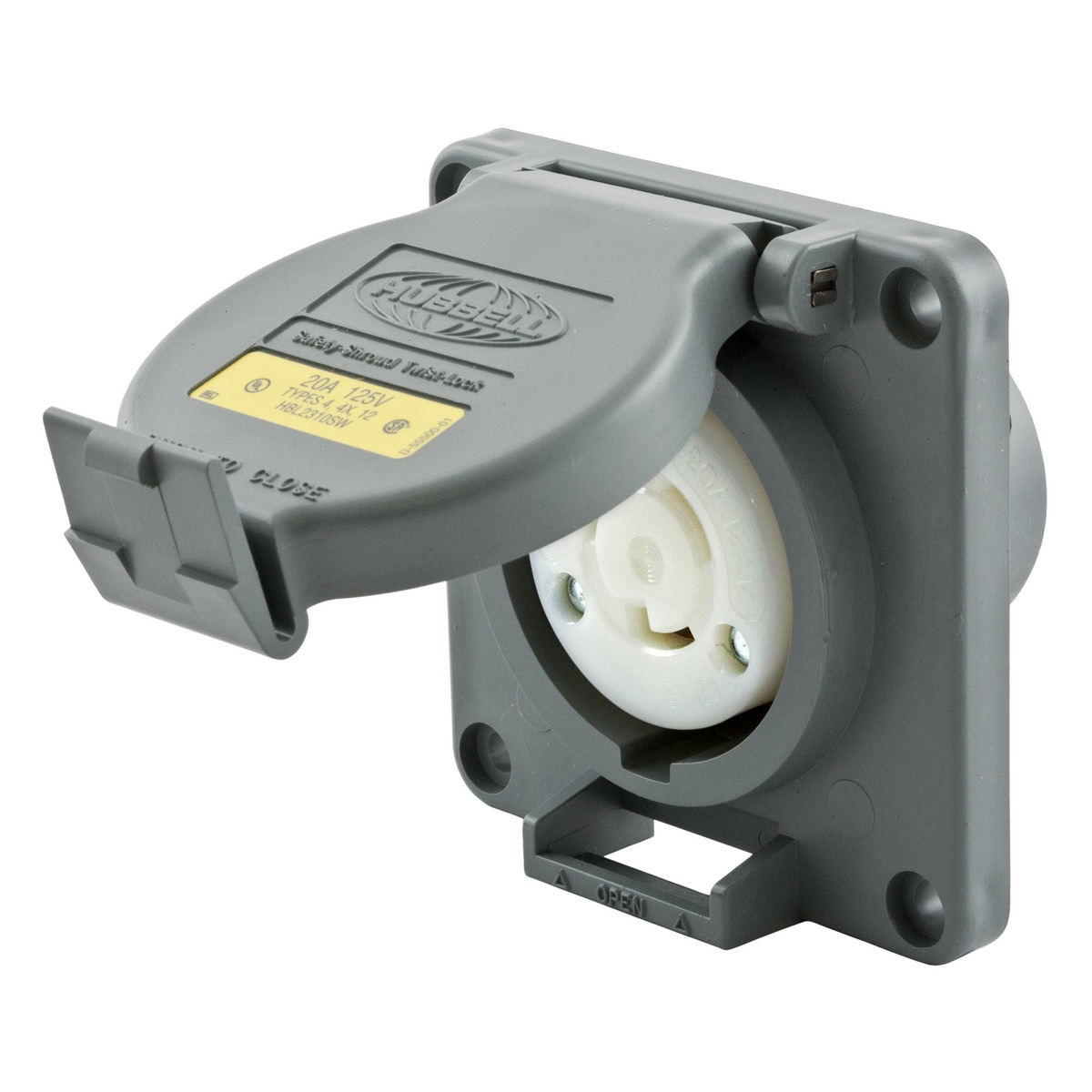

Hubbell HBL2310SW Locking Receptacle
Part Number # HBL2310SW
SKU # 2117726
$124.57 / Each
Typical price:$161.00 / Each
Hubbell HBL2310SW Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2310SW |
| SKU #: | 2117726 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 3.75 in H x 3.75 in W x 2.69 in D, 3.75 x 3.75 x 2.69 in |
| Enclosure: | NEMA 4/4X/12/IP66 |
| Horsepower: | 1, 1 hp |
| NEMA Rating: | L5-20R, NEMA L5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Grounding Heavy Duty Shrouded Single Standard Watertight, 1-Phase Grounding Heavy Duty Shrouded Single Standard Watertight Screw Mount |
| Color: | Gray/White |
| Country of origin: | US |
| Material: | Composite/Thermoplastic, Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585231006 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$124.57 / Each
Typical price:$161.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems Twist-Lock Locking Receptacle, 1-Phase Grounding Heavy Duty Shrouded Single Standard Watertight Screw Mount, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, L5-20R NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, -40 to 75 deg C, Screw Terminal, Thermoplastic, Gray/White, 3.75 x 3.75 x 2.69 in
HBL2310SW Item Features
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
HBL2310SW Standards
RoHS Compliant|UL 498|CSA C22.2 No. 42|Federal Specification W-C-596|NEMA WD1/WD5SKU #2117726Part Number #HBL2310SWUNSPSC39121406UPC00783585231006
