HBL2311

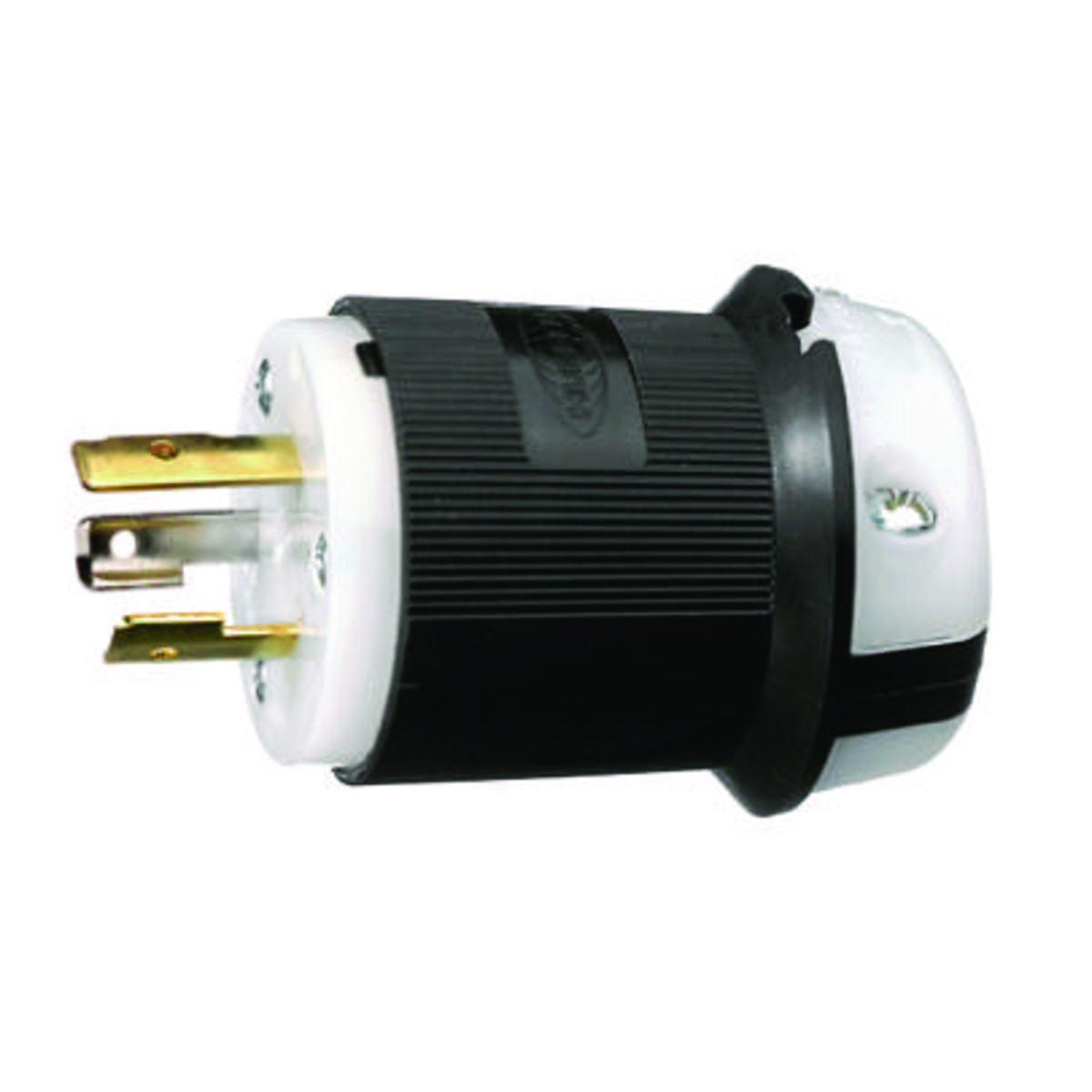

Hubbell HBL2311 Locking Plug
Part Number # HBL2311
SKU # 18550
$27.81 / Each
Typical price:$35.95 / Each
Hubbell HBL2311 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2311 |
| SKU #: | 18550 |
| Cord Diameter: | 0.36 to 0.93 in |
| Dimensions: | 2.26 x 2.26 x 2.75 in |
| Enclosure: | IP20 |
| NEMA Rating: | L5-20P |
| Series: | HBL |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Type: | 1-Phase Grounding Cord Mount |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585037707 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$27.81 / Each
Typical price:$35.95 / Each
Quantity:
- Hubbell Wiring Device-Kellems Twist-Lock Insulgrip, HBL2311, Locking Plug, 1-Phase Grounding Cord Mount, Series: HBL, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, L5-20P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.26 x 2.26 x 2.75 in Dimensions
HBL2311 Application
Power Connection ApplicationsHBL2311 Item Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance
- Superior cord grip design protects terminations from excess strain
- Clear, funnel shaped wire entry for ease of termination
- Integral dust shield protects wiring chamber from dust or contaminants
- https://youtu.be/1DnPJu3QNw0
HBL2311 Standards
NEMA WD1/WD5|UL 498|UL94 Flammability Rating|Federal Specification W-C-596|CSA C22.2 No. 42/0.6|RoHS CompliantSKU #18550Part Number #HBL2311UNSPSC39121402UPC00783585037707
Image provided may only be a representation of final product and may include optional equipment
