Part Number # HBL2311VY
SKU # 214465
HBL2311VY
Hubbell HBL2311VY Locking Plug
Part Number # HBL2311VY
SKU # 214465
Hubbell HBL2311VY Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2311VY |
| SKU #: | 214465 |
| Amperage Rating: | 20, 20 A |
| Cord Diameter: | 0.325 to 0.72, 0.325 to 0.72 in |
| Dimensions: | 1.78 in L x 1.78 in W x 2.5 in H, 1.78 x 1.78 x 2.5, 1.78 x 1.78 x 2.5 in |
| Enclosure: | IP20 |
| Horsepower: | 1, 1 hp |
| NEMA Rating: | L5-20P, NEMA L5-20P |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Grounding Male Standard, 1-Phase Grounding Male Standard Cord Mount |
| Country of origin: | US |
| Material: | Composite, Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585235530 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL2311VY Locking Plug
Brand: Hubbell
Part Number: HBL2311VY
Wiring Device-Kellems Twist-Lock Valise Locking Plug, 1-Phase Grounding Male Standard Cord Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, L5-20P NEMA Rating, IP20 Enclosure, 0.325 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Yellow, 1.78 x 1.78 x 2.5 in
Additional Description: HUBW-HBL2311VY LKG VAL PLUG, 20A 125V, L5-20P, YL
Catalog Description: Locking Devices, Twist-Lock®, Valise®, Male Plug, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20P, Screw Terminal, Yellow Nylon.
HBL2311VY Application
Power Connection and Indoor Dry Environment ApplicationsHBL2311VY Item Features
- One piece body design uses less fasteners for ease of assembly
- Powerful cord grip prevents conductor slippage and strain on wiring terminals
- Totally insulated impact and crush resistant nylon body
- Unique patented clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
HBL2311VY Standards
RoHS Compliant|Federal Specification W-C-596|UL 94/498|CSA C22.2 No. 0.6/42SKU #214465Part Number #HBL2311VYUNSPSC39121402UPC00783585235530

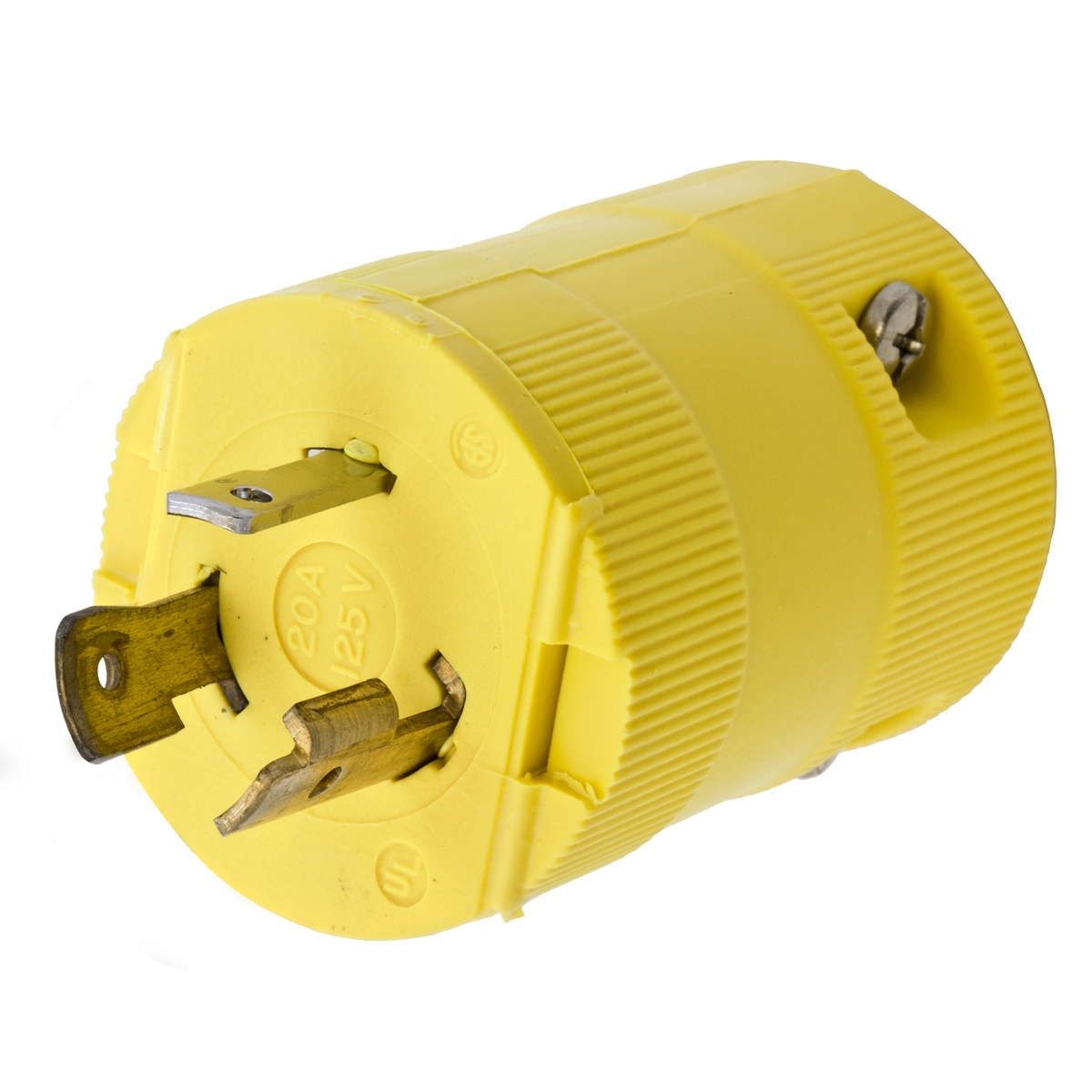

Image provided may only be a representation of final product and may include optional equipment
