Part Number # HBL2313SW
SKU # 83849
Image provided may only be a representation of
final product and may include optional equipment
HBL2313SW

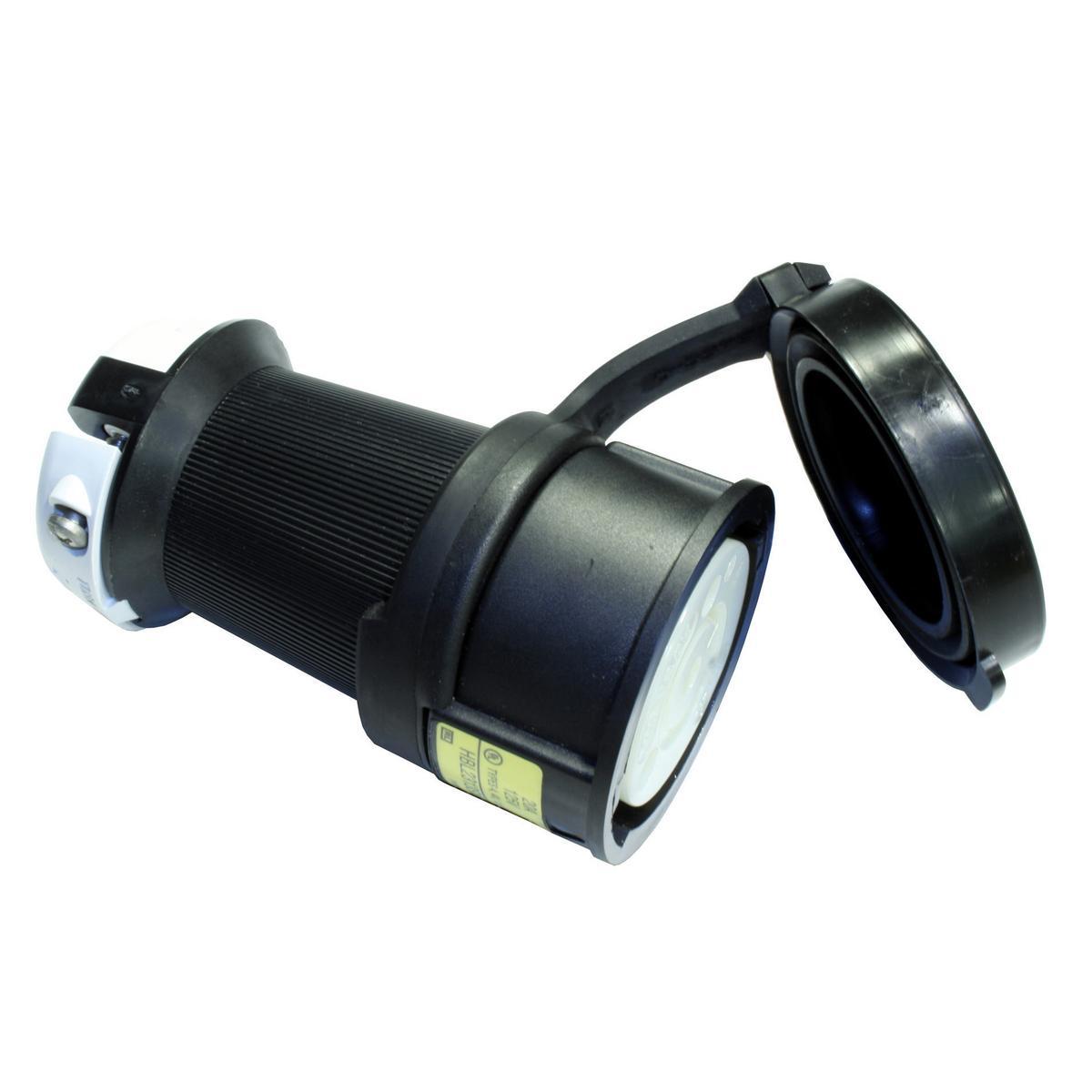

Hubbell HBL2313SW Locking Connector
Part Number # HBL2313SW
SKU # 83849
Hubbell HBL2313SW Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2313SW |
| SKU #: | 83849 |
| Amperage Rating: | 20, 20 A |
| Cord Diameter: | 0.36 to 0.93, 0.36 to 0.93 in |
| Dimensions: | 2.57 x 2.57 x 4.4 in, 4.38 in L x 2.56 in W |
| Enclosure: | NEMA 4/4X/12/IP66 |
| Horsepower: | 1, 1 hp |
| NEMA Rating: | L5-20R, NEMA L5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | HBL |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | Grounding Heavy Duty Shrouded Watertight, Grounding Heavy Duty Shrouded Watertight Cord Mount |
| Country of origin: | US |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585231044 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL2313SW Locking Connector
Brand: Hubbell
Part Number: HBL2313SW
Wiring Device-Kellems Twist-Lock Insulgrip Locking Connector, Grounding Heavy Duty Shrouded Watertight Cord Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, L5-20R NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.57 x 2.57 x 4.4 in
Additional Description: HUBW-HBL2313SW LKG WT S/SHRD CONN, 20A 125V, L5-20R
Catalog Description: Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Female Connector Body, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20R, Screw Terminal, Black PBT housing, White PBT clamps.
HBL2313SW Application
Heavy Duty Industrial ApplicationsHBL2313SW Item Features
- Superior cord grip design protects terminations from excess strain
- https://youtu.be/1DnPJu3QNw0
HBL2313SW Standards
UL 498|Federal Specification W-C-596|CSA C22.2 No. 42|NEMA WD1/WD5|RoHS CompliantSKU #83849Part Number #HBL2313SWUNSPSC39121421UPC00783585231044
