Part Number # HBL2315SW
SKU # 2275810
Image Disclaimers Message
HBL2315SW

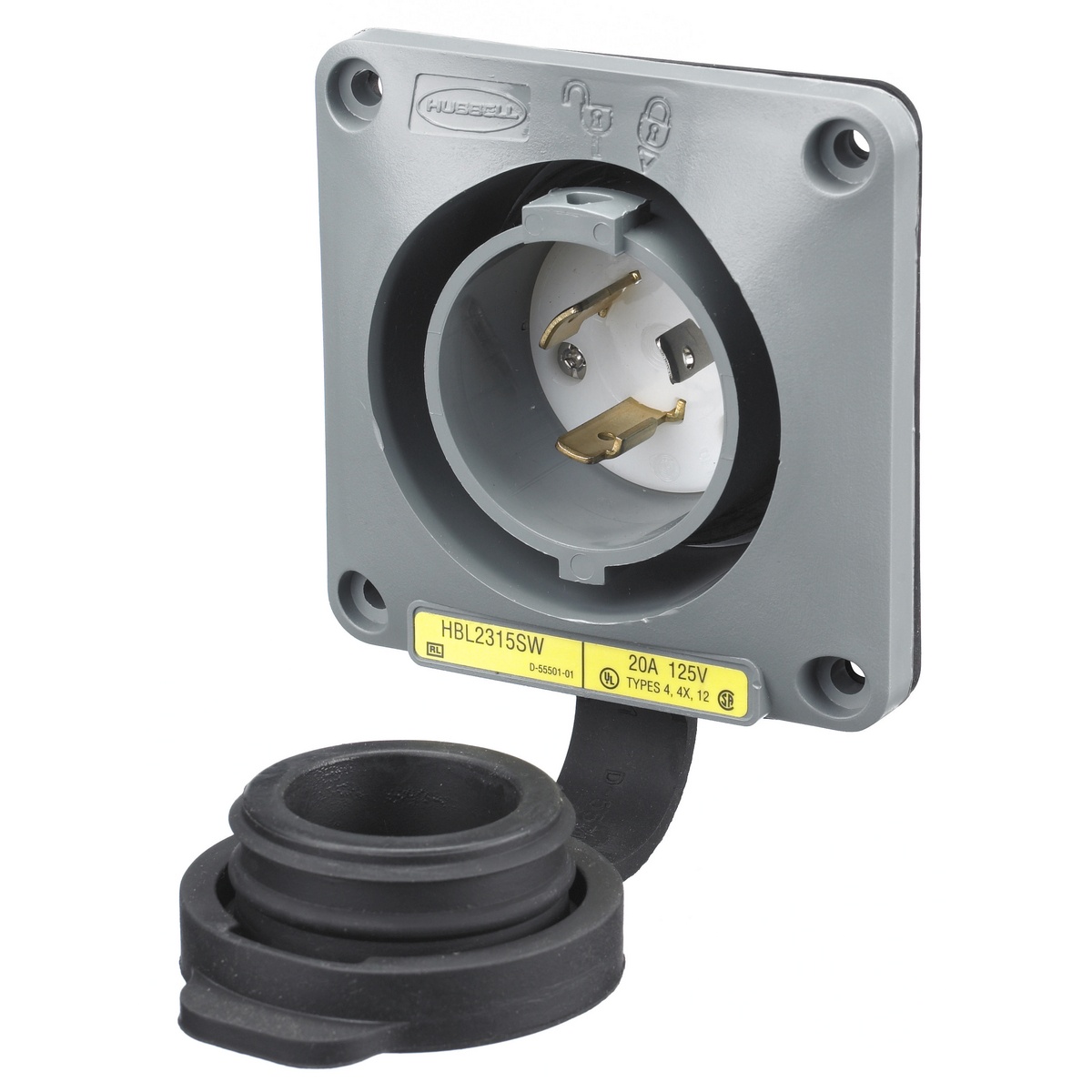

Hubbell HBL2315SW Locking Flanged Inlet
Part Number # HBL2315SW
SKU # 2275810
$72.50 / Each
Typical price:$111.00 / Each
Hubbell HBL2315SW Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2315SW |
| SKU #: | 2275810 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 3.75 in H x 3.75 in W x 2.28 in D, 3.75 x 3.75 x 2.28 in |
| Enclosure: | NEMA 4/4X/12/IP66 |
| Horsepower: | 1, 1 hp |
| NEMA Rating: | L5-20P, NEMA L5-20P |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Extra Heavy Duty Grounding Screw Mount Watertight, Extra Heavy Duty Grounding |
| Color: | Gray, Gray/White |
| Country of origin: | PR, US |
| Material: | Composite/Thermoplastic, Valox, Valox™ |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585231068 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$72.50 / Each
Typical price:$111.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems Twist-Lock Locking Flanged Inlet, 1-Phase Extra Heavy Duty Grounding Screw Mount Watertight, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, L5-20P NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, -40 to 75 deg C, Screw Terminal, Valox, Gray, 3.75 x 3.75 x 2.28 in
HBL2315SW Item Features
- One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
- Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color-coded voltage rating are easily visible even when in use
- https://youtu.be/1DnPJu3QNw0
HBL2315SW Standards
UL 498 Listed|Federal Specification W-C-596|CSA C22.2 No. 42 Certified|NEMA WD1/WD5|RoHS CompliantSKU #2275810Part Number #HBL2315SWUNSPSC39121406UPC00783585231068
