Brand: Hubbell

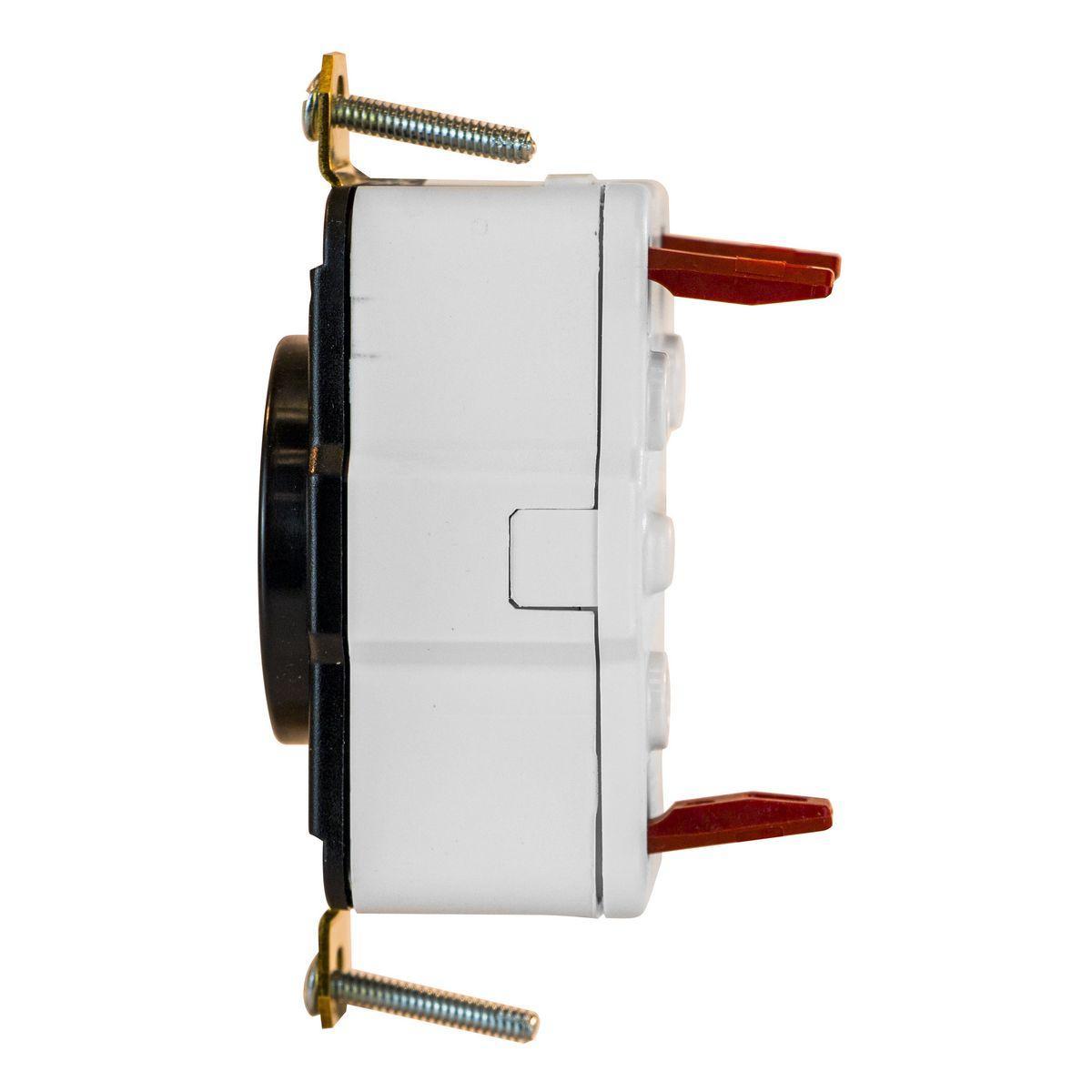

Hubbell HBL2320ST Twist-Lock Locking Receptacle
Image Disclaimers Message
Brand: Hubbell
Hubbell HBL2320ST Twist-Lock Locking Receptacle
Brand: Hubbell
Hubbell HBL2320ST Twist-Lock Locking Receptacle
Part #:HBL2320ST
SKU #: 2384826
$18.36/EA
Key Features
Part #:HBL2320ST
SKU #: 2384826
Brand: Hubbell
Amperage Rating: 20 A
Dimensions: 1.7 in W x 1.468 in D x 2.77 in H
Enclosure: IP20
Horsepower: 2 hp
NEMA Rating: NEMA L6-20R
$18.36/EA
- No need for screwdriver and torque wrench
- Spring termination eliminates strand relaxation
- High impact, abuse resistant nylon face
- Face color coding by voltage facilitates locating and mating of proper devices
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6312863964112
Specifications
Brand: Hubbell
Amperage Rating: 20 A
Dimensions: 1.7 in W x 1.468 in D x 2.77 in H
Enclosure: IP20
Horsepower: 2 hp
NEMA Rating: NEMA L6-20R
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 75 deg C
Terminal Type: Spring
Type: Grounding Single Flush
Voltage Rating: 250 V
Color: Black
Country of origin: CN
Material: Nylon
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585569550
Hubbell HBL2320ST Twist-Lock Locking Receptacle
Wiring Device-Kellems Twist-Lock Locking Receptacle, Grounding Single Flush, 250 V, 20 A, 2 hp, 2 Pole, 3 Wires, NEMA L6-20R, IP20 Enclosure, -40 to 75 deg C, Spring Terminal, Nylon, Black, 1.7 in W x 1.468 in D x 2.77 in H
Additional Description: HUBW-HBL2320ST LKG RCPT, 20A 250V, L6-20R, BK, SPRING T
Catalog Description: 20A, 250V EdgeConnect™ Twist-Lock® Receptacle with Spring Termination
Item Features
Item FeaturesCSA C22.2 No. 42|UL 498
