Part Number # HBL2421S
SKU # 2162890
Image Disclaimers Message
HBL2421S

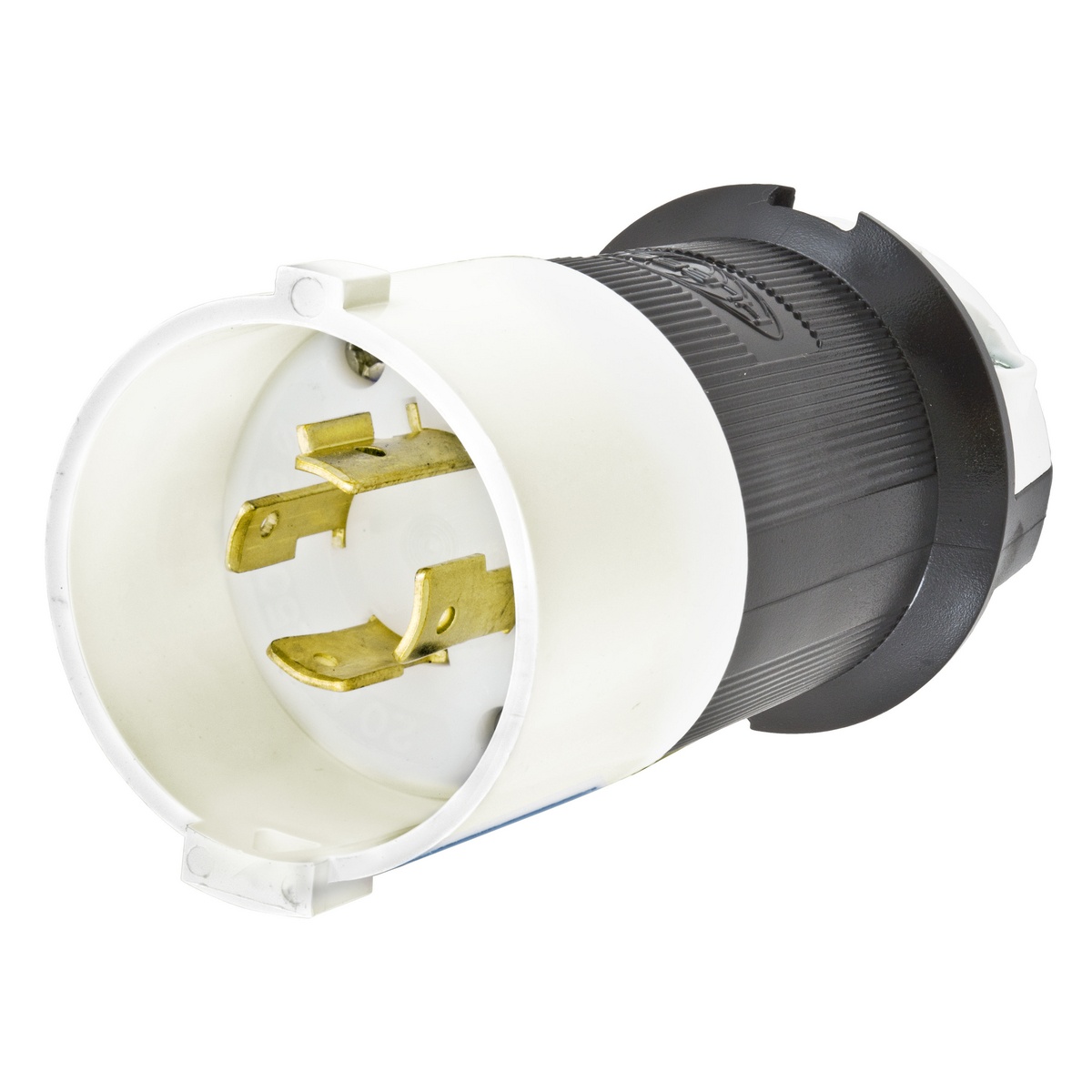

Hubbell HBL2421S Locking Plug
Part Number # HBL2421S
SKU # 2162890
$47.93 / Each
Typical price:$61.90 / Each
Hubbell HBL2421S Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2421S |
| SKU #: | 2162890 |
| Amperage Rating: | 20, 20 A |
| Cord Diameter: | 0.35 to 1.15, 0.35 to 1.15 in |
| Dimensions: | 2.33 in L x 2.33 in W x 4.21 in H, 2.33 x 2.23 x 4.21 in |
| Enclosure: | IP20 |
| Horsepower: | 3, 3 hp |
| NEMA Rating: | L15-20P, NEMA L15-20P |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Grounding Male Shrouded Standard, 3-Phase Grounding Male Shrouded Standard Cord Mount |
| Color: | Black, Black/White |
| Country of origin: | PR |
| Material: | Composite, Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585234540 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$47.93 / Each
Typical price:$61.90 / Each
Quantity:
- Hubbell Wiring Device-Kellems Twist-Lock Safety-Shroud Locking Plug, 3-Phase Grounding Male Shrouded Standard Cord Mount, 250 V AC, 20 A, 3 hp, 3 Pole, 4 Wires, L15-20P NEMA Rating, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.33 x 2.23 x 4.21 in
HBL2421S Application
Power Connection and Indoor Dry Environment ApplicationsHBL2421S Item Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance
- Superior cord grip design protects terminations from excess strain
- Integral dust shield protects wiring chamber from dust or contaminants
- https://youtu.be/1DnPJu3QNw0
HBL2421S Standards
RoHS Compliant|CSA C22.2 No. 42|Federal Specification W-C-596|UL 498SKU #2162890Part Number #HBL2421SUNSPSC39121402UPC00783585234540
