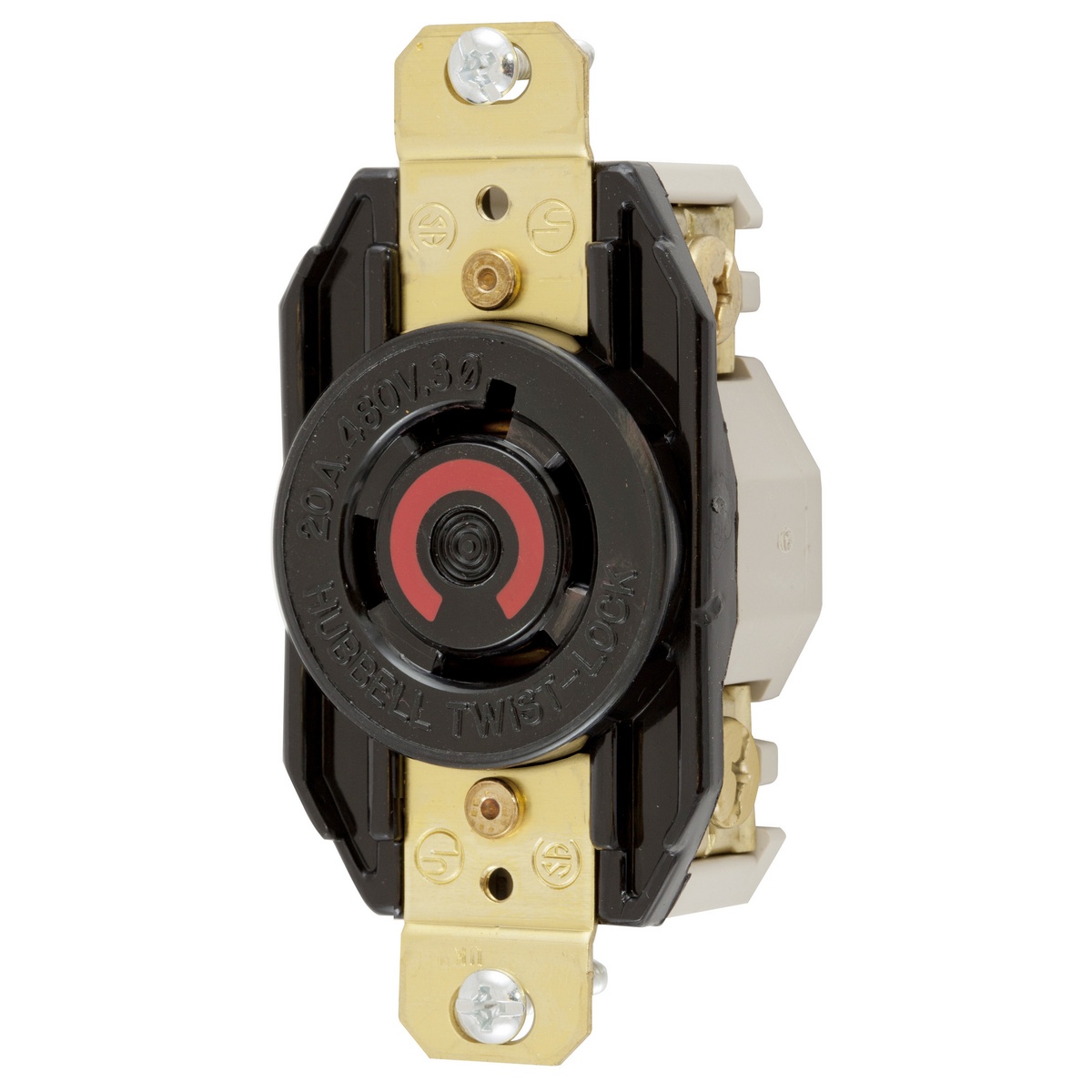

Hubbell HBL2430 Locking Receptacle
Part Number # HBL2430
SKU # 288073
$45.81 / Each
212 In Stock
Ships in 1 Business Day
Hubbell HBL2430 Key Features
Brand: Hubbell
Part Number # HBL2430
SKU #288073
Amperage Rating: 20, 20 A
Dimensions: 3.28 in H x 1.7 in W x 1.23 in D, 3.28 x 1.7 x 1.23 in
Enclosure: IP20
Horsepower: 5, 5 hp
NEMA Rating: L16-20R, NEMA L16-20R
Number of Poles: 3
Number of Wires: 4
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Screw
Type: 3-Phase Heavy Duty Single Screw Mount, Heavy Duty Single
Voltage Rating: 480, 480 VAC
Color: Black
Country of origin: PR, US
Material: Composite/Thermoplastic, Nylon
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585235776
$45.81 / Each
Hubbell HBL2430 Locking Receptacle
Brand: Hubbell
Part Number: HBL2430
Wiring Device-Kellems Twist-Lock Locking Receptacle, 3-Phase Heavy Duty Single Screw Mount, 480 VAC, 20 A, 5 hp, 3 Pole, 4 Wires, L16-20R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, Black, 3.28 x 1.7 x 1.23 in
Additional Description: HUBW-HBL2430 LKG RCPT, 20A 3P 480V, L16-20R, BK PHASE 480V AC
Catalog Description: Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 3-Phase 480V AC, 3-Pole 4-Wire Grounding, NEMA L16-20R, Screw Terminal, Nylon face, Back and side wire, Black.
HBL2430 Item Features
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- https://youtu.be/1DnPJu3QNw0
HBL2430 Standards
UL 498|Federal Specification W-C-596|CSA C22.2 No. 42|NEMA WD1/WD5|RoHS CompliantSKU #288073Part Number #HBL2430UNSPSC39121406UPC00783585235776
