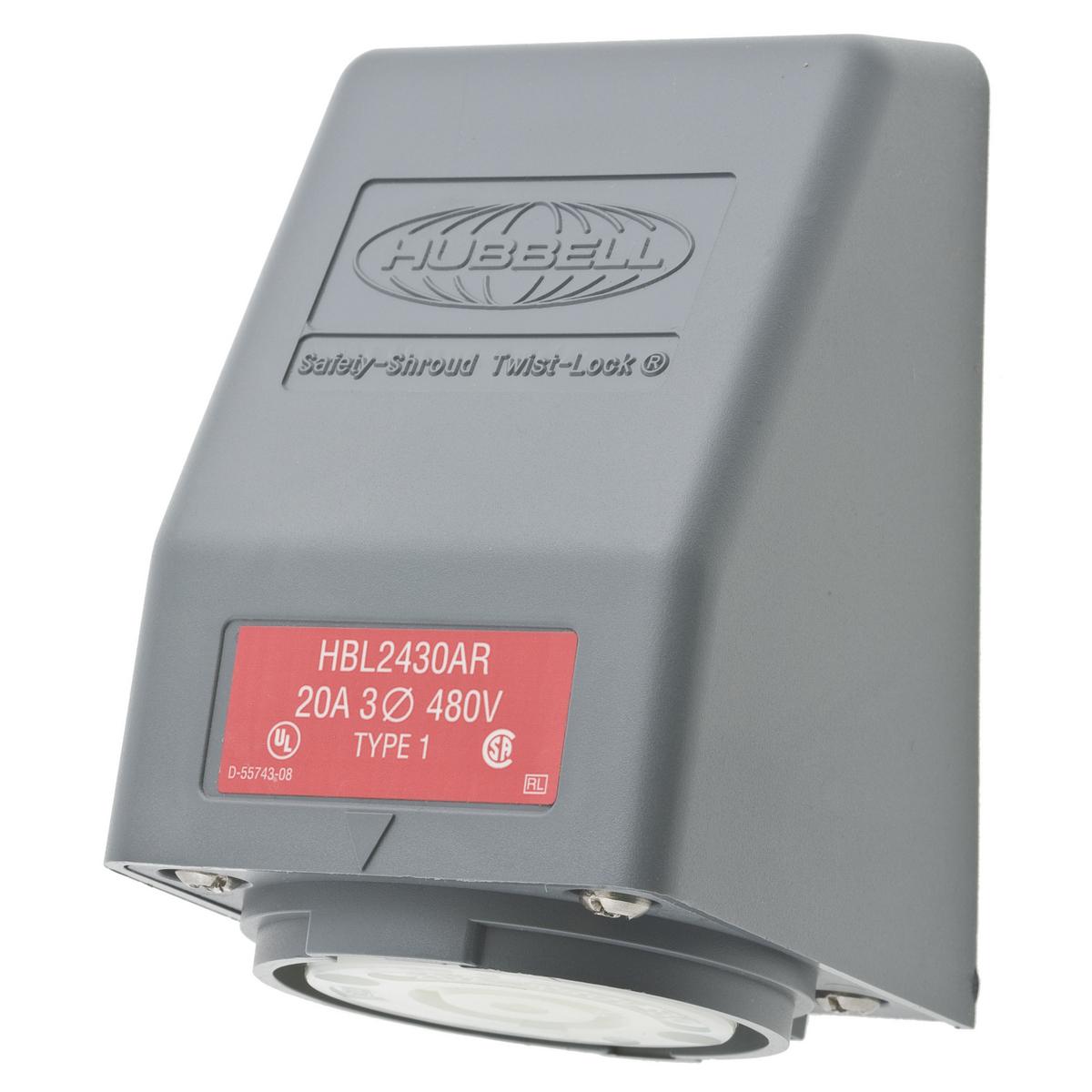

Hubbell HBL2430AR Locking Receptacle
Hubbell HBL2430AR Locking Receptacle
Part #:HBL2430AR
SKU #: 999699
Key Features
Part #:HBL2430AR
SKU #: 999699
Brand: Hubbell
Amperage Rating: 20, 20 A
Dimensions: 4.57 in H x 2.85 in W x 3.14 in D, 4.77 x 2.85 x 3.14, 4.77 x 2.85 x 3.14 in
Horsepower: 5, 5 hp
NEMA Rating: L16-20R, NEMA L16-20R
Number of Poles: 3
- Withstands 2000 VAC dielectric voltage
- 14 to 8 AWG wire size
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150 Percent of rated current at a power factor of 75 Percent temperature rise
- #10-32 bronze terminal and ground screw
- 12 AWG terminal accommodation
- Steel zinc plated mounting screw
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- Angled housing
- https://youtu.be/1DnPJu3QNw0
Hubbell HBL2430AR Locking Receptacle
Wiring Device-Kellems Twist-Lock Safety-Shroud Locking Receptacle, 3-Phase Heavy Duty Single Screw Mount, 480 VAC, 20 A, 5 hp, 3 Pole, 4 Wires, L16-20R NEMA Rating, Industrial Grade, -40 to 75 deg C, Screw Terminal, Thermoplastic, Gray/White, 4.77 x 2.85 x 3.14 in
Additional Description: HUBW-HBL2430AR LKG S/SHRD RCPT, L16-20R, ANG SRF MT L16-20
Catalog Description: Locking Devices, Twist-Lock®, Safety-Shroud®, Angled Receptacle, One Gang, 20 Amp 3-Phase Delta 480 VAC, 3-Pole 4-Wire Grounding, NEMA L16-20R, Screw Terminal , Gray
