Brand: Hubbell

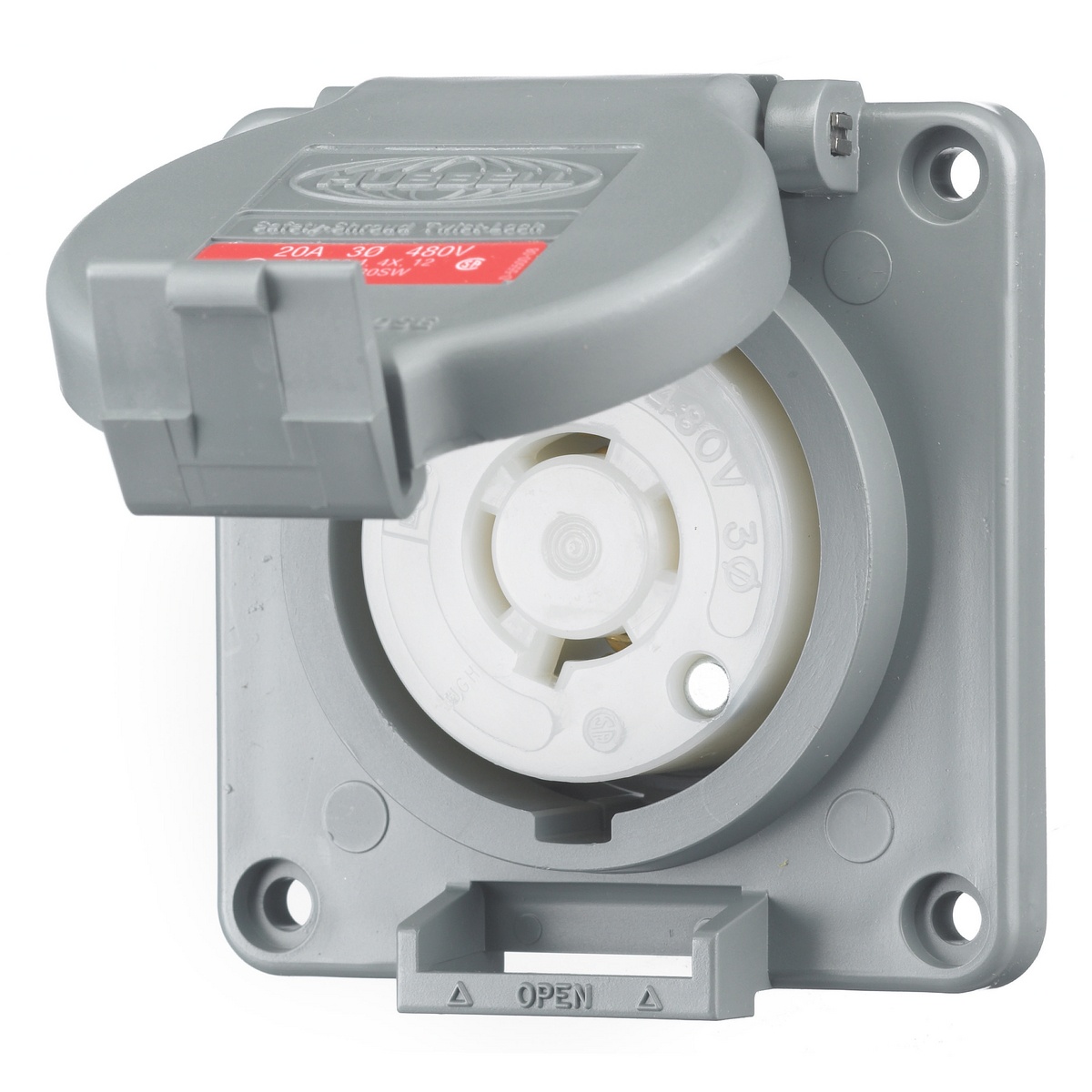

Hubbell HBL2430SW Locking Receptacle
Part Number # HBL2430SW
SKU # 18560
$125.86 / Each
Only 9 left in stock order soon
Ships in 1 Business Day
Hubbell HBL2430SW Key Features
Brand: Hubbell
Part Number # HBL2430SW
SKU #18560
Amperage Rating: 20, 20 A
Dimensions: 3.75 in L x 2.69 in W x 3.75 in H, 3.75 x 3.75 x 2.9 in
Enclosure: IP20
Horsepower: 5, 5 hp
NEMA Rating: L16-20R, NEMA L16-20R
Number of Poles: 3
Number of Wires: 4
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Back Wired/Screw, Screw
Type: 3-Phase Heavy Duty Flanged Grounding Standard Single Watertight Screw Mount, Heavy Duty Flanged Grounding Standard Single Watertight
Voltage Rating: 480, 480 VAC
Color: Gray/White
Country of origin: PR
Material: Composite/Thermoplastic, Thermoplastic
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585231426
$125.86 / Each
Hubbell HBL2430SW Locking Receptacle
Brand: Hubbell
Part Number: HBL2430SW
Wiring Device-Kellems Safety-Shroud Twist-Lock Locking Receptacle, 3-Phase Heavy Duty Flanged Grounding Standard Single Watertight Screw Mount, 480 VAC, 20 A, 5 hp, 3 Pole, 4 Wires, L16-20R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Thermoplastic, Gray/White, 3.75 x 3.75 x 2.9 in
Additional Description: HUBW-HBL2430SW LKG WT S/SHRD RCPT, 20A 480V, L16-20R
Catalog Description: Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Receptacle, 20A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, NEMA L16-20R, Screw Terminal, PBT housing and flange, Gray.
HBL2430SW Item Features
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
HBL2430SW Standards
UL 498|CSA C22.2 No. 42, 0.17, UL 94 Flammability Rating|Federal Specification W-C-596, NEMA WD1/WD5|RoHS CompliantSKU #18560Part Number #HBL2430SWUNSPSC39121406UPC00783585231426
