Part Number # HBL2431S
SKU # 216517
Image Disclaimers Message
Brand: Hubbell
HBL2431S

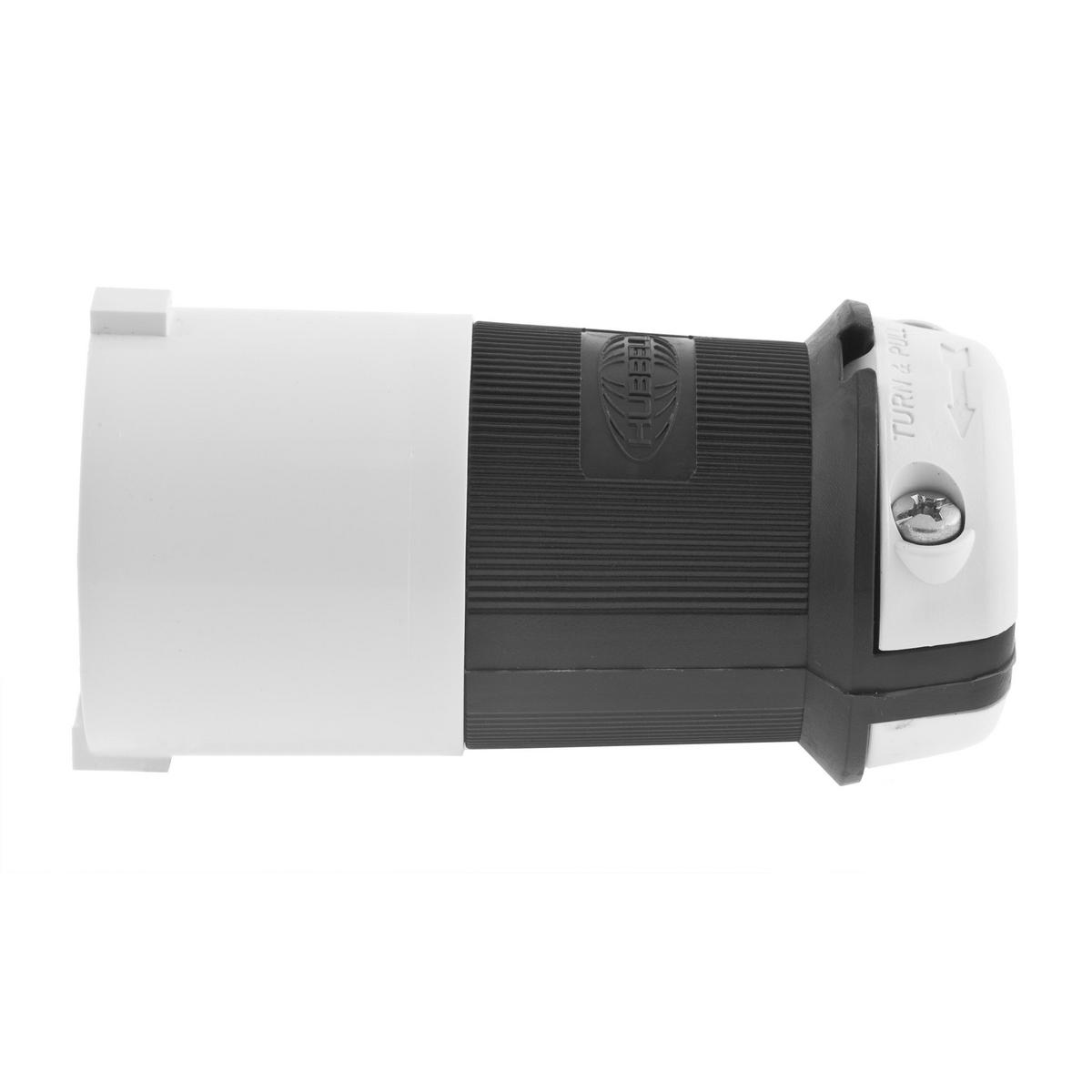

Hubbell HBL2431S Locking Plug
Part Number # HBL2431S
SKU # 216517
$48.29 / Each
Typical price:$62.40 / Each
Hubbell HBL2431S Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2431S |
| SKU #: | 216517 |
| Amperage Rating: | 20, 20 A |
| Cord Diameter: | 0.35 to 1.15, 0.35 to 1.15 in |
| Dimensions: | 2.33 in Dia x 4.21 in L, 2.33 x 2.23 x 4.21 in |
| Enclosure: | IP20 |
| Horsepower: | 5, 5 hp |
| NEMA Rating: | L16-20P, NEMA L16-20P |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Grounding Male Standard, 3-Phase Grounding Male Standard Cord Mount |
| Color: | Black/White |
| Country of origin: | PR, US |
| Material: | Brass/Clear Polycarbonate/Composite/Nylon/Polybutylene Terephthalate, Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585234625 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$48.29 / Each
Typical price:$62.40 / Each
Quantity:
- Hubbell Wiring Device-Kellems, HBL2431S, Locking Plug, 3-Phase Grounding Male Standard Cord Mount, 480 V AC, 20 A, 5 hp, 3 Pole, 4 Wires, L16-20P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.33 x 2.23 x 4.21 in Dimensions
HBL2431S Application
Dry Locations, Power Connection and Indoor ApplicationsHBL2431S Item Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance
- Superior cord grip design protects terminations from excess strain
- Integral dust shield protects wiring chamber from dust or contaminants
- https://youtu.be/1DnPJu3QNw0
HBL2431S Standards
RoHS Compliant|UL94HB Flammability Rating|Federal Specification W-C-596|UL 94/498|CSA C22.2 No. 0.6/42SKU #216517Part Number #HBL2431SUNSPSC39121402UPC00783585234625
