Part Number # HBL2431SW
SKU # 18562
Image Disclaimers Message
Brand: Hubbell
HBL2431SW

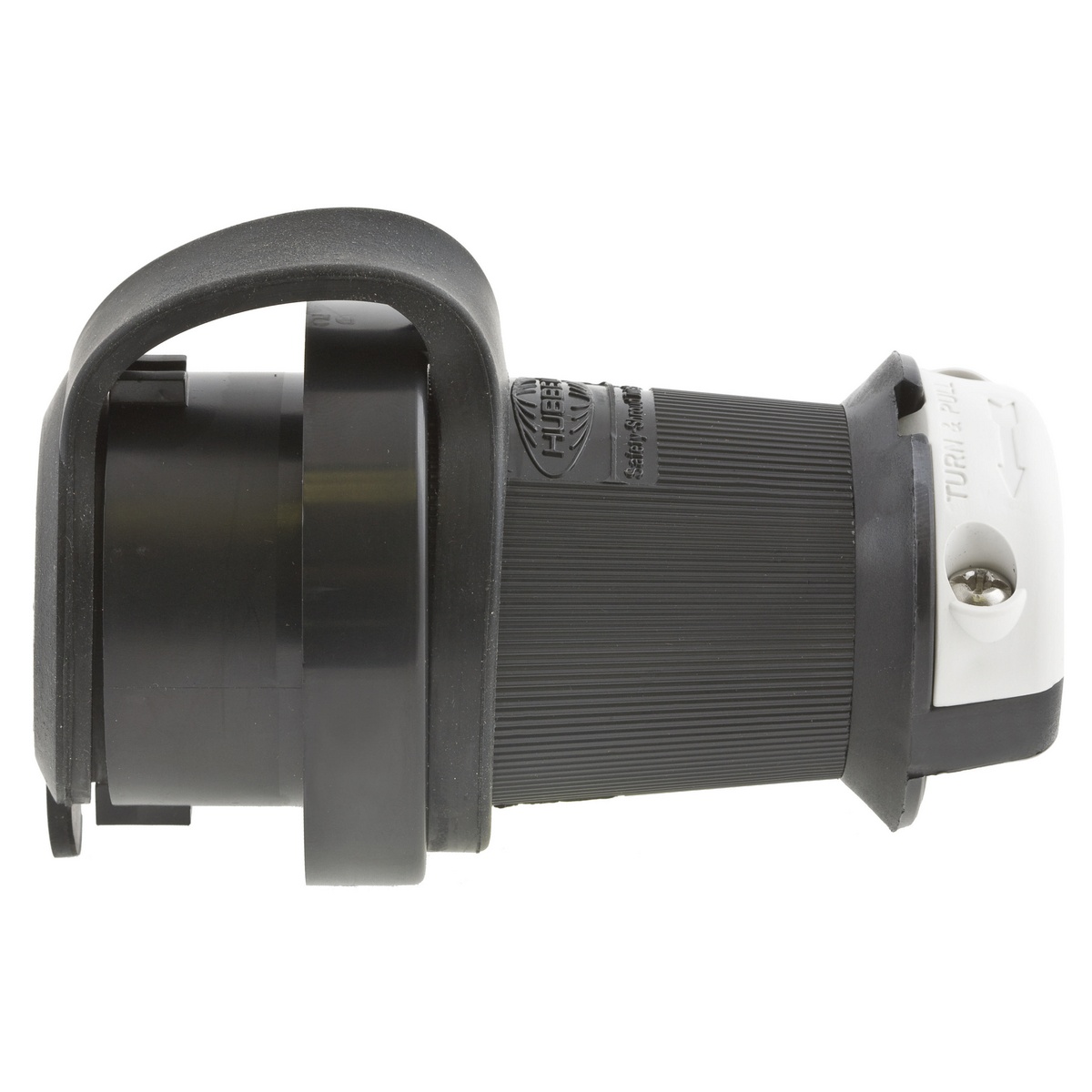

Hubbell HBL2431SW Locking Plug
Part Number # HBL2431SW
SKU # 18562
$106.54 / Each
Typical price:$141.00 / Each
Hubbell HBL2431SW Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2431SW |
| SKU #: | 18562 |
| Amperage Rating: | 20, 20 A |
| Cord Diameter: | 0.35 to 1.15, 0.35 to 1.15 in |
| Dimensions: | 2.94 in Dia x 4.4 in L, 2.94 x 2.94 x 4.40 in |
| Enclosure: | NEMA 4/4X/12/IP66 |
| Horsepower: | 5, 5 hp |
| NEMA Rating: | L16-20P, NEMA L16-20P |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Series: | HBL |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 3-Phase Grounding Watertight Cord Mount, Grounding Safety Shroud Watertight |
| Color: | Black/White |
| Country of origin: | PR, US |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585231440 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$106.54 / Each
Typical price:$141.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems, HBL2431SW, Locking Plug, 3-Phase Grounding Watertight Cord Mount, Series: HBL, 480 V AC, 20 A, 5 hp, 3 Pole, 4 Wires, L16-20P NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.94 x 2.94 x 4.40 in Dimensions
HBL2431SW Application
Power Connection ApplicationsHBL2431SW Item Features
- Impact resistant shroud protects blades against bending and breaking
- Reduces exposure to arcing when connecting or disconnecting under load
- Superior cord grip design protects terminations from excess strain
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
HBL2431SW Standards
UL 498|UL94 Flammability Rating|Federal Specification W-C-596|CSA C22.2 No. 42/0.6|RoHS Compliant|NEMA WD1/WD5SKU #18562Part Number #HBL2431SWUNSPSC39121402UPC00783585231440
