Part Number # HBL2436ST
SKU # 2426856
HBL2436ST

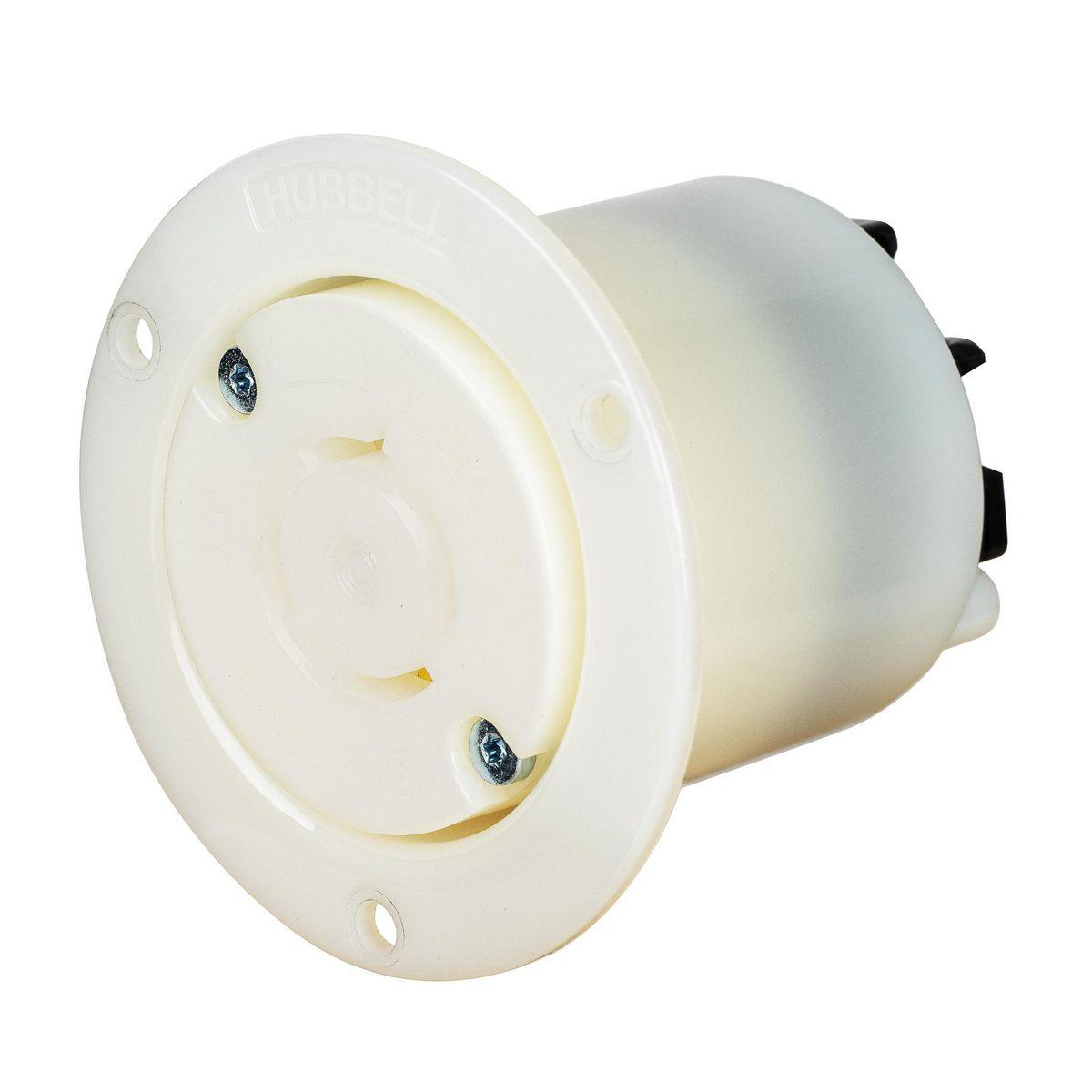

Hubbell HBL2436ST EdgeConnect 3-Phase Locking Receptacle
Part Number # HBL2436ST
SKU # 2426856
$31.54 / Each
Typical price:$74.85 / Each
Hubbell HBL2436ST Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2436ST |
| SKU #: | 2426856 |
| Amperage Rating: | 20 A |
| Dimensions: | 2.27 in D |
| Enclosure: | IP20 |
| Horsepower: | 5 hp |
| NEMA Rating: | NEMA L16-20R |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Series: | EdgeConnect |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Type: | 3-Phase |
| Country of origin: | CN |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585719146 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$31.54 / Each
Typical price:$74.85 / Each
Quantity:
Hubbell HBL2436ST EdgeConnect 3-Phase Locking Receptacle
Brand: Hubbell
Part Number: HBL2436ST
Additional Description: HUBW-HBL2436ST (N) LKG FLG-RCPT, 20A 3P 480V, L16-20R, SP T NON-CANCELABLE, NON-RETURNABLE WH
Catalog Description: Locking Devices, EdgeConnect™ Twist-Lock®, Industrial, Flanged Receptacle, 20A Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16-20R, Screwless Terminal, White
HBL2436ST Item Features
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Funnel shaped wire entry for ease of termination
HBL2436ST Standards
UL 498|Fed.Spec. W-C-596|Certified to CSA C22.2 No.42SKU #2426856Part Number #HBL2436STUNSPSC39121406UPC00783585719146
Image provided may only be a representation of final product and may include optional equipment
