Part Number # HBL2440
SKU # 2288207
HBL2440

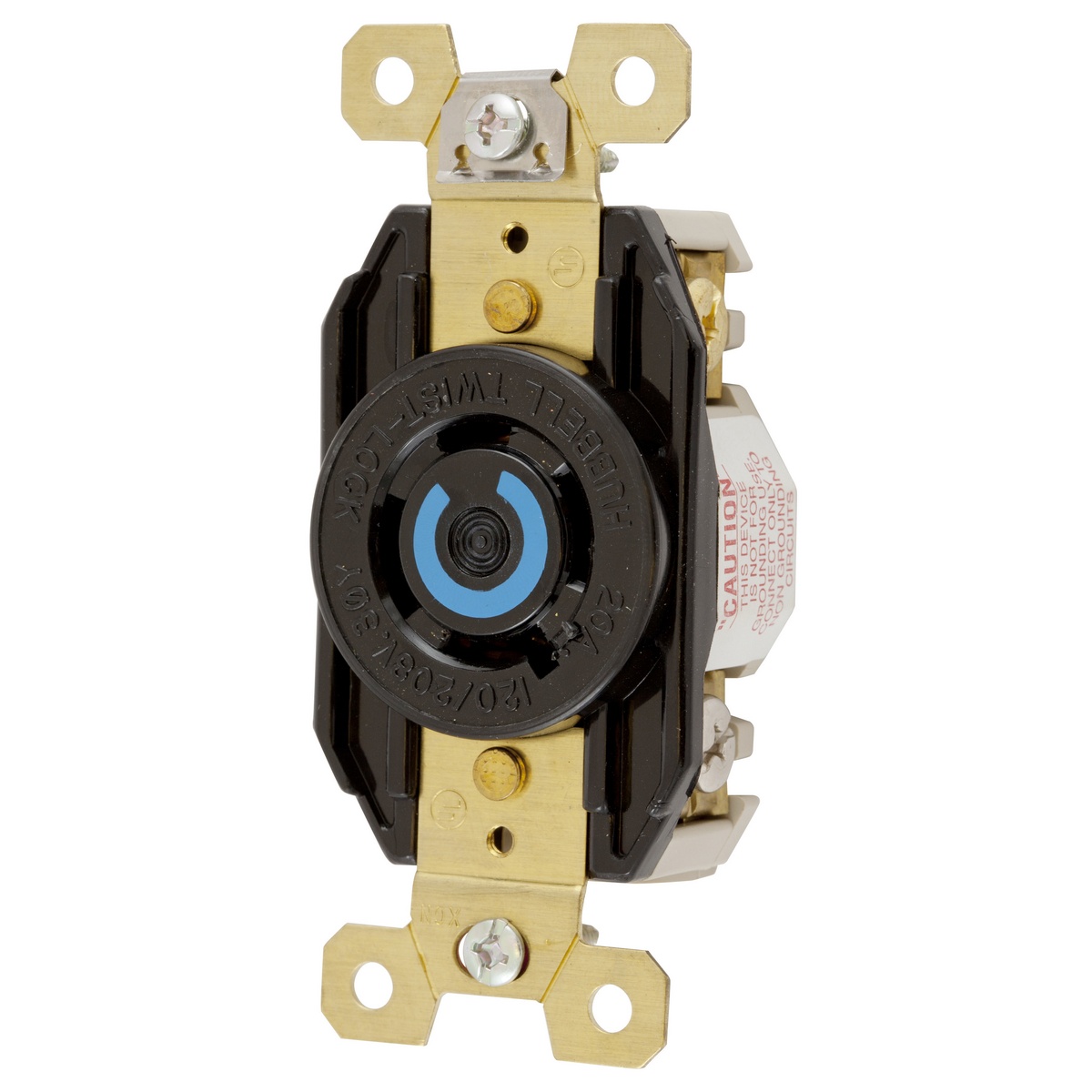

Hubbell HBL2440 Locking Receptacle
Part Number # HBL2440
SKU # 2288207
Hubbell HBL2440 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2440 |
| SKU #: | 2288207 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 1.234 in D, 1.234 in W |
| Enclosure: | IP20 |
| Horsepower: | 2, 2 hp |
| NEMA Rating: | NEMA L18-20R |
| Number of Poles: | 4 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Back/Side Wired/Screw, Screw |
| Type: | Flush Mount Standard Single, Heavy Duty Flush Non-Grounding Standard Single |
| Material: | Composite/Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585235790 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL2440 Locking Receptacle
Brand: Hubbell
Part Number: HBL2440
Hubbell Twist-Lock Locking Receptacle, Flush Mount Standard Single, 120/208 VAC, 20 A, 2 hp, 4 Poles, 4 Wires, NEMA L18-20R, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Black, 1.234 in W
Additional Description: HUBW-HBL2440 LKG RCPT, 20A 120/208V, L18-20R, BK
Catalog Description: Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 3 Phase WYE 120/208V AC, 4-Pole 4-Wire Non- Grounding, NEMA L18-20R, Screw Terminal, Nylon face, back and side wire, Black
HBL2440 Item Features
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- 4-wire non-grounding
- Stainless steel auto ground clip
- 0.04 in brass back plate
- Black nylon top cover
- 0.05 in brass bridge mounting strap
- Brass rivet
- Nylon polyester base
- 0.031 in brass ground contact
- Zinc plated steel mounting screws
- 3-phase, star connection 120/208 VAC
- 20 A 12 AWG terminal accommodation
- 2000 VAC minimum dielectric voltage withstand
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
- Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification
- V2 or better per UL94/CSA 22.2 No 0.17 flammability
- -40 to 75 deg C maximum continuous (without impact) operating temperature
- https://youtu.be/1DnPJu3QNw0
HBL2440 Standards
CSA C22.2 No. 42|Federal Specification W-C-596, UL 498SKU #2288207Part Number #HBL2440UNSPSC39121406UPC00783585235790
Image provided may only be a representation of final product and may include optional equipment
