Brand: Hubbell

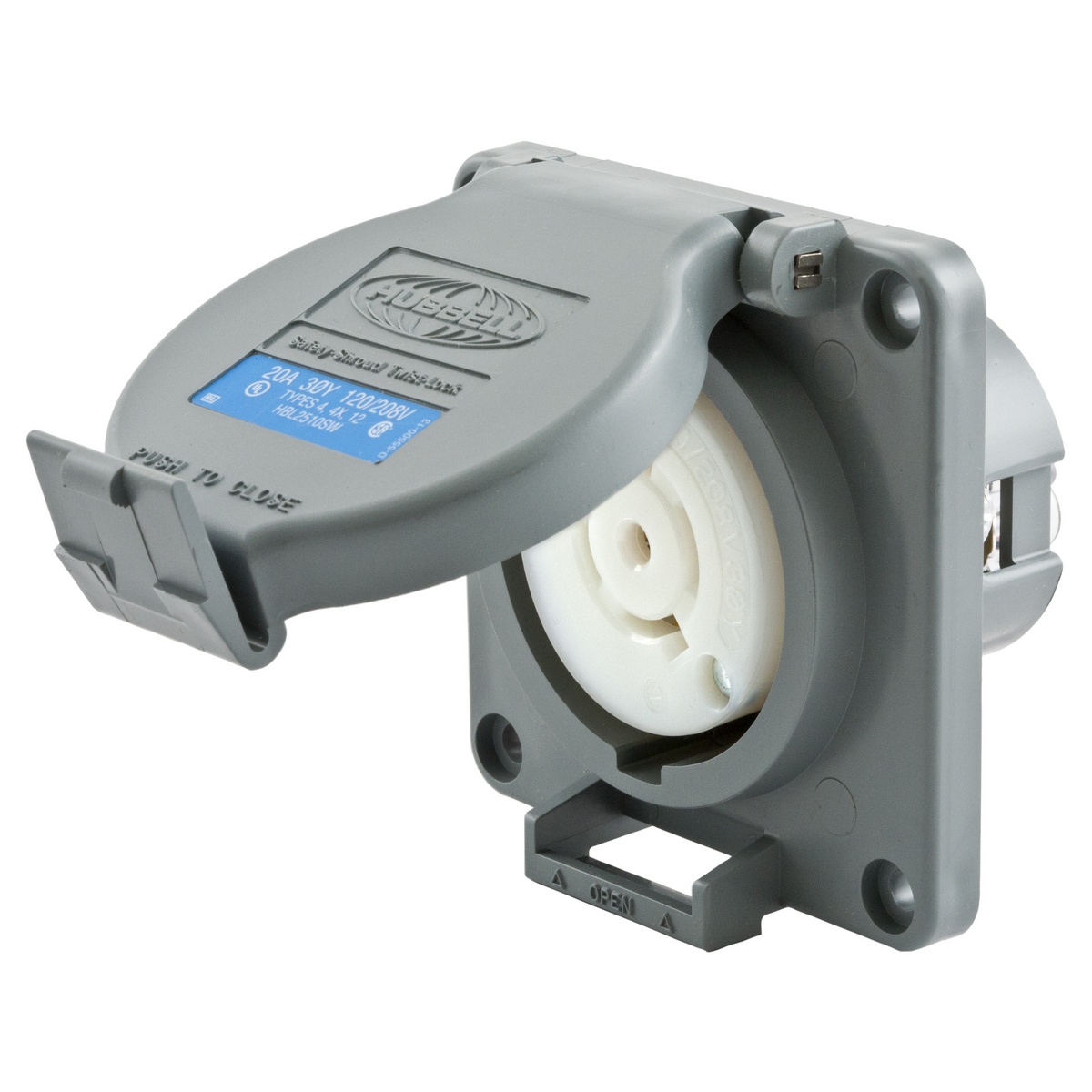

Hubbell HBL2510SW Locking Receptacle
Image Disclaimers Message
Brand: Hubbell
Hubbell HBL2510SW Locking Receptacle
Brand: Hubbell
Hubbell HBL2510SW Locking Receptacle
Part #:HBL2510SW
SKU #: 2314662
$142.57/EA
Key Features
Part #:HBL2510SW
SKU #: 2314662
Brand: Hubbell
Amperage Rating: 20, 20 A
Dimensions: 3.75 in H x 3.75 in W x 2.9 in D, 3.75 x 3.75 x 2.9 in
Horsepower: 2, 2 hp
NEMA Rating: L21-20R, NEMA L21-20R
Number of Poles: 4
$142.57/EA
- Withstands 2000 VAC dielectric voltage
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150 Percent of rated current at a power factor of 75 Percent temperature rise
- #8-32 brass terminal and ground screw
- 14 to 8 AWG terminal accommodation
- 302/304 stainless steel multi-drive mounting screw
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
Specifications
Brand: Hubbell
Amperage Rating: 20, 20 A
Dimensions: 3.75 in H x 3.75 in W x 2.9 in D, 3.75 x 3.75 x 2.9 in
Horsepower: 2, 2 hp
NEMA Rating: L21-20R, NEMA L21-20R
Number of Poles: 4
Number of Wires: 5
Series: HBL
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Screw
Type: 3-Phase Heavy Duty Single Watertight Screw Mount, Heavy Duty Safety Shroud Single Watertight
Voltage Rating: 120/208, 120/208 VAC
Color: Gray/White
Country of origin: US
Material: Composite/Thermoplastic, Thermoplastic
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585231501
Item Features
Item FeaturesUL 498|CSA C22.2 No. 42 Certified|NEMA WD1/WD5|RoHS Compliant
