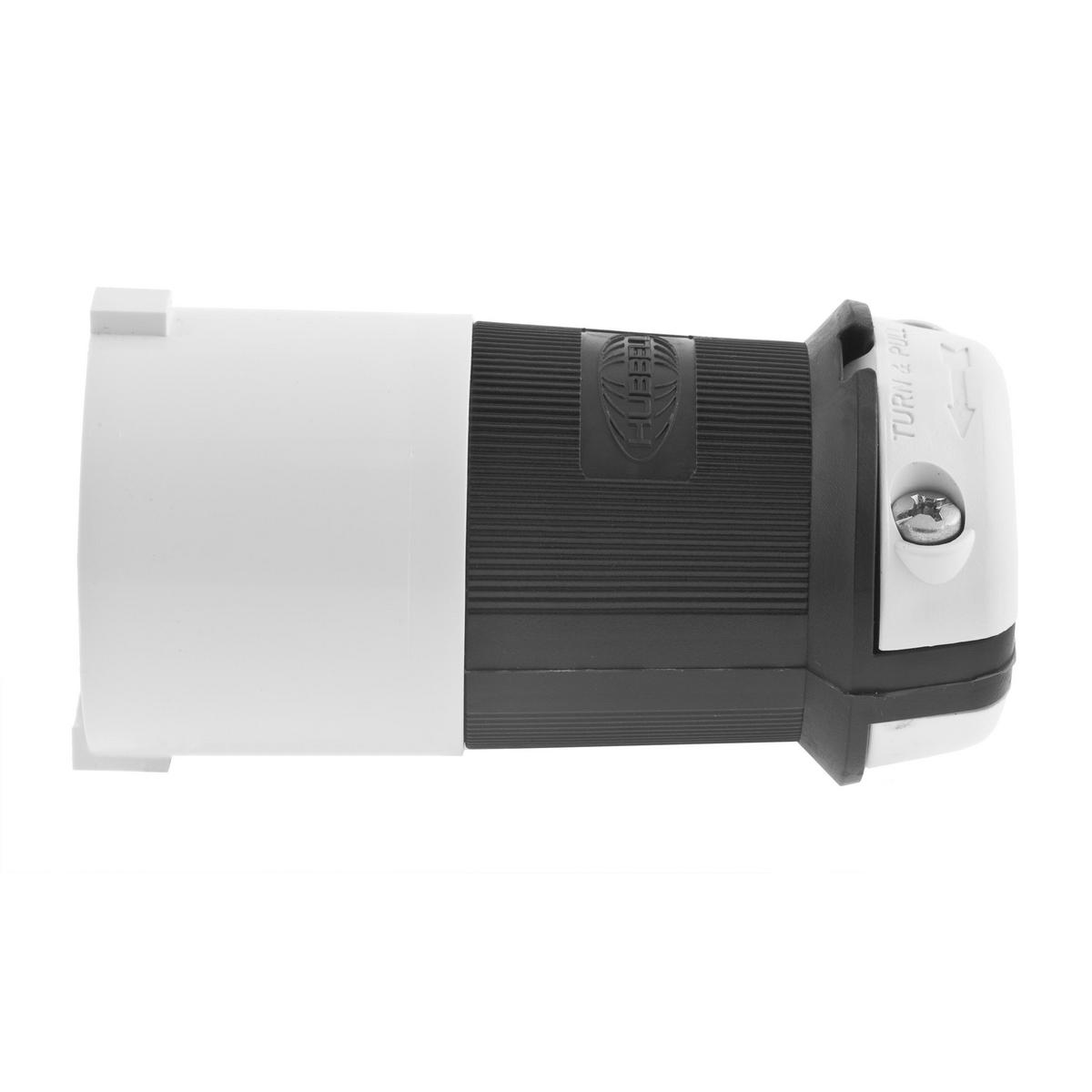

Hubbell HBL2511S Locking Plug
Part Number # HBL2511S
SKU # 2334359
$57.57 / Each
Typical price:$87.85 / Each
Hubbell HBL2511S Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2511S |
| SKU #: | 2334359 |
| Amperage Rating: | 20, 20 A |
| Cord Diameter: | 0.35 to 1.15, 0.35 to 1.15 in |
| Dimensions: | 2.33 in Dia x 4.21 in L, 2.33 x 2.33 x 4.21 in |
| Enclosure: | IP20 |
| Horsepower: | 2, 2 hp |
| NEMA Rating: | L21-20P, NEMA L21-20P |
| Number of Poles: | 4 |
| Number of Wires: | 5 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 3-Phase Grounding Male Standard, 3-Phase Grounding Male Standard Cord Mount |
| Color: | Black/White |
| Country of origin: | US |
| Material: | Brass/Clear Polycarbonate/Composite/Nylon, Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585235028 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$57.57 / Each
Typical price:$87.85 / Each
Quantity:
- Hubbell Wiring Device-Kellems, HBL2511S, Locking Plug, 3-Phase Grounding Male Standard Cord Mount, 120/208 V AC, 20 A, 2 hp, 4 Pole, 5 Wires, L21-20P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.33 x 2.33 x 4.21 in Dimensions
HBL2511S Application
Dry Locations, Power Connection and Indoor ApplicationsHBL2511S Item Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance
- Superior cord grip design protects terminations from excess strain
- Integral dust shield protects wiring chamber from dust or contaminants
- https://youtu.be/1DnPJu3QNw0
HBL2511S Standards
RoHS Compliant|CSA C22.2 No. 42/0.17|UL94 V-0 Flammability Rating|Federal Specification W-C-596|UL 94/498SKU #2334359Part Number #HBL2511SUNSPSC39121402UPC00783585235028
