Part Number # HBL25W47
SKU # 125756
Image Disclaimers Message
Brand: Hubbell
HBL25W47

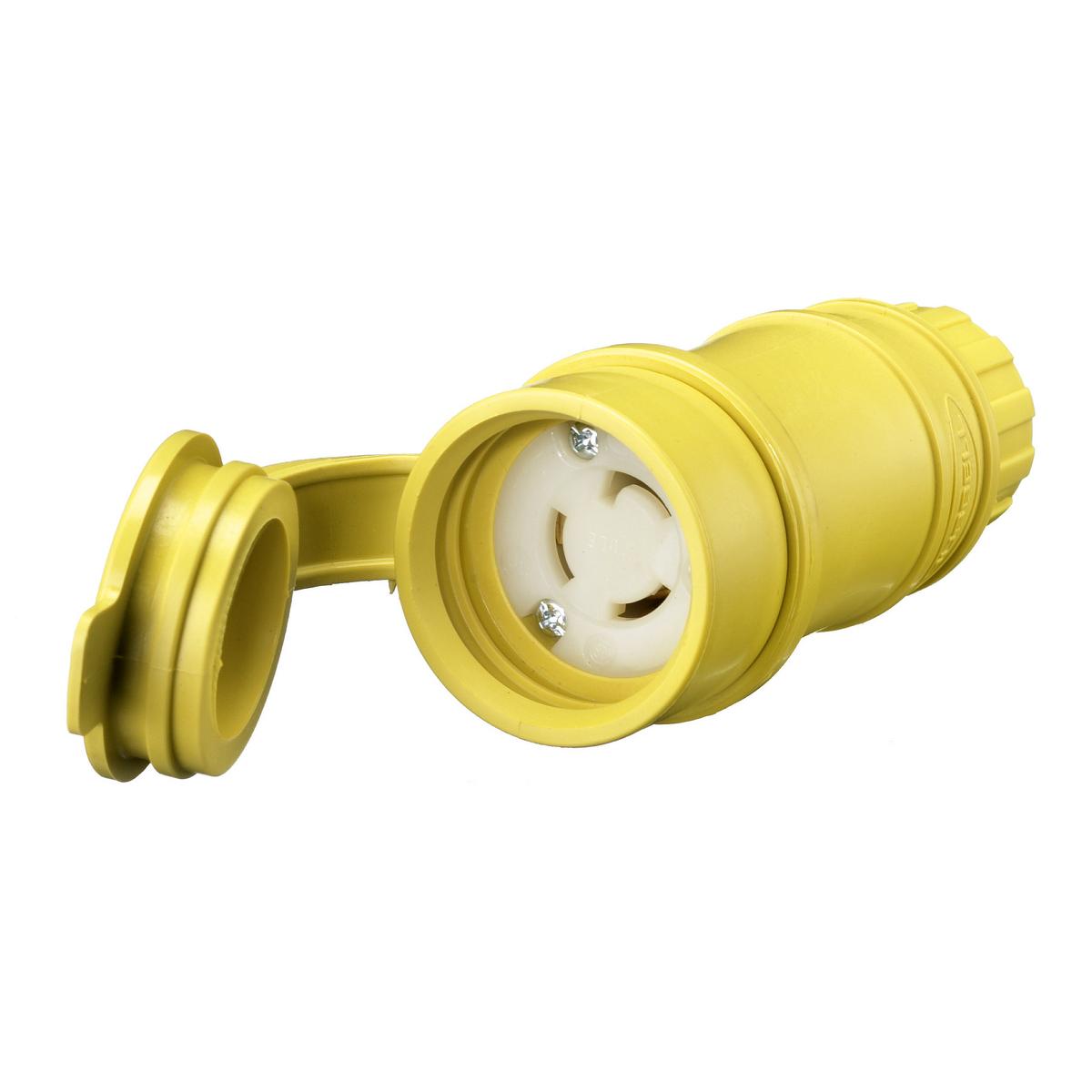

Hubbell HBL25W47 Locking Connector
Part Number # HBL25W47
SKU # 125756
$43.07 / Each
Typical price:$65.70 / Each
Hubbell HBL25W47 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL25W47 |
| SKU #: | 125756 |
| Amperage Rating: | 15, 15 A |
| Cord Diameter: | 0.3 to 0.65, 0.3 to 0.65 in |
| Dimensions: | 1.76 in Dia x 4.03 in L, 1.76 x 1.76 x 4.03, 1.76 x 1.76 x 4.03 in |
| Enclosure: | IP20 |
| NEMA Rating: | L6-15R, NEMA L5-15P |
| Number of Poles: | 2 |
| Number of Wires: | 2, 3 |
| Series: | HBL |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | Grounding Heavy Duty, Grounding Heavy Duty Cord Mount Watertight |
| Color: | Yellow |
| Country of origin: | PR, US |
| Material: | Composite, Elastomer |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585235912 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$43.07 / Each
Typical price:$65.70 / Each
Quantity:
- Hubbell Wiring Device-Kellems, HBL25W47, Locking Connector, Grounding Heavy Duty Cord Mount Watertight, Series: HBL, 125 V AC, 15 A, 2 Pole, 2 Wires, L6-15R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.3 to 0.65 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Elastomer, Yellow, 1.76 x 1.76 x 4.03 in Dimensions
HBL25W47 Item Features
- Integral weatherproofing shroud seals connection between plug and connector
- Nylon compression nut keeps water and dust from getting into the body around the cord
HBL25W47 Standards
UL 498|Federal Specification W-C-596|CSA C22.2 No. 42|NEMA WD1/WD5SKU #125756Part Number #HBL25W47UNSPSC39121421UPC00783585235912
