Part Number # HBL25W47A
SKU # 2305211
HBL25W47A
Hubbell HBL25W47A Wiring Device-Kellems
Part Number # HBL25W47A
SKU # 2305211
Hubbell HBL25W47A Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL25W47A |
| SKU #: | 2305211 |
| Amperage Rating: | 15 A |
| Cord Diameter: | 3/8 to 5/8 in |
| Dimensions: | 1.85 in L x 4.62 in W, 1.85 x 1.85 x 4.62 in |
| Enclosure: | IP20, NEMA 4/4X/12/IP66 |
| NEMA Rating: | L5-15R, NEMA L5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | HBL, Watertight |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | Grounding Heavy Duty Non-Shrouded Standard Watertight, Grounding Heavy Duty Shrouded Watertight Cord Mount |
| Country of origin: | CN |
| Material: | Elastomer/Composite, Plastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585131320 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL25W47A Wiring Device-Kellems
Brand: Hubbell
Part Number: HBL25W47A

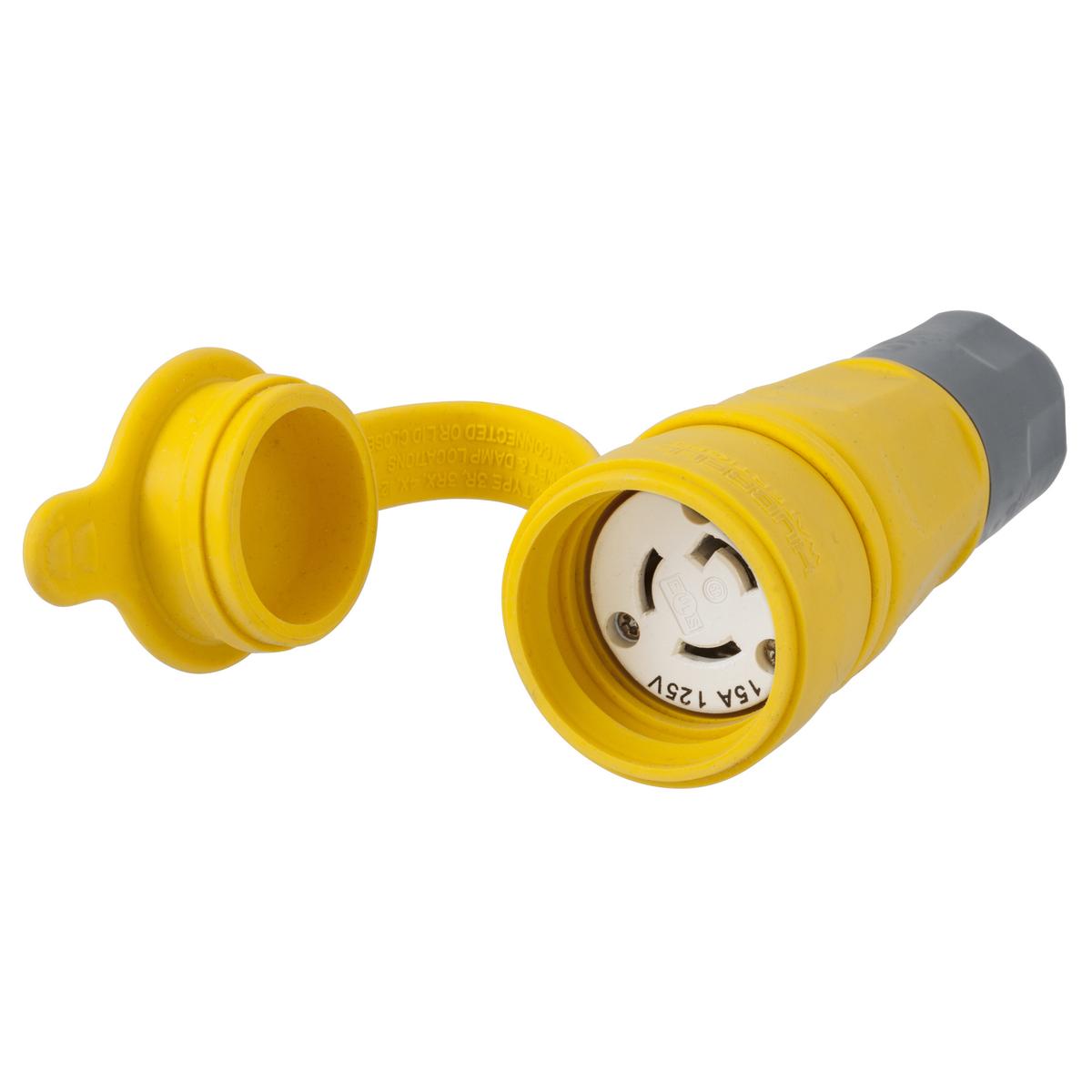

Wiring Device-Kellems Twist-Lock® Locking Connector, Grounding Heavy Duty Shrouded Twist-Lock, Series: Watertight, 125 VAC, 15 A, 2 Poles, 3 Wires, NEMA L5-15R, Commercial/Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 3/8 to 5/8 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite/Elastomer, Yellow, 1.85 in Dia x 4.62 in L
Additional Description: HUBW-HBL25W47A CONN, W/TIGHT, L5-15R, 15A, 125V L5-15R CONN
Catalog Description: Watertight Devices, Twist-Lock® Connector, 15A, 125V AC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L5-15R, Yellow
HBL25W47A Item Features
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
- Stainless steel hardware and corrosion-resistant connection points
- https://youtu.be/a9HxdV3I_20
HBL25W47A Standards
RoHS Compliant|UL 498|CSA Certified|UL ListedSKU #2305211Part Number #HBL25W47AUNSPSC39121421UPC00783585131320
Image provided may only be a representation of final product and may include optional equipment
